1500L used brewery equipment
- Oct 20, 2016
- 131
- fermenter
1500L used brewery equipment
Brief Introduction:
It is very important to choose a good equipment to start a brewery. Both new or used
micro brewing equipement can go on your business plan. Usually choosing one set of good quality used brewery systems do not need to take much time to wait for brewing. Otherwise if you buy one set of used brewery systems not only save your budget but also can directly into operation and start your business plan early for brewing your first beer. Also can create big value with lower cost. It is preferred by most customers who urgent to start the brewery.
We provide different kinds of used brewery systems, the capacity from 200L to 2000L.
The complete brewing system include grain miller, brewhouse, fermentation tank, glycol cooling system, controlling unit and CIP etc. to carry out the process of beer brewing. (from grain to beer).

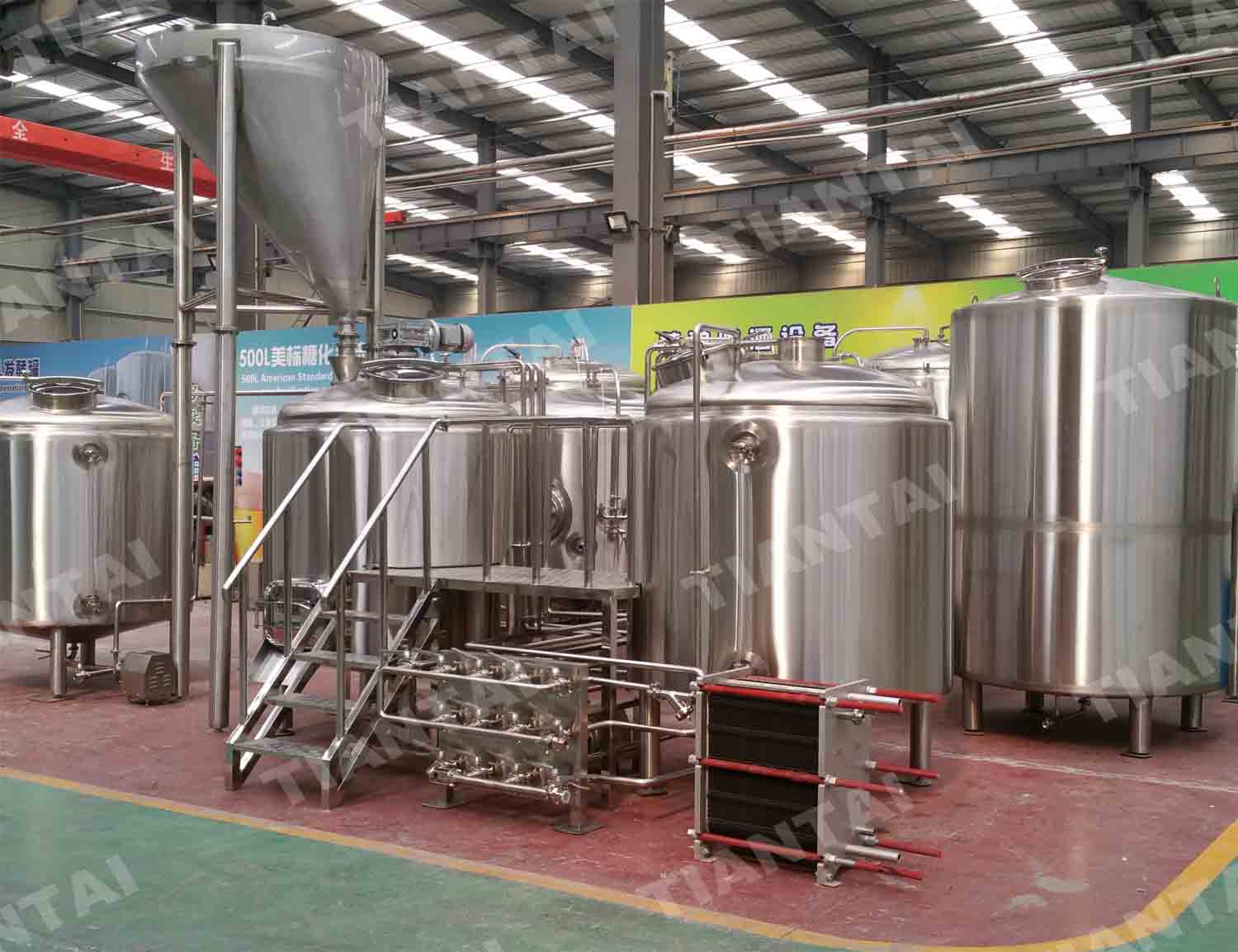

Quick overview of 1500L used micro brewing equipment
Main configuration of 1500L used micro brewing equipment
Brewhouse unit
1x500~800kg/hr gain miller
1x1500L mash&lauter tank
1x1500L kettle&whirlpool tank
1X1500L hot liquor tank
1x3M3/h wort pump
1x 15M2plate heat exchanger
1X30L yeast feeder
Fermentation unit
6-8pcs x3000L fermentation tanks：
Dished head and 60 degree cone bottom
Carbonation port and levle tube
Dry hopping port with solid end cap
Glycol cooling unit
2x8hp chillers
1x3000L glcyol cooling tank
1x3m3/hglycol water pump
Piping:PPR or Stainless steel
Controlling unit
PID brewhouse control panel, fermentation control panel
Electrical Parts: World wide brand CE/UL/ISO certificated
PLC control with touch screen
Contact us immediately to get latest specification and price of 1500L used micro brewing
equipment.
Brief Introduction:
It is very important to choose a good equipment to start a brewery. Both new or used
micro brewing equipement can go on your business plan. Usually choosing one set of good quality used brewery systems do not need to take much time to wait for brewing. Otherwise if you buy one set of used brewery systems not only save your budget but also can directly into operation and start your business plan early for brewing your first beer. Also can create big value with lower cost. It is preferred by most customers who urgent to start the brewery.
We provide different kinds of used brewery systems, the capacity from 200L to 2000L.
The complete brewing system include grain miller, brewhouse, fermentation tank, glycol cooling system, controlling unit and CIP etc. to carry out the process of beer brewing. (from grain to beer).
Quick overview of 1500L used micro brewing equipment
| Output/Brew | 1500L |
| Brew/day | 1-2 |
| Suggested fermenters: | 6-8pcs 3000L fermentation tanks |
| Output/Week | 9000L to 12000L beer per week based on different configuration |
| Electric Supply | 3phase/380(220, 415,440…)v/50 (60)Hz |
| Heating Source | Steam (Optional Direct fire/electric) |
| Area Request | >100M2 |
| Brewmaster | 1 |
| Mashing method | Decoction,infusion,multi-step infusion |
Main configuration of 1500L used micro brewing equipment
Brewhouse unit
1x500~800kg/hr gain miller
1x1500L mash&lauter tank
1x1500L kettle&whirlpool tank
1X1500L hot liquor tank
1x3M3/h wort pump
1x 15M2plate heat exchanger
1X30L yeast feeder
Fermentation unit
6-8pcs x3000L fermentation tanks：
Dished head and 60 degree cone bottom
Carbonation port and levle tube
Dry hopping port with solid end cap
Glycol cooling unit
2x8hp chillers
1x3000L glcyol cooling tank
1x3m3/hglycol water pump
Piping:PPR or Stainless steel
Controlling unit
PID brewhouse control panel, fermentation control panel
Electrical Parts: World wide brand CE/UL/ISO certificated
PLC control with touch screen
Contact us immediately to get latest specification and price of 1500L used micro brewing
equipment.
