Automatic 1000L Brewery System with customized size

  • Jun 01, 2023
  • 138
  • tiantai

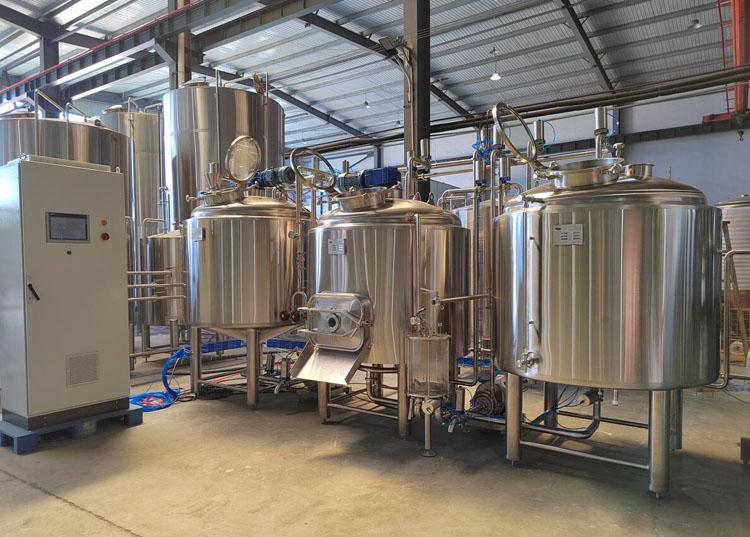

Recently, we just finished a 1000L brewery system. The basic configuration is 1000L 3-Vessel brewhouse with 8 sets 2000L fermenters. Please refer to following picture.

1000L brewery system,2000L fermenter,3-Vessel brewhouse,Automatic brewery equipment

1000L brewery system,2000L fermenter,3-Vessel brewhouse,Automatic brewery equipment

1000L brewery system,2000L fermenter,3-Vessel brewhouse,Automatic brewery equipment

1000L brewery system,2000L fermenter,3-Vessel brewhouse,Automatic brewery equipment

1000L brewery system,2000L fermenter,3-Vessel brewhouse,Automatic brewery equipment

1000L brewery system,2000L fermenter,3-Vessel brewhouse,Automatic brewery equipment

As you can see, there are two distinctive features in this 1000L brewery system. One is automatic control and another is customized size.

1.) Automatic control

*All of butterfly valves of brewhouse are pneumatic.
 The brewer can control valve on/off via control panel.

*Control panel is siemens PLC with touch screen.
  It supports to store various target temperature and time for grain mashing and beer fermenting.

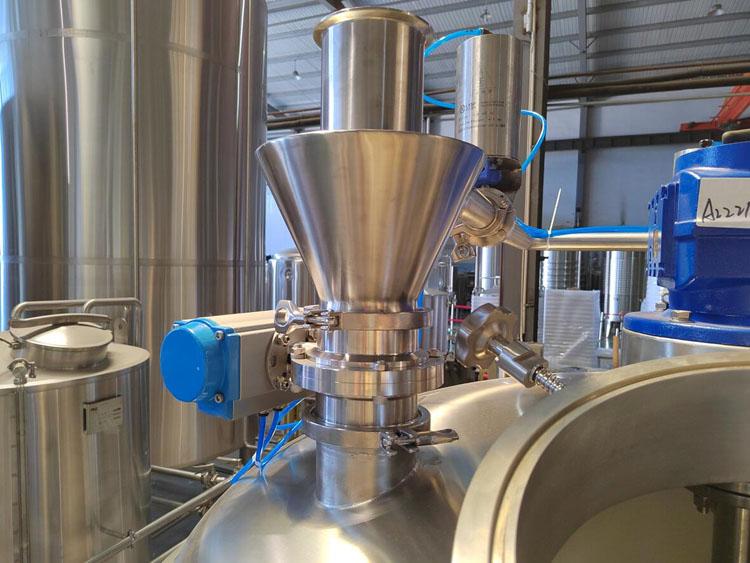

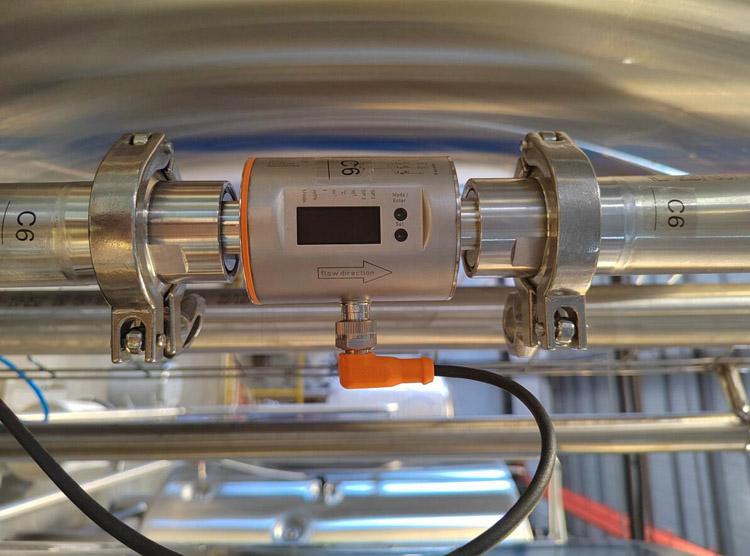

*Also, this system adopts German IFM flow meter and pneumatic flap valve in order to achieve automatic water flow monitor and malt pitching.

2.) Customized size

Both of ceiling height and floor area are limited.

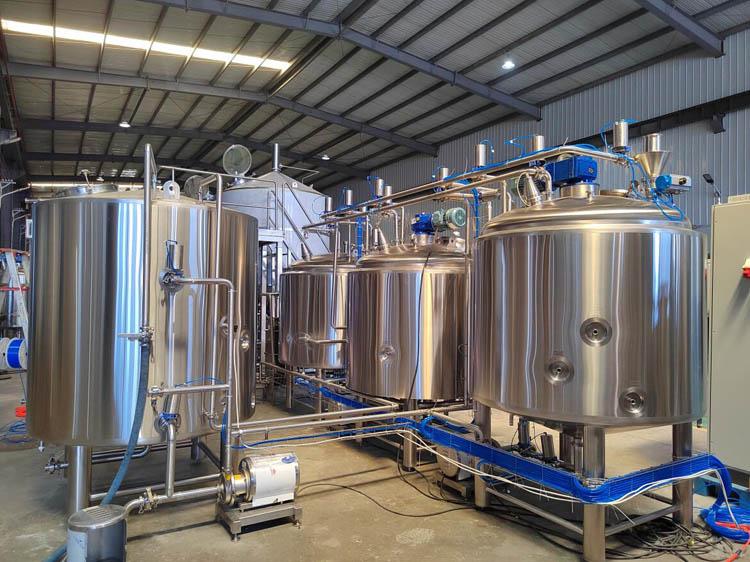

*Brewhouse is customized without working platform to save space.
  The brewer can reach top of tank via a portable step.

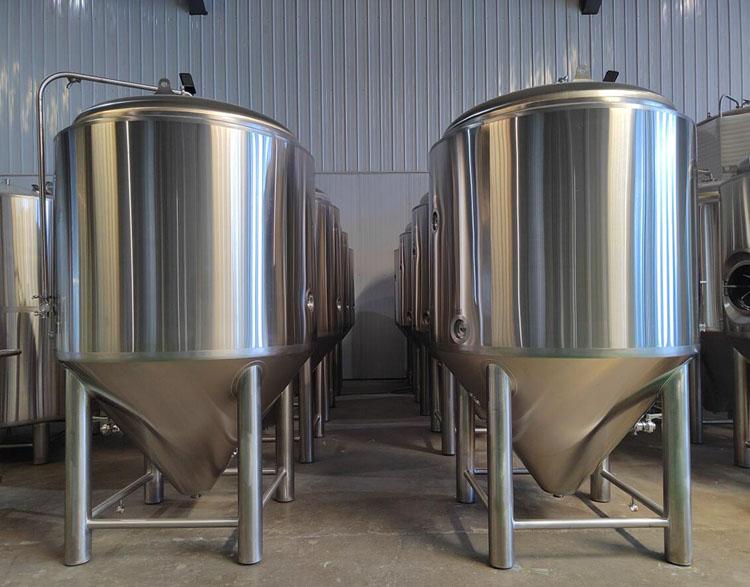

*2000L fermenter is customized to 75° cone bottom to reduce height.

Friends, is there any concern or limitation in your brewery project? If yes, please do not hesitate to talk with us. We can also make customized brewery proposal for you. Look forward to your inquiry.

Vicky Shao
Email: [email protected]
Sales manager in Tiantai Beer Equipment Co
