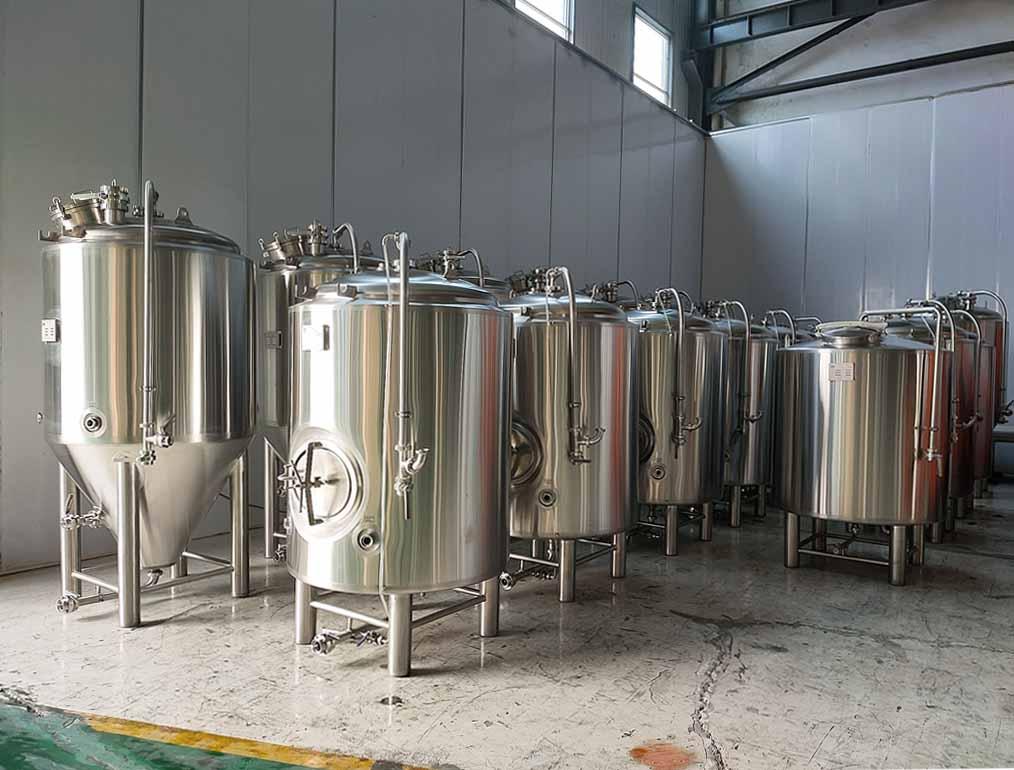

Bright beer tank in a micro brewery
- Jun 20, 2023
- 187
- tiantai
A Bright Tank is a dish-bottomed pressure-rated temperature-controlled tank used to hold beer in preparation for packaging. The design of a BBT generally consists of a torispherical top, cylindrical body and torispherical bottom. These are tanks working under pressure – so they are insulated and equipped with cooling jackets, safety fittings, CIP components and a manway for inside access.
Brite beer tanks can be manufactured in a variety of volumes and sizes, mainly depends on the capacity of the brewery, the brite tanks can be installed outside according to real situation.
It mainly has 2 functions. The first important function is that a BBT allows your product to relocate from the fermenter, allowing you to get another batch of wort fermenting. The second function is help to stabilize before packaging. As you know, fermenter needs to run at higher fermentation temperatures, but we can use bright tank at much lower temperature – to allow the beer to mature and carbonate to the correct levels.
Tiantai, we provide turnkey solutions on bright tank to meet almost any requirements you need.
Below are some specifcitions of our brite tank
- Brite Beer Tank with 10% head space minimum.
- Design pressure 30-45psi or 2-3bar.
- Interior shell: SUS304, thickness 3mm.
- Exterior shell: SUS304, thickness 2mm.
- Acid and passivated for tank inside
- Options of vertical or horizontal orientation.
- Dual ports for racking and discharge/CIP with butterfly valve and fittings.
- Side or Top man way optional
- Dimple glycol cooling jackets with glycol inlets and outlets.
- Polyurethane foam insulation, thickness 80mm on side and bottom.
- Fully welded exterior shell.
- 4 legs with levelling foot pads.
- CIP arm and spray ball.
- Pressure relief valve at 30-45psi as standard.
- Sanitary pressure gauge.
- Sample valve.
- Carbonation stone
If you are looking for bright beer tank, I am at your disposal anytime
Derrick
Sales Manager
[email protected]
Tiantai Beer Equipment
