In the world of distillation, every small design detail can have a big influence on the final flavour and character of your spirit. One of the most crucial yet often overlooked components is the helmet—the upper dome or head of the pot still, connecting the kettle to the condenser or column.
At Tiantai Equipment, we offer various helmet shapes tailored to different spirit styles and flavour profiles. Let’s explore how each shape works and what kind of spirit it helps create.
1. The Role of the Helmet in Distillation
The helmet acts as a reflux chamber, where alcohol vapour rises from the pot and partially condenses before passing into the condenser or column.
This process controls the balance between:
Reflux: returning heavier compounds (congeners) to the pot.
Purity: allowing lighter alcohol vapours to pass through.
In simple terms — the larger and higher the helmet, the more reflux occurs, resulting in cleaner and lighter spirits.
A smaller or shorter helmet means less reflux, leading to heavier and more aromatic spirits.
2. Common Helmet Shapes and Their Characteristics

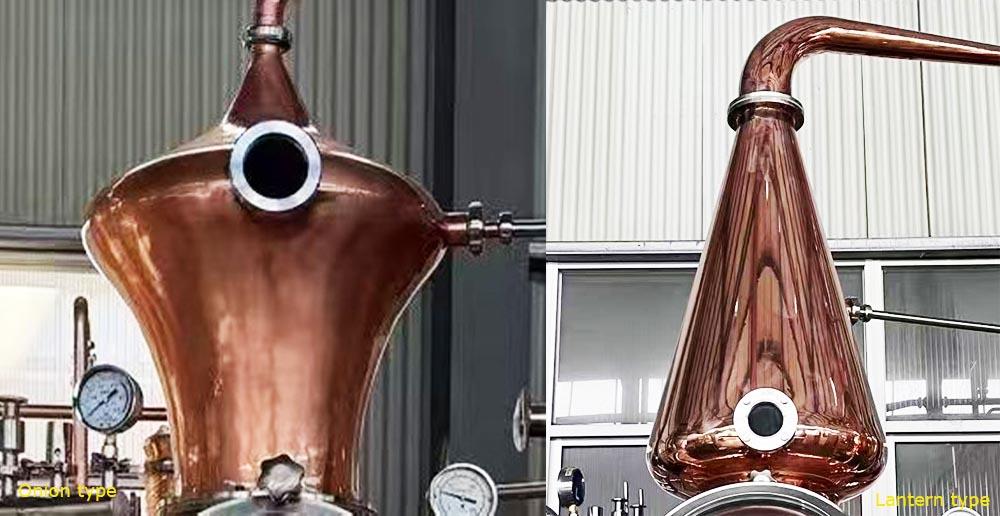

1) Onion-shaped Helmet (Classic Pot Still Design)
Appearance: Tall and bulbous, like an onion.
Function: Encourages high reflux due to its wide middle and narrow neck.
Resulting Spirit: Smooth, refined, and light in texture.
Ideal for:
**Whisky (especially Scotch malt whisky)
**Vodka (clean and neutral spirit)
**Light-style Baijiu
This is the most traditional and widely used design for achieving high-quality distillate purity.
2) Dome or Bell-shaped Helmet
Appearance: Shorter and more rounded dome shape.
Function: Moderate reflux, maintaining more congeners (flavour compounds).
Resulting Spirit: Balanced between purity and aroma; retains fruity or floral notes.
Ideal for:
**Rum
**Gin
**Medium-aroma Baijiu
This design offers an excellent compromise between lightness and flavour intensity.

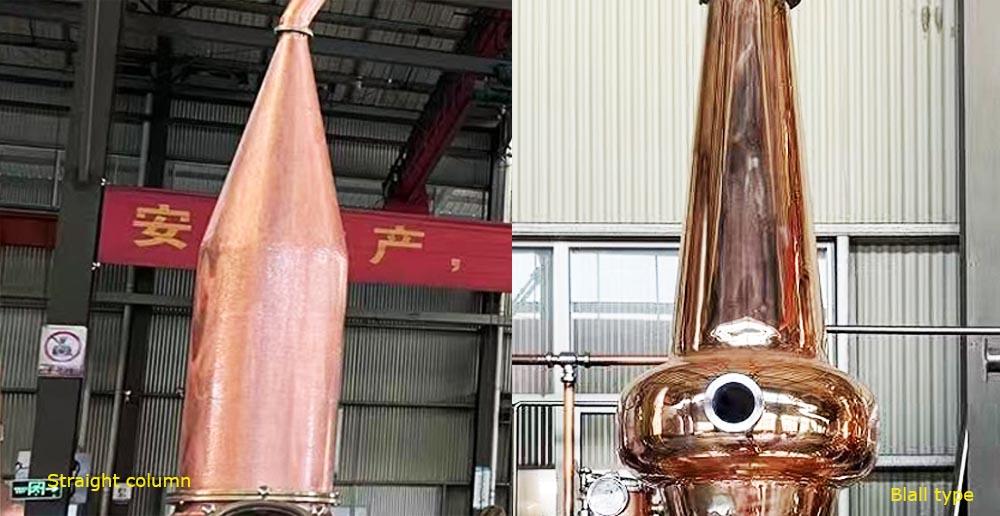

3) Straight Column-type Helmet
Appearance: Tall and cylindrical, often integrated with bubble plates or packing.
Function: Maximises reflux and purification, producing very high-proof distillate.
Resulting Spirit: Extremely clean, with minimal flavour carryover.
Ideal for:
**Vodka
**Neutral spirits
**Industrial-grade alcohol or base spirit production
When connected with multiple rectification plates, it ensures a stable alcohol level up to 96% ABV.
4) Chinese-style Flat or Wide Helmet
Appearance: Short and wide, allowing rapid vapour flow.
Function: Minimal reflux; retains more heavy aroma compounds.
Resulting Spirit: Full-bodied, strong aroma, with distinct grain character.
Ideal for:
**Strong-aroma Baijiu
**Rice liquor
**Fruit brandy or grain spirits with bold flavour
This design is often paired with copper material to enhance catalysis and aroma purity.
3. Influence of Helmet Design on Flavour
4. Material and Cooling Options
Most helmets are made of copper, due to its excellent thermal conductivity and ability to remove sulphur compounds during distillation.
For some modern systems, stainless steel with copper cladding is used to reduce maintenance while maintaining the desired catalytic effect.
Optional cooling water jackets can also be installed around the helmet to control reflux level more precisely.
5. Conclusion
Selecting the right helmet shape is not just a matter of aesthetics—it directly defines the spirit style and flavour profile.
At Tiantai Equipment, we design and manufacture customisable distillation systems that match your production goals—whether you want a light and elegant whisky, a fragrant Baijiu, or a rich, full-bodied rum.
