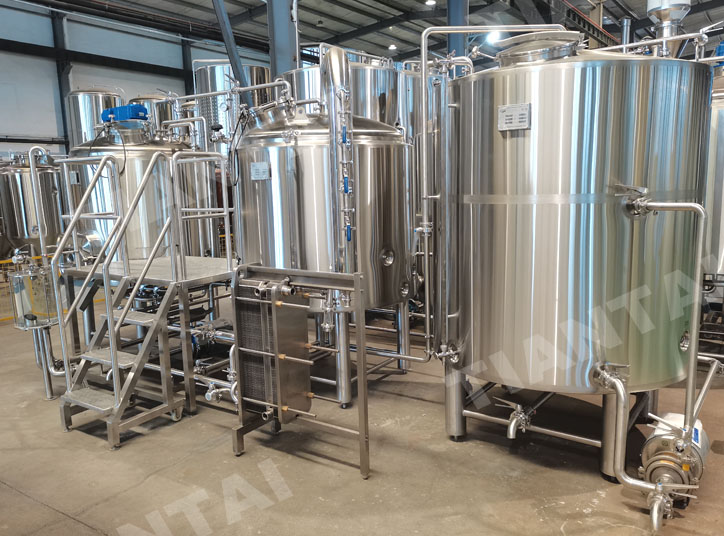

Complete 10HL Brewery System will be shipped to Italy
As you know, 10HL Brewery System is most common for microbrewery. It can be placed in brewpub directly for both brewing and displaying, which would not take too much space and do not have high request for ceiling height. It can also be a independent brewery to serve various brewpubs, bars and restaurants.
Recently, we will have a complete 10hl brewery system will be shipped to Itay. Its design might be able to bring some ideas to your brewery project.

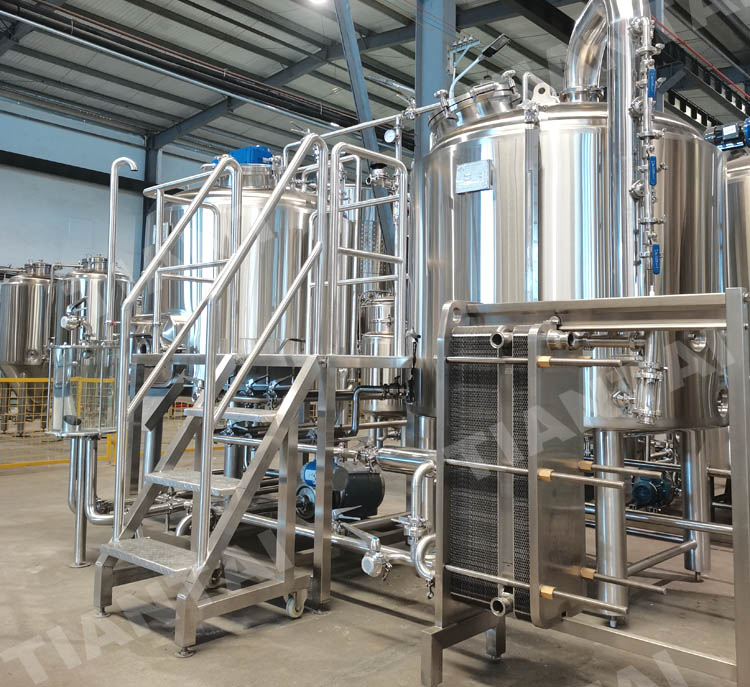

1.Brewhouse
Typical 2-Vessel brewhouse, Mash/Lauter tun + Kettle/Whirlpool tun. Both of them are fabricated with dimple plate for steam heating. Yon can do single infusion, step infusion, even decoction with special pipeline, very multifunctional.
When lautering, it might cause negative pressure (Vacuum) in lauter tun if pumping speed can not be controlled very well. In order to avoid this problem, we fit a 25L glass grant between mash/lauter tun and kettle/whirlpool tun. The wort after lautering would run into this grant firstly by Gravity, then be pumped from grant to Kettle/Whirlpool tun. It is tiny upgrade but makes brewing much more safe. At the same time, we add a flow meter between Mash/Lauter tun and Kettle/Whirlpool tun accordingly to customer’s special request. In this case, the brewer can monitor pumping speed better.

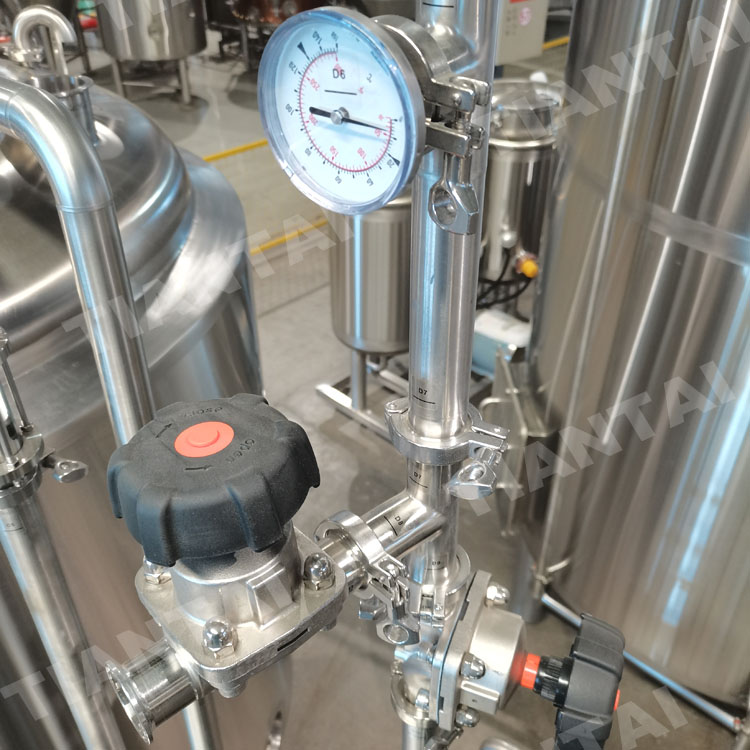

2.Mashing/Sparging water blending station
In craft beer brewing, temperature of mashing water and sparging water is very important for beer flavor. We fit diaphragm valve on hot water and city water pipeline separately so that the brewer can adjust mixing water temperature finely by checking bimetal thermometer.

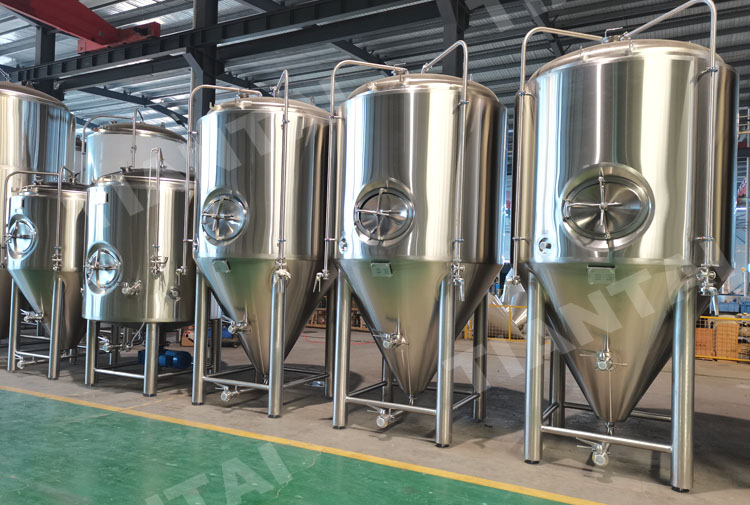

3.Fermentation Unit
Fermentation unit includes 1x1000L and 3x2000L fermentation unitanks. There is a special brite tank, which is used as Mixer tank for priming beer before bottling. For better mixing among beer, sugar and yeast, an agitator is fitted on bottom.
Hope you like, Friends! Any comments, feel free to talk with us ([email protected]).
Edited by Vicky
Sales manager in Tiantai Beer Equipment Company
