1200l Brew Pub Beer Making Machine

Brief introduction

Brew pub beer making machines is typically smaller than independent micro brewery equipment. We offer Pub beer making machine with the productivity of 500L (5 hl) to 2500L (25 hl) per brew. The red copper brewhouse is also the preferred choice for most brew pub. The fermentation tanks for brew pub is usually not large but with more numbers for serving more beer flavors on taps. Sometimes the serving tanks or kegs installed in walk-in cold room are also required behind the tap counter. We supply the beer making machine for a basic process to make beer from malt. A typical brewing process for brew pub includes milling, mashing, fermentation, maturing, cooling, controlling, cleaning, filling and beer serving.

Quick overview of 1200L Brew Pub Beer Making Machine

Output/Brew	1200L
Brew/day	1-2
Output/Week	1200-12000L/week based on different configuration
Electric Supply	3phase/380(220, 415,440…)v/50 (60)Hz
Heating Source	Steam (Optional Direct fire/electric)
Area Request	>70M2
Brewmaster	1
Mashing method	Decoction,infusion,multi-step infusion

Main configuration of 1200L Brew Pub Beer Making Machine

Main brewing system	Components	Main specification

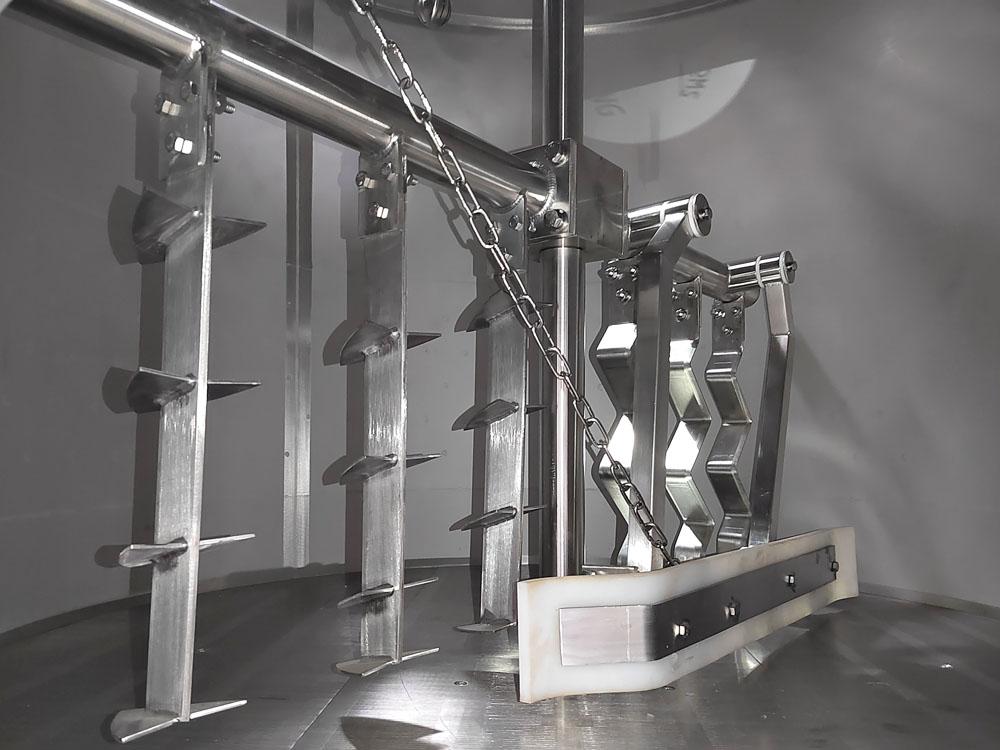

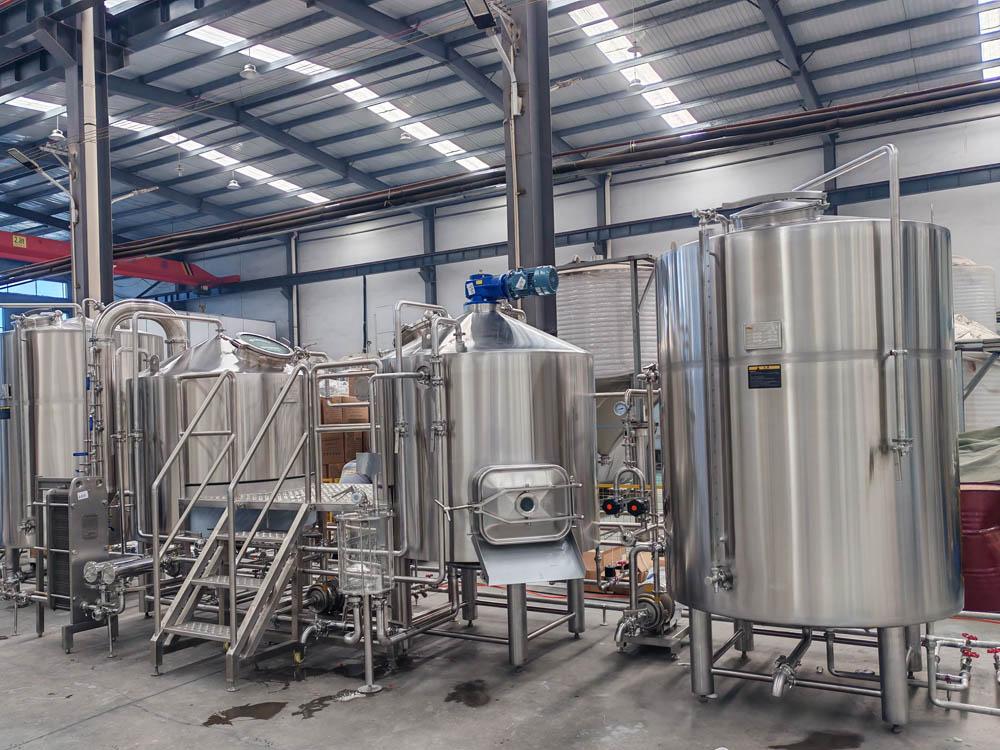

Brewhouse unit	Mash/lauter tun	1200L 25% head space, Steam heating with insulation False bottom, Rake&motor, Spent grain outlet CIP, sight glass. Tangential inlet.
	Kettle/Whirlpool tun	1200L 30% head space, Steam heating with insulation Steam condenser, Wort outlet and trub outlet, Tangential inlet.
	Hot Liquor Tank	1200L 15% head space, Steam heating with insulation CIP. Level gauge Hot water recycling port
	Wort pump	3T/hr, Sanitary
	Hot liquor pump	3T/hr, Sanitary
	Plate heat exchanger	10m2 Two stages Connected with wort aeration device Disassemble
	Work platform	Disassemble, Adjustable
	OPTIONAL	Wort grant Hopback Hopper Pneumatic valve Wort flow meter Sink Sterile air compressor
Fermentation unit	Fermentation tank	1200L/2400L 25% head space, Jacketed and insulated Conical bottom, Pressure valve, relief valve CO2 relief valve Coolant inlet and outlet Sample valve Side manway Top, Dry Hopping Port CIP connections Wort inlet and yeast outlet Racking arm Temperature and pressure gauges
Maturation/Storage (OPTIONL)	Bright beer tank	1200L/2400L 20% head space, Jacketed and insulated Dished head&bottom Pressure valve, relief valve Site Glass level Carbonation stone assembly Sample valve Side manway Fill/drainage port CIP connections Temperature and pressure gauges Jacketed and single wall tanks
Glycol cooling system	Glycol cooling tank	Thermowell Top manway CIP arm and spray ball 360 degree of coverage Thermowell
	Cold liquor tank (OPTIONAL)	Top manway CIP arm and spray ball 360 degree of coverage Visual level sight glass Cooling jackets
	Chiller	Second generation Freon R410A, R404A
	Glycol water pump and piping
Controlling unit	Brewhouse control panel	Temperature monitoring& controlling Pump on/off control VFD control
Controlling unit	Cellar control panel	Temperature monitoring& controlling More controllers reversing for expansion available
Cleaning unit	Alkali tank	100L Electric heating
	Sterile tank	100L
	Pump and piping

Optional items: Beer filter, Keg filling system, Bottle filling system
Steam boiler, Water filter, Kegs, Malt transfer (grain auger)
Customized requirement acceptable
