Ⅰ. Product Overview
Our 500L automatic CIP cleaning system is a complete‑in‑place cleaning solution specially developed for breweries, kombucha and beverage production lines. It eliminates the need for equipment disassembly during sanitation cycles. Equipped with caustic tank, acid tank, sterilization tank, sanitary circulation pump, Prominent dosing pump, full set of sanitary piping and pneumatic valve assembly, the unit adopts PLC‑HMI automatic control, integrated with Baumer conductivity meter, flow meter, flow switch and temperature transmitter. It realizes full‑automatic chemical dosing, heating, circulating cleaning and concentration monitoring, making your cleaning work simple, reliable and repeatable.
Ⅱ. Main Configuration

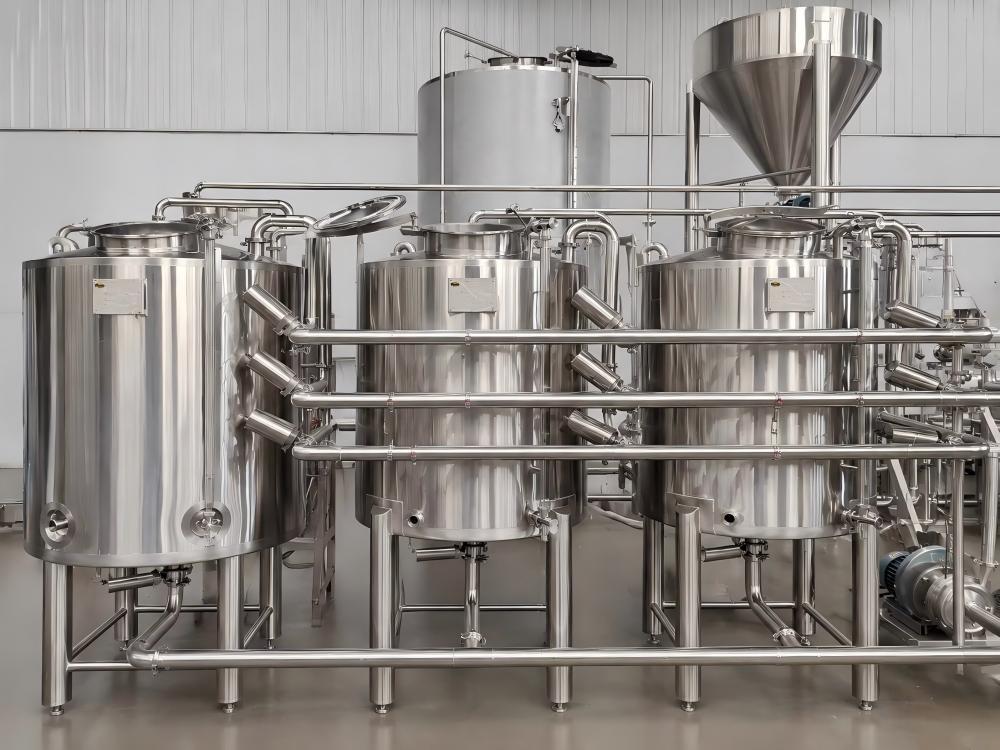

1. Three‑tank layout: caustic tank(double‑wall insulated), acid tank, sterilization tank
Ⅱ. Main Configuration
1. Three‑tank layout: caustic tank(double‑wall insulated), acid tank, sterilization tank
2. SUS304 sanitary construction, high‑grade internal polishing, no dead corners, full welding & strict leakage test
3. PLC+HMI control system with full pneumatic valve actuation, auto / manual mode switchable
4. Premium branded instruments: Prominent dosing pump, Baumer conductivity meter, flow meter, flow switch, temperature transmitter
5. Sanitary circulation pump with VFD speed regulation, food‑grade sealing material
6. Complete sanitary piping & pneumatic butterfly valve set, compliant with international sanitary standards
7. Recipe‑driven one‑key CIP cleaning cycle, multiple interlock protection & alarm functions
Ⅲ. Application Scope
This CIP cleaning system features strong universality and is widely applicable for hygienic cleaning of various production equipment:
1. Beverage Industry: In-place cleaning of production pipelines, fermentation tanks and storage tanks for beer, juice, dairy drinks and kombucha production lines
2. Food Industry: Circulating cleaning of reaction tanks and conveying pipelines for sauce, dairy products and other liquid food production
3. Pharmacy & Cosmetic Industry: Sanitary cleaning of liquid medicine tanks, cosmetic mixing tanks and sterile pipelines
4. General Process Equipment: Integrated CIP cleaning for plate heat exchangers, filters, transfer pumps and closed process pipeline systems
Ⅳ. Technical Parameters
.jpg)
.jpg)
Ⅴ. Product Advantages
2. High-end Brand Components, High Cleaning Precision
3. Premium Sanitary Craft, No Hygienic Dead Corners
4. Independent 3-Tank Design, No Cross Contamination
5. Stable Operation & Multi-safety Protection
6. Customizable Design & Strong Adaptability
Ⅳ. Technical Parameters
| Item | Technical Specification |
| Model | 500L Automatic 3-Tank CIP Cleaning System |
| Single Tank Volume | 500L |
| Tank Material | SUS304 Sanitary Stainless Steel |
| Control Mode | PLC Automatic Control + Pneumatic Valve Switching |
| Core Components | Prominent Dosing Pump, Baumer Conductivity Meter, Flow Meter, Flow Switch, Temperature Transmitter |
| Cleaning Mode | Full-automatic Circulating Cleaning / Manual Auxiliary Cleaning (Switchable) |
| Heating Method | Steam Heating (Electric Heating Customizable) |
| Circulation Pump | Sanitary Centrifugal Pump with VFD Speed Regulation |
| Tank Craft | Dead-corner-free Mirror Polishing, Pickling & Passivation, Full TIG Welding, Strict Leakage Test |
| Applicable Scenarios | Overall CIP Cleaning for Medium and Small-scale Hygienic Production Lines |
| Working Pressure | Atmospheric Pressure |
Ⅴ. Product Advantages
1. Intelligent Fully Automatic Operation, Labor-saving
Equipped with PLC+HMI intelligent control system and full pneumatic valve assembly, the system realizes automatic valve switching and unmanned operation. One-click start enables automatic completion of dosing, heating, circulation, monitoring and shutdown, greatly reducing manual operation costs and improving cleaning efficiency.
2. High-end Brand Components, High Cleaning Precision
Adopts Prominent precision dosing pump and Baumer high-accuracy conductivity meter, with real-time monitoring of flow rate and temperature. It accurately controls cleaning solution concentration, temperature and flow, effectively avoiding unqualified cleaning and residual pollution, ensuring consistent and reliable cleaning results.
3. Premium Sanitary Craft, No Hygienic Dead Corners
The whole machine is made of high-quality SUS304 stainless steel with internal high-precision polishing and acid passivation treatment. The pipeline and tank structure are free of dead corners and scale accumulation, fully complying with international food-grade sanitary standards and meeting strict hygienic requirements for sterile production.
4. Independent 3-Tank Design, No Cross Contamination
Separated caustic tank, acid tank and sterilization tank with independent functional division prevent cross contamination of different cleaning agents. The standardized cleaning process fully conforms to GMP specifications for food and beverage production.
5. Stable Operation & Multi-safety Protection
Built with multiple interlock protection functions including liquid level linkage, over-temperature protection, flow abnormality alarm and concentration early warning. The equipment operates stably with low failure rate, suitable for long-term and continuous industrial production conditions.
6. Customizable Design & Strong Adaptability
We provide personalized non-standard customization services according to customers’ on-site conditions, including heating mode, pipeline layout and cleaning program settings, to perfectly match different production line processes and site sizes.
Welcome to inquire for detailed parameters, customized solutions and competitive quotation. We provide professional one-stop CIP system configuration services for global customers.
Welcome to inquire for detailed parameters, customized solutions and competitive quotation. We provide professional one-stop CIP system configuration services for global customers.
