4BBL Stainless Steel Conical Fermentation Tank
- Dec 19, 2025
- 191
- tiantai

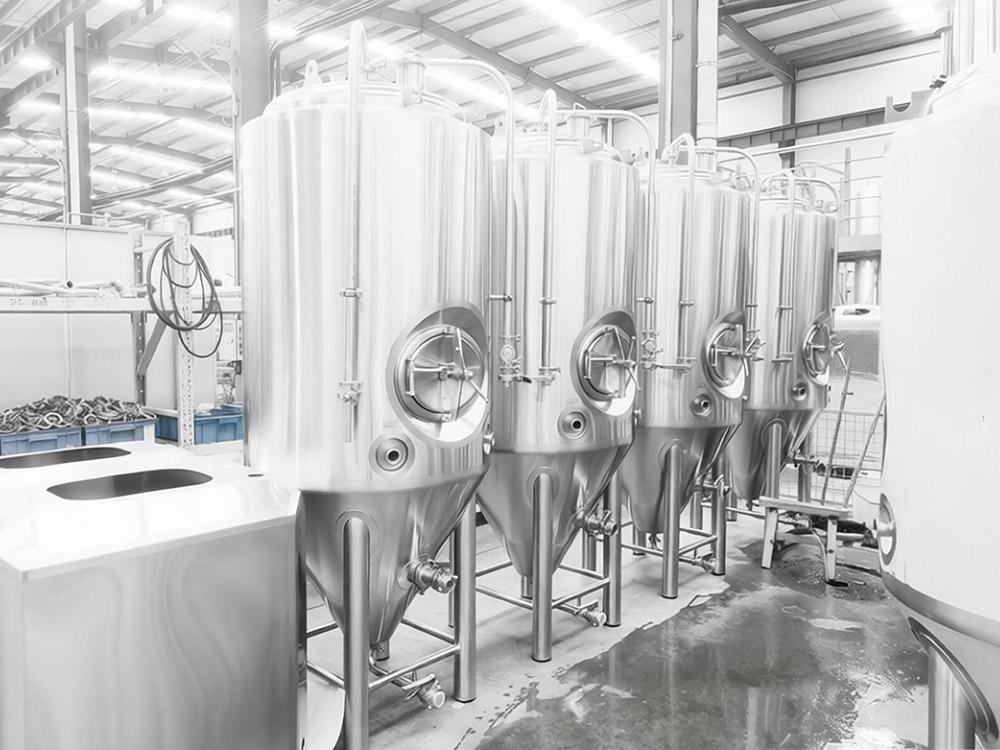

The 4BBL Stainless Steel Conical Fermentation Tank (Unitank) is designed for professional craft breweries and pilot brewing systems. Built with SUS304 stainless steel, sanitary polishing, and heavy-duty PU insulation, this fermenter ensures excellent durability, hygiene, and temperature control. With a 60° conical bottom, it allows efficient yeast collection and beer clarification. The tank is equipped with glycol cooling jackets on both the side wall and cone, making it ideal for precise fermentation and maturation processes. This 400L/4BBL fermenter is especially suitable for use with a 200L or 400L brewhouse, providing flexible capacity planning for small-scale commercial breweries, brewpubs, or pilot projects.

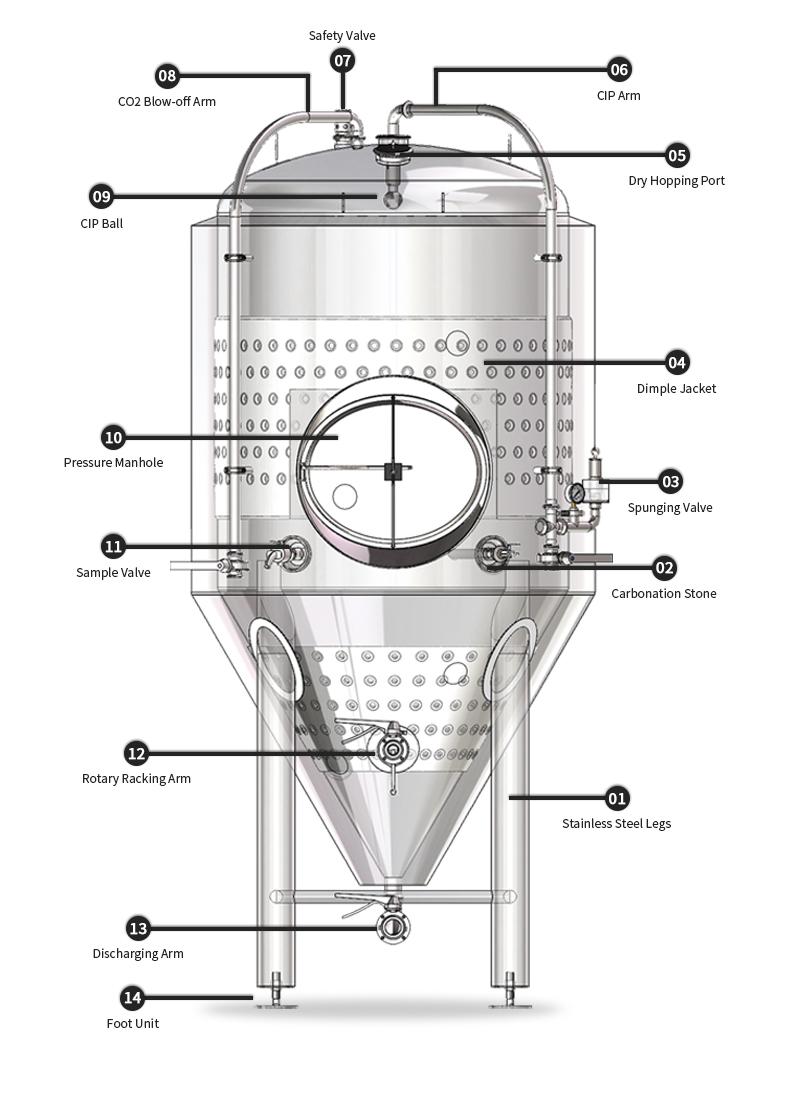

I. Features
-400L4BBL capacity with +25% headspace
-High quality SUS304 stainless steel construction (optional SUS316L)
-Conical bottom (60°) for efficient yeast collection
-Heavy-duty 80mm PU insulation for stable temperature control
-Dimple cooling jackets on side wall and cone, glycol -5℃

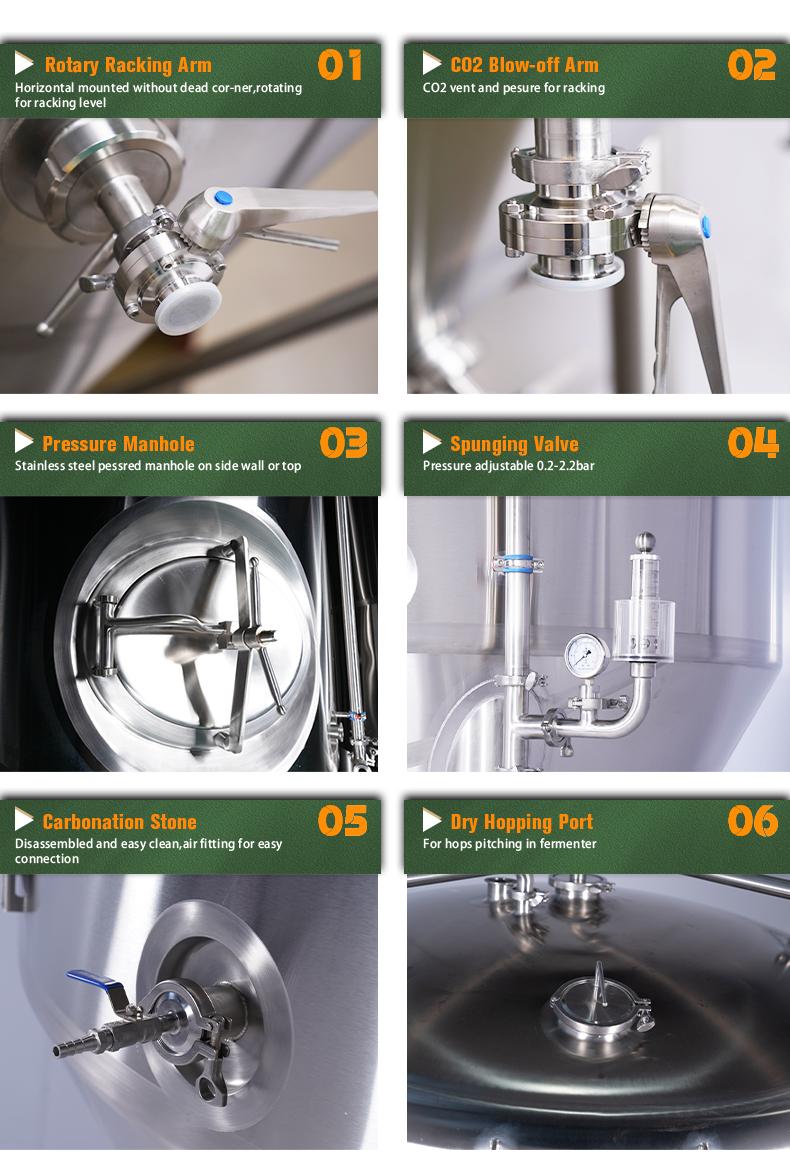

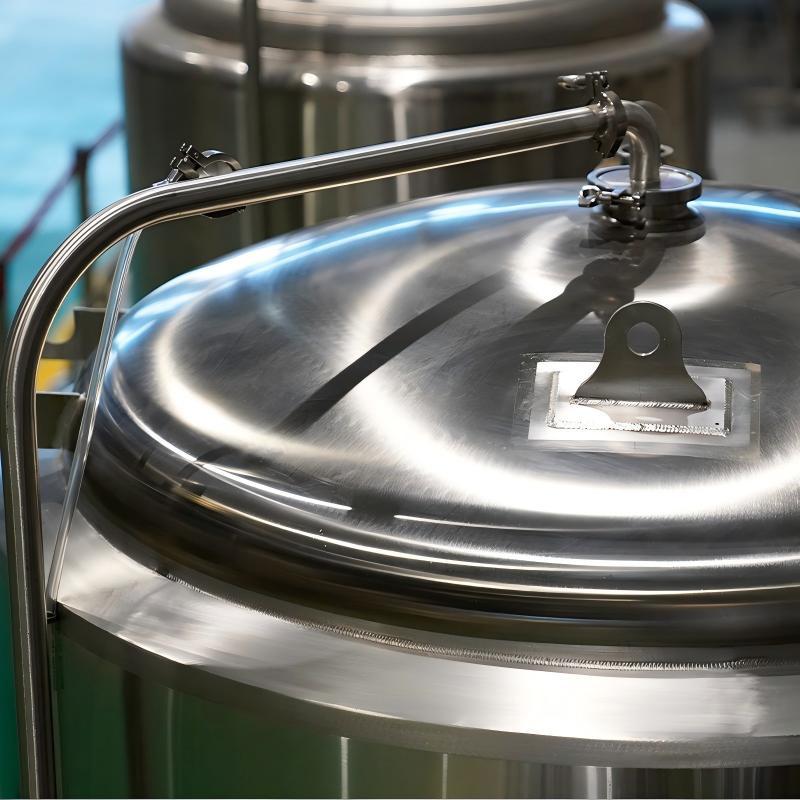

-Sanitary top manway with pressured door
-Rotary 360° CIP spray ball and complete CIP arm system
-Pressure relief valve, sampling valve, and racking arm included
-Interior polished to Ra 0.2–0.4 μm, hygienic and easy to clean
-Compatible with 200L and 400L brewhouse systems
II. Specifications
III. Our Service
II. Specifications
| Item | Specification |
| Tank Capacity | 4BBL (+25% Headspace) |
| Dimension | Φ960 × 2130 mm (Customizable) |
| Material | SUS304 Stainless Steel (316L optional) |
| Interior Thickness | 3 mm |
| Exterior Thickness | 2 mm |
| Interior Finish | 0.2–0.4 μm, Pickled & Passivated |
| Exterior Finish | Brushed / 2B / Mirror Optional |
| Insulation | PU, 80 mm |
| Cooling Jacket | Dimple Plate, Side & Cone |
| Working Pressure | ≤ 2 bar (30 psi) |
III. Our Service
Tiantai Beer Equipment, professional beer equipment manufacturer and service provider. We provide customized, one-stop service, project planning and design services, free consultation services before, during and after sale.
-Free consultation service before, during, and after sales.
-Project planning and design services.
-Management of equipments' long distance shipping from seller's factory to named port or station by buyer.
-Training of equipment maintenance and operating personally.
-Built-in advanced temperature control
-The tank body is well sealed
-Over 20 years of industry experience
Contact us for:
-A Detailed Project Quotation
-Factory Layout Planning Support
-Technical Specifications Sheet
