3000BPH Tunnel Pasteurizer
- Apr 10, 2026
- 112
- tiantai

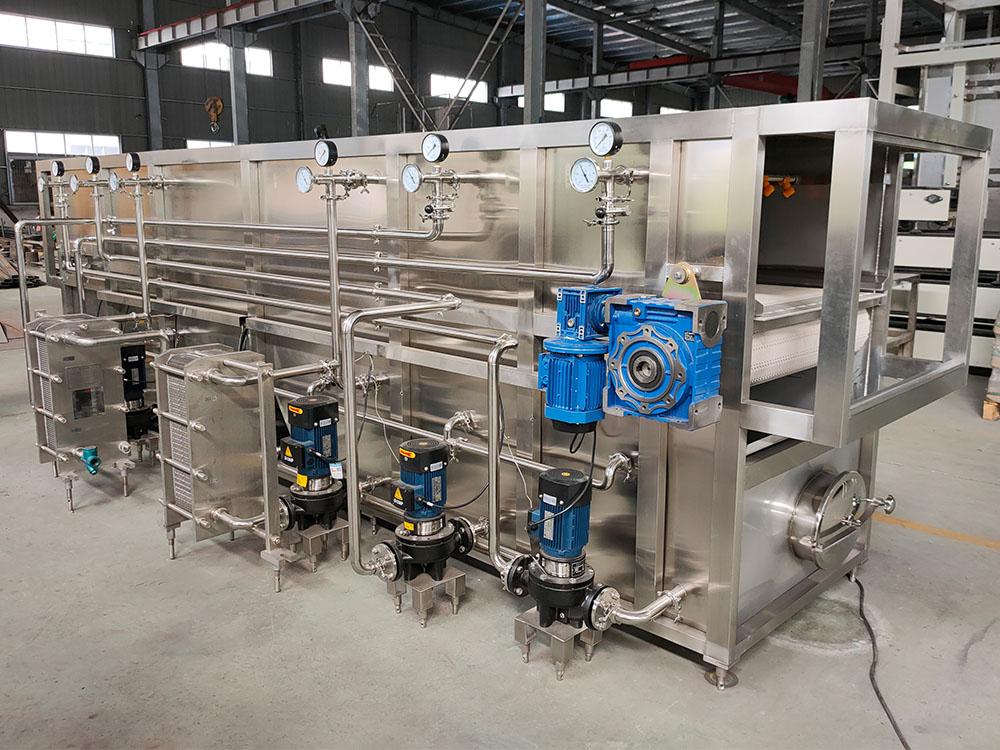

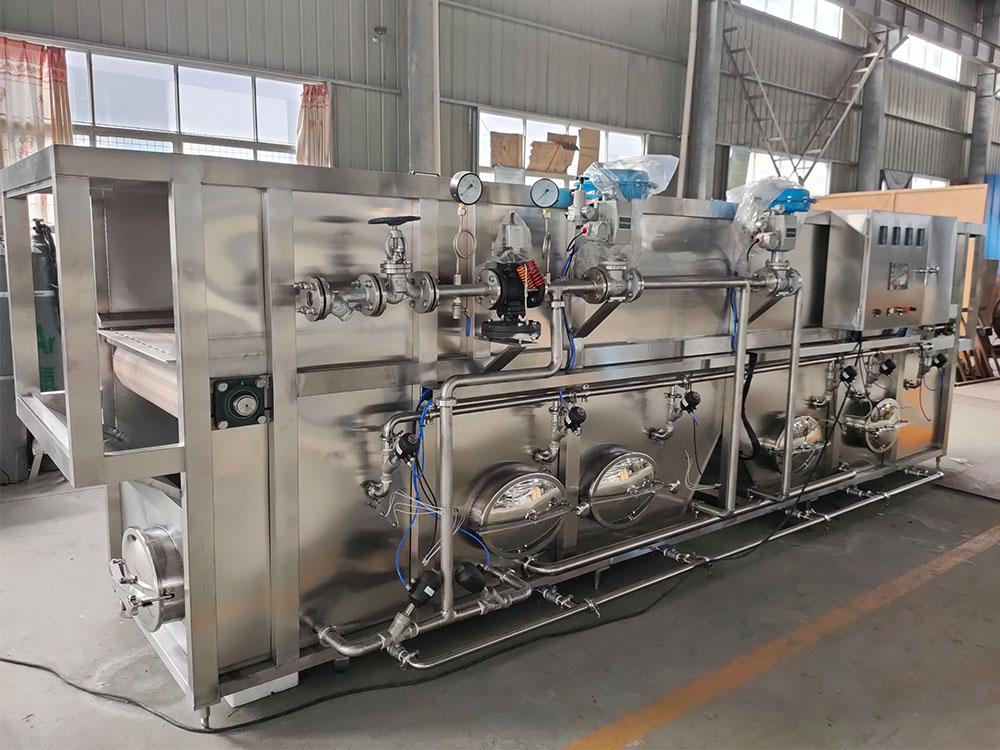

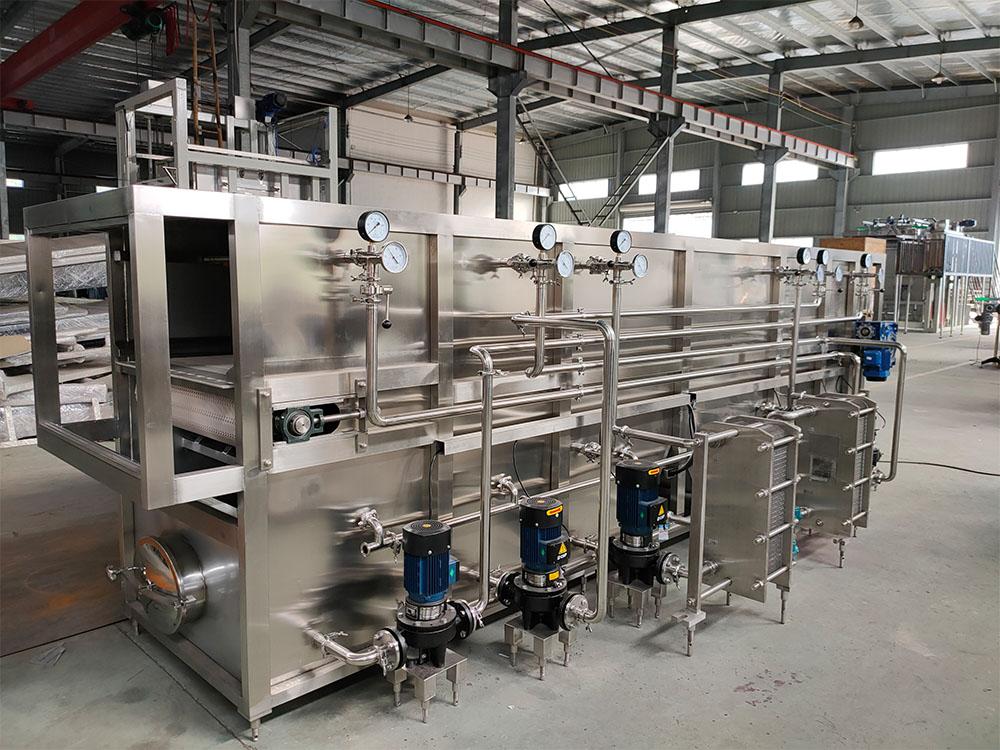

General Introduction of Tunnel Pasteurizer
The sterilization, temperature maintain and cooling tunnel is a pasteurization equipment specially designed for filled or packaged products such as dairy, juice, beverages, beer, food, medicines etc in a brewery. It is an ideal equipment for extending the shelf life of materials through sterilization, insulation, and cooling, especially the necessary secondary sterilization equipment for automated production lines. According to the different process requirements of users for different products, the sterilization process can be customized according to real demands. Corresponding high-precision automatic control systems can be configured according to user requirements.
General Performance of Tunnel Pasteurizer
- The equipment rack is made entirely of stainless steel, with compact overall structure and hygienic and beautiful appearance;
- High-quality plastic mesh belt chain plates which can work at high temperatures of 100°C for a long time;

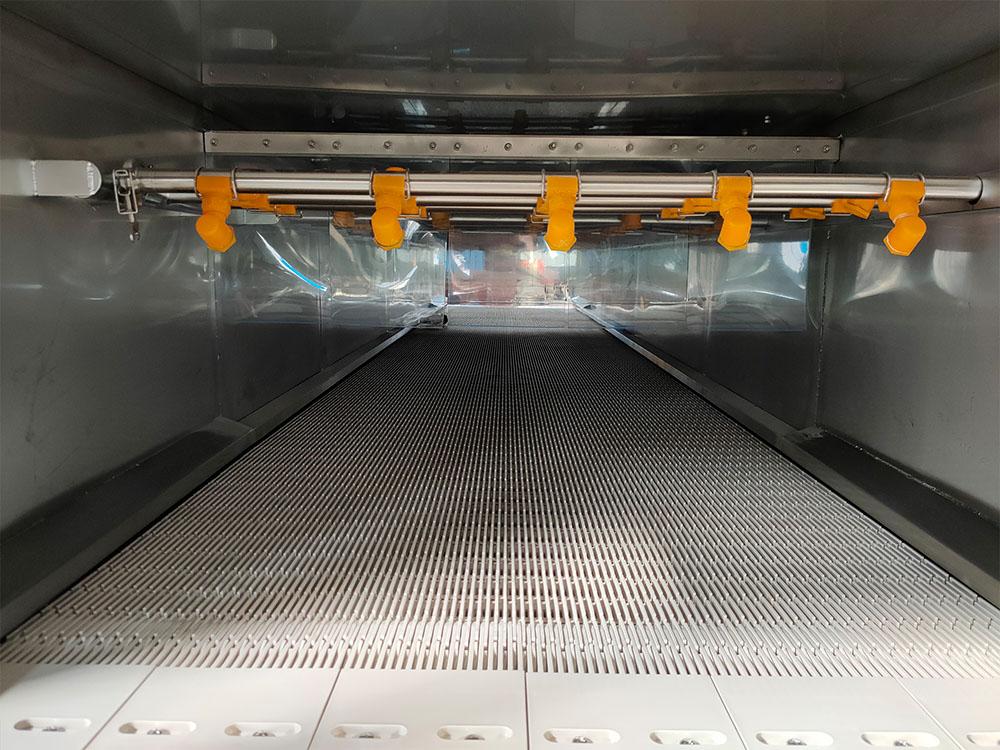

- Solid conical wide-angle nozzle, uniform and stable flow distribution, constant temperature field;
- Comprehensive utilization of various energy and heat recovery technologies, energy saving and environmental protection;
- Temperature sensor Pt 100 has high measurement accuracy, up to ±0.5℃;
- Multiple process combinations, reasonable technology, and can handle a variety of materials;
- The sterilization temperature is controlled by PLC produced by Japan's Mitsubishi Company and Taiwan's touch screen.
- The total processing time is controlled by frequency conversion and can be adjusted according to the production process;
- For non-circular PP bottles, plastic bags, roof cartons, glass bottles, cans and other products, an automatic feeding and discharging mechanism is configured to make the connection with the automated conveying production line smooth; the entire line is smoother;
- Can provide users with thermal distribution testing services, using expert systems to monitor temperature changes during the entire production process online.
Technical specifications of Tunnel Pasteurizer
Tiantai, provides turnkey soutions on brewery equipment. If you are planning to start your brewing adventure, contact us immediately to get your proposal.
The sterilization, temperature maintain and cooling tunnel is a pasteurization equipment specially designed for filled or packaged products such as dairy, juice, beverages, beer, food, medicines etc in a brewery. It is an ideal equipment for extending the shelf life of materials through sterilization, insulation, and cooling, especially the necessary secondary sterilization equipment for automated production lines. According to the different process requirements of users for different products, the sterilization process can be customized according to real demands. Corresponding high-precision automatic control systems can be configured according to user requirements.
General Performance of Tunnel Pasteurizer
- The equipment rack is made entirely of stainless steel, with compact overall structure and hygienic and beautiful appearance;
- High-quality plastic mesh belt chain plates which can work at high temperatures of 100°C for a long time;
- Solid conical wide-angle nozzle, uniform and stable flow distribution, constant temperature field;
- Comprehensive utilization of various energy and heat recovery technologies, energy saving and environmental protection;
- Temperature sensor Pt 100 has high measurement accuracy, up to ±0.5℃;
- Multiple process combinations, reasonable technology, and can handle a variety of materials;
- The sterilization temperature is controlled by PLC produced by Japan's Mitsubishi Company and Taiwan's touch screen.
- The total processing time is controlled by frequency conversion and can be adjusted according to the production process;
- For non-circular PP bottles, plastic bags, roof cartons, glass bottles, cans and other products, an automatic feeding and discharging mechanism is configured to make the connection with the automated conveying production line smooth; the entire line is smoother;
- Can provide users with thermal distribution testing services, using expert systems to monitor temperature changes during the entire production process online.
Technical specifications of Tunnel Pasteurizer
| Capacity | 3000 BPH |
| Bottle Volume | 500ml |
| Inlet bottle temperature | 2℃ -5℃ |
| Outlet bottle temperature | 30℃-35℃ |
| Sterilization temperature | 63℃ adjustable |
| Temperature-controlled precision | ±1℃ |
| Temperature control zone | 8 stage |
| Conveyor speed | 110-553mm/min |
| Sterilization length | 4800mm |
| Sterilization time | 17 minutes adjustable |
| Total Sterilization time | 42min |
| Sterilization effective width | 1000mm |
| Sterilization inner length | 11000mm |
| Using steam pressure | 0.2-0.4mpa 500kg/hr |
| Water consumption | 1m3/hr |
| Material | machine, belt and nozzle SUS304, thickness 2mm |
| Control System | PLC |
| Dimensions(L×W×H) | 12000×2000×1700mm |
Tiantai, provides turnkey soutions on brewery equipment. If you are planning to start your brewing adventure, contact us immediately to get your proposal.
