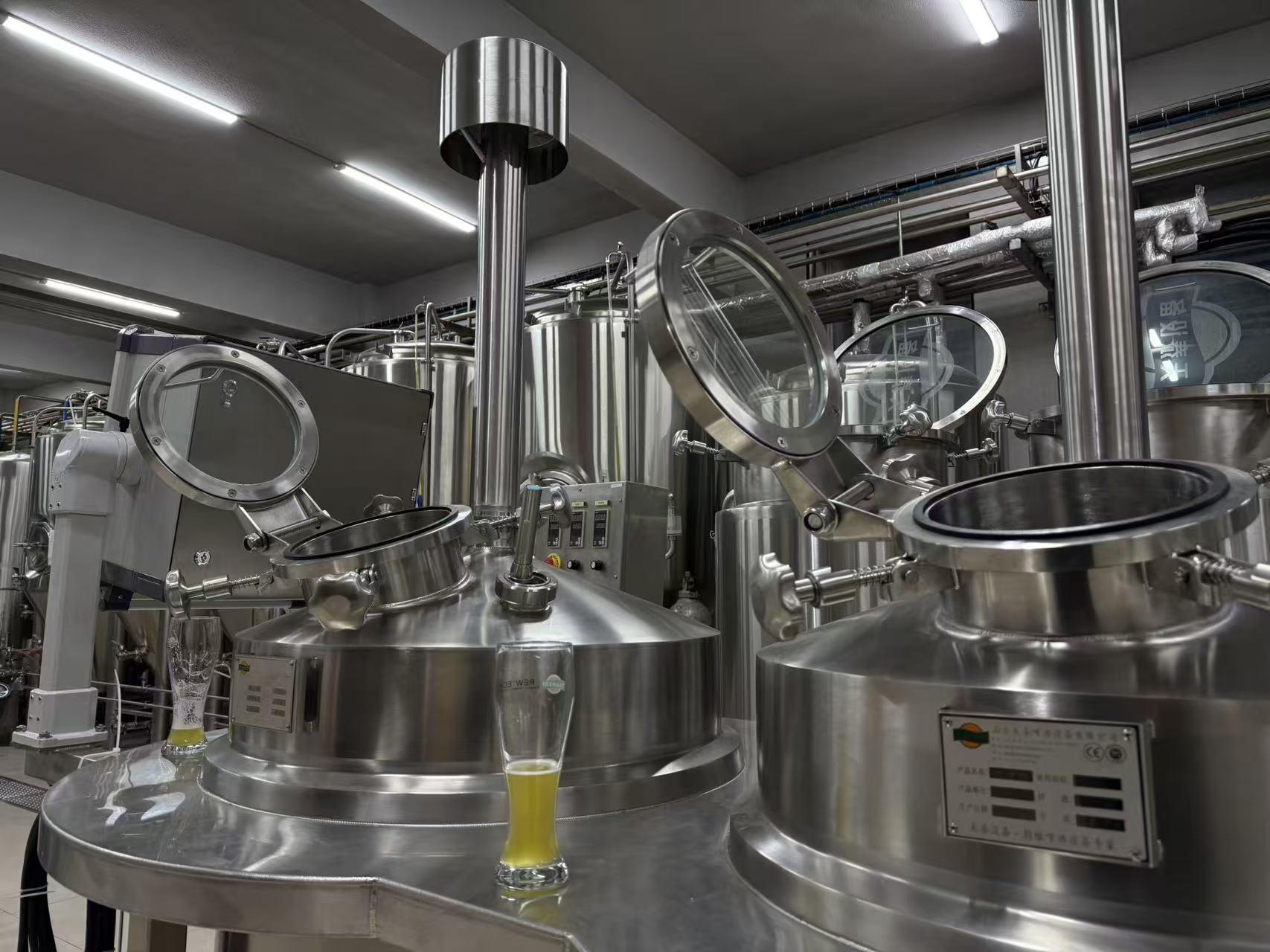

100L High-Spec Automatic 4-Vessel Brewhouse
- Dec 20, 2025
- 88
- tiantai
This 100L brewhouse is a high-spec configuration designed for brewers who want more than a basic nano system.
Compared with standard 100L setups, this system integrates professional brewing features normally seen on larger brewhouses, making it ideal for pilot brewing, recipe development, and small commercial production.
The system includes separate mash tun, lauter tun, kettle, and whirlpool, allowing precise process control at every stage. Unlike typical 100L systems, the mash tun is equipped with an agitator, and the lauter tun features a rake / plough system, which significantly improves mash efficiency, lautering performance, and repeatability.
Steam heating with full vessel insulation ensures stable thermal performance, while the PLC control system offers intuitive operation and consistent results.
This setup is especially suitable for breweries that plan to scale recipes up in the future, as the process logic closely matches that of larger commercial brewhouses.
If you are looking for a compact system that behaves like a “small professional brewhouse” rather than a simple test unit, this configuration is worth a closer look.
Interested in this 100L high-spec brewhouse? Feel free to contact us for layout drawings, customization options, or a detailed quotation.
Compared with standard 100L setups, this system integrates professional brewing features normally seen on larger brewhouses, making it ideal for pilot brewing, recipe development, and small commercial production.
The system includes separate mash tun, lauter tun, kettle, and whirlpool, allowing precise process control at every stage. Unlike typical 100L systems, the mash tun is equipped with an agitator, and the lauter tun features a rake / plough system, which significantly improves mash efficiency, lautering performance, and repeatability.
Steam heating with full vessel insulation ensures stable thermal performance, while the PLC control system offers intuitive operation and consistent results.
This setup is especially suitable for breweries that plan to scale recipes up in the future, as the process logic closely matches that of larger commercial brewhouses.
If you are looking for a compact system that behaves like a “small professional brewhouse” rather than a simple test unit, this configuration is worth a closer look.
| Item | Specification |

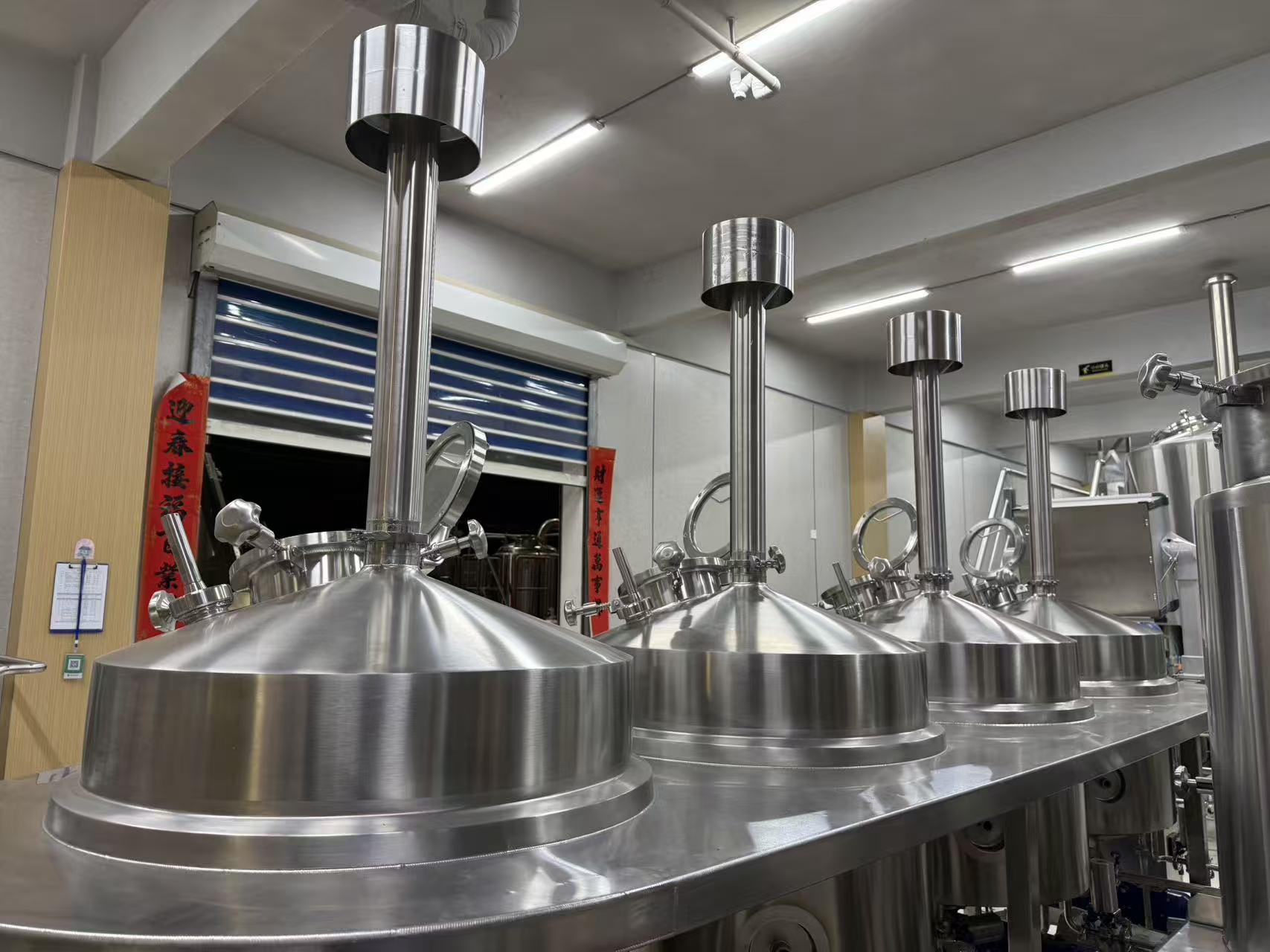

| System Type | 4-vessel brewhouse (Mash / Lauter / Kettle / Whirlpool) |
| Effective Batch Size | 100 L |
| Heating Method | Steam heated (external boiler by customer) |
| Material | Food-grade Stainless Steel 304 |
| Insulation | Yes, fully insulated vessels |

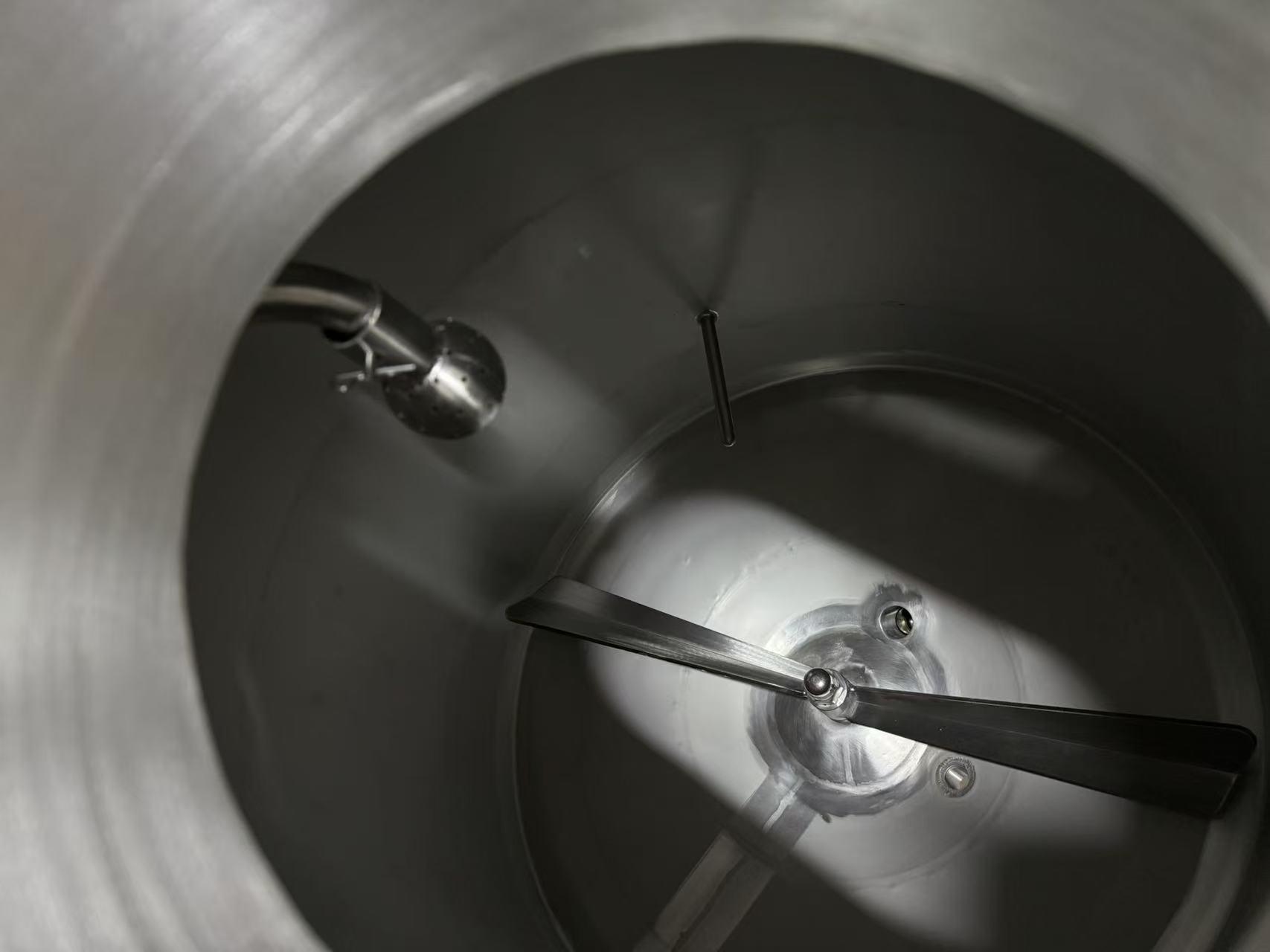

| Mash Tun | With agitator (stirring system) + steam jacket |

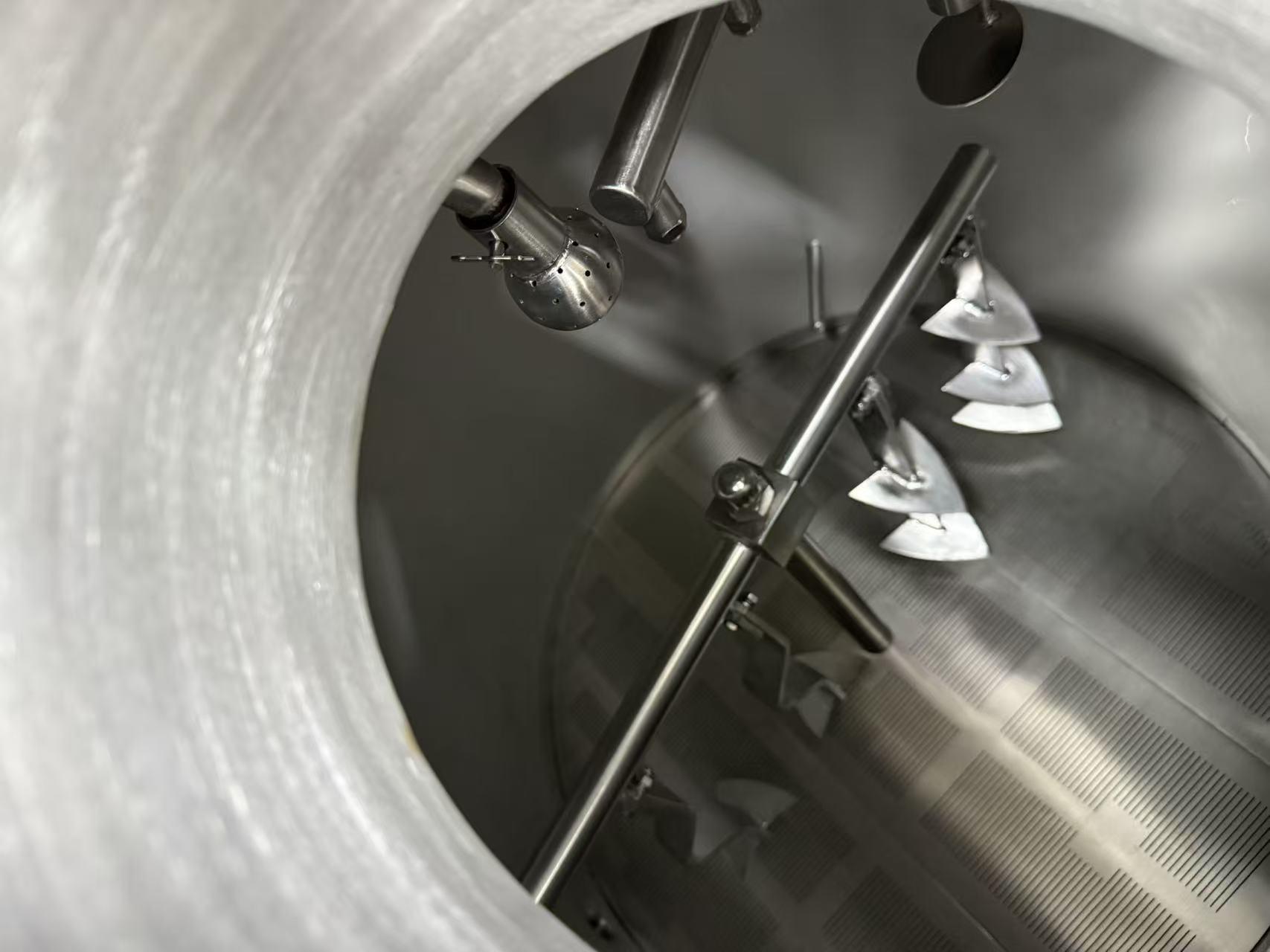

| Lauter Tun | With rake / plough system + false bottom |
| Kettle | Steam heated, insulated |
| Whirlpool | Dedicated whirlpool with tangential inlet |
| Control | PLC control with touchscreen |

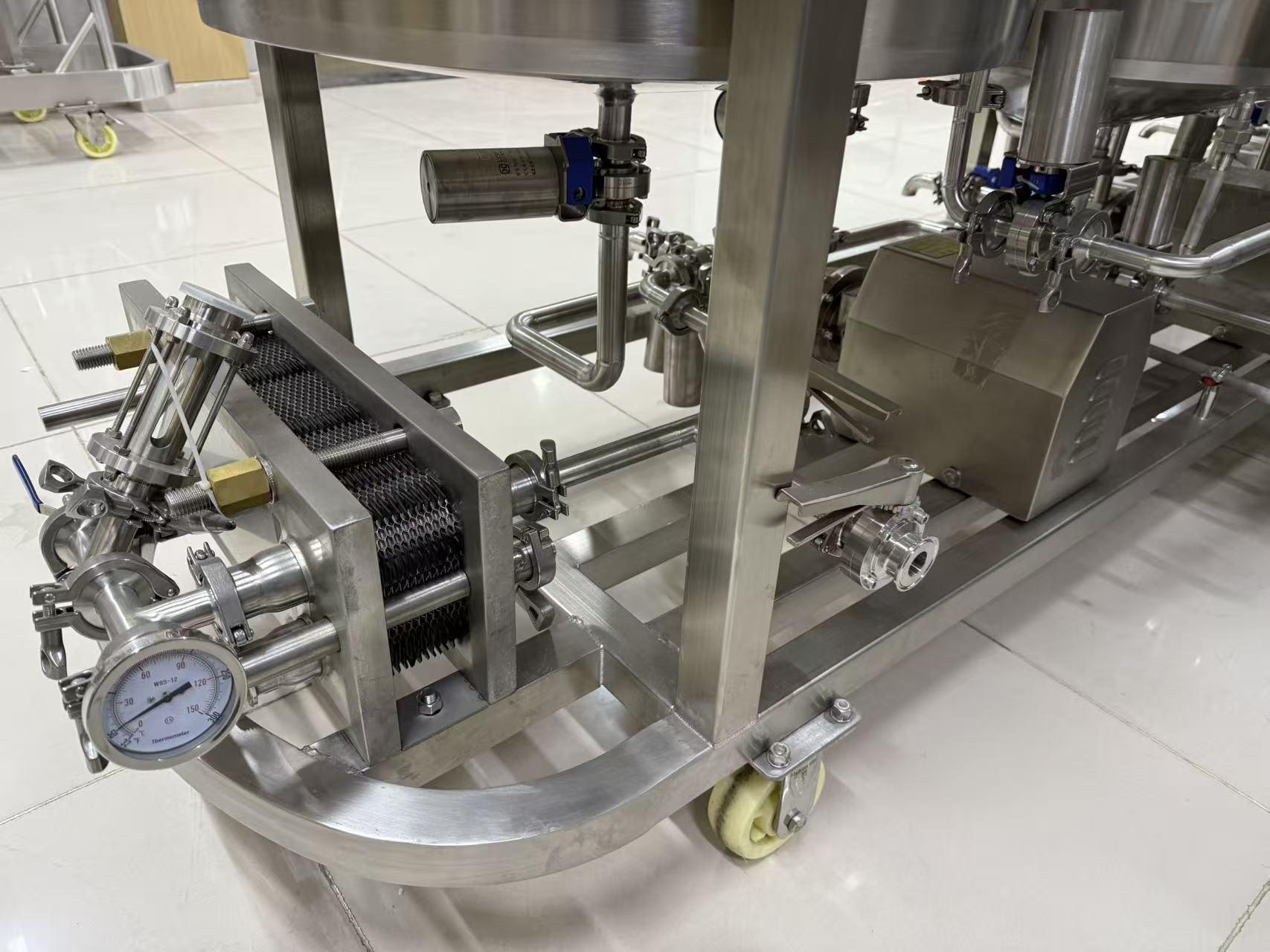

| Pumps | Sanitary centrifugal pumps |

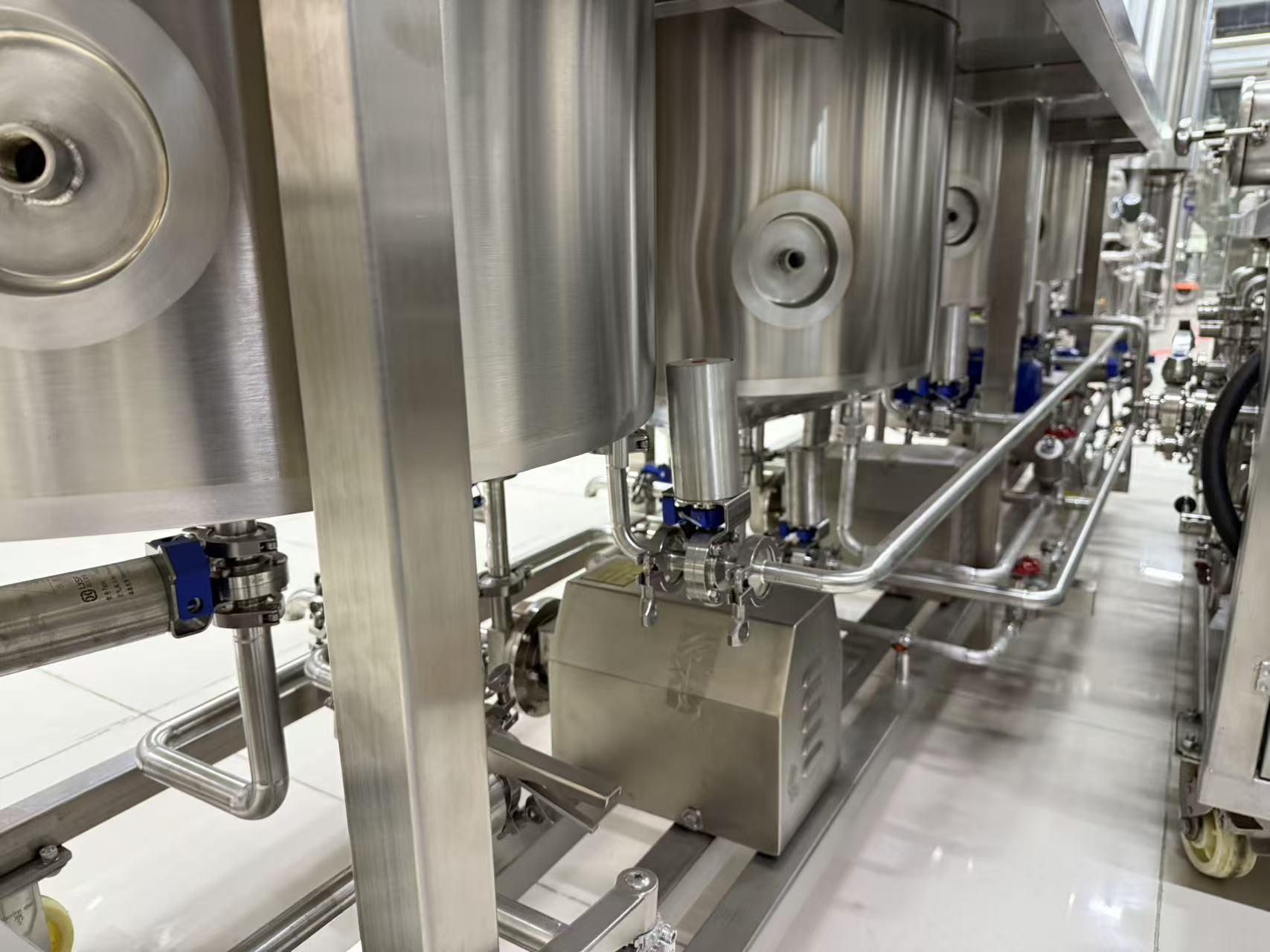

| Piping | Tri-clamp sanitary piping |
| Kettle | Steam heated, insulated |
| Whirlpool | Dedicated whirlpool with tangential inlet |
| Control | PLC control with touchscreen |
| Pumps | Sanitary centrifugal pumps |
Interested in this 100L high-spec brewhouse? Feel free to contact us for layout drawings, customization options, or a detailed quotation.
