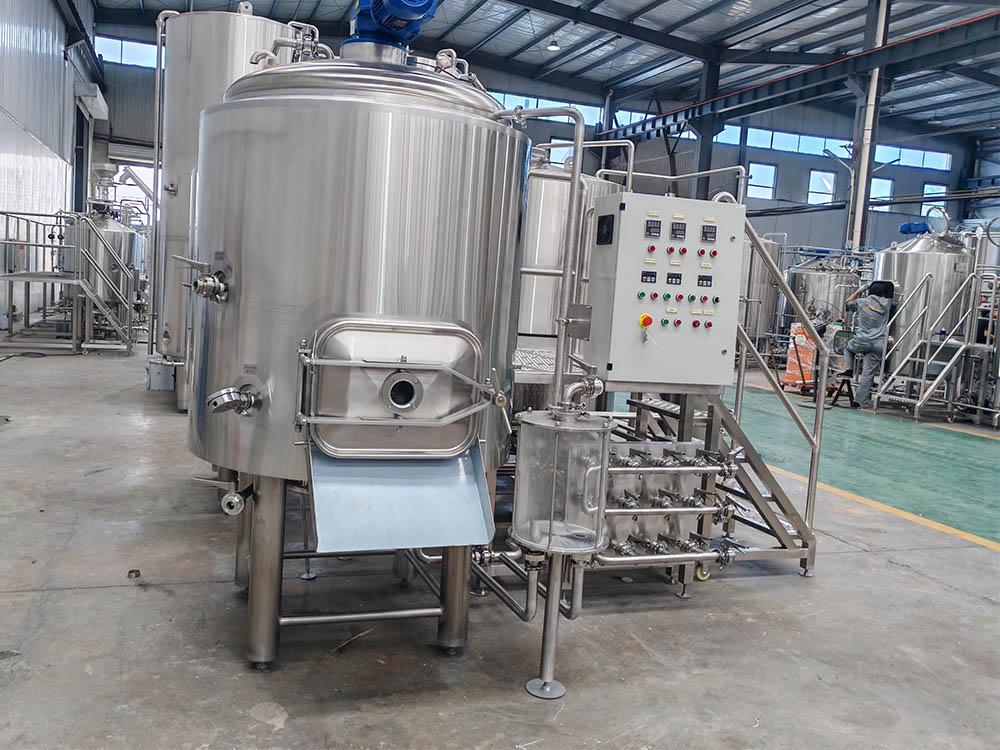

8HL Hotel Beer Brewing System

Brief introduction

Hotel Beer Brewing System is same with bar beer brewing equipment capacity from 200L to 1500L.Some chain hotels may need a bigger capacity.The hotel beer brewing system also have stainless steel or red copper one.Most hotel placed the beer equipment behind of the glass wall,so that visitors could watching the brewing process:Milling, mashing, lauterung, boiling, whirlpool, wort chilling, fermentation&maturing, cooling, temperature controlling, cleaning, filling etc..

Quick overview of 8HL Hotel Beer Brewing System

Output/Brew	8HL
Brew/day	1-2
Output/Week	1600L to 8000L beer per week based on different configuration
Electric Supply	3phase/380(220, 415,440…)v/50 (60)Hz Single Phase/ 220(110, 240…)v/50(60)Hz
Heating Source	Electric/Steam/direct fire heating
Area Request	>60M2
Brewmaster	1
Mashing method	Decoction,infusion,multi-step infusion

Configuration list for 8HL Hotel Beer Brewing System

Main brewing system	Components	Main specification
Brewhouse unit	Mash/Lauter tun	8HL 25% head space, Steam heating with insulation False bottom, Rake&motor, Spent grain outlet CIP, sight glass.
	Kettle/Whirlpool tun	8HL 40% head space, Steam heating with insulation Steam condenser, Tangential inlet. Wort outlet and trub outlet
	Wort pump	3T/hr, Sanitary
	Plate heat exchanger	8m2 Two stages Connected with wort aeration device Disassemble
	Work platform	Disassemble, Adjustable
	OPTIONAL	Wort grant Hopback Hopper Pneumatic valve Wort flow meter Sink Sterile air compressor
Fermentation unit	Fermentation tank	8HL/16HL 25% head space, Jacketed and insulated Conical bottom, Pressure valve, relief valve CO2 relief valve Coolant inlet and outlet Sample valve Side manway Top, Dry Hopping Port CIP connections Wort inlet and yeast outlet Racking arm Temperature and pressure gauges
Maturation/Storage (OPTIONL)	Bright beer tank	8HL/16HL 20% head space, Jacketed and insulated Dished head&bottom Pressure valve, relief valve Site Glass level Carbonation stone assembly Sample valve Side manway Fill/drainage port CIP connections Temperature and pressure gauges Jacketed and single wall tanks
Glycol cooling system	Glycol cooling tank	Thermowell Top manway CIP arm and spray ball 360 degree of coverage
	Cold liquor tank (OPTIONAL)	Thermowell Top manway CIP arm and spray ball 360 degree of coverage Visual level sight glass Cooling jackets
	Chiller	Second generation Freon R410A, R404A
	Glycol water pump and piping
Controlling unit	Brewhouse control panel	Temperature monitoring& controlling Pump on/off control VFD control
Controlling unit	Cellar control panel	Temperature monitoring& controlling More controllers reversing for expansion available
Cleaning unit	Alkali tank	100L Electric heating
	Sterile tank	100L
	Pump and piping
