General introduction of 10,000KL Annual Beer Production Brewery
The 10,000KL Annual Beer Production Brewery is a medium to large-scale brewing facility designed to deliver consistent, high-quality beer with industrial efficiency and flexibility. With an annual output capacity of 10 million liters, this brewery is ideal for regional beer brands and commercial brewers aiming to scale up their market presence.
The complete brewing system includes advanced brewhouse technology (2-, 3-, or 4-vessel configuration), high-efficiency fermentation and conditioning tanks, automated CIP systems, and intelligent control systems for precise process management. The layout supports smooth material flow, energy savings, and optimized labor utilization. Optional packaging lines (bottle, can, and keg), filtration, pasteurization, and cold storage systems ensure an integrated turnkey solution from brewing to final product delivery.
Built to meet international sanitary and safety standards, this brewery can produce a wide range of beer styles while maintaining batch-to-batch consistency, offering flexibility for recipe innovation and contract brewing services.
.jpg)
Configuration of 10,000KL Annual Beer Production Brewery
Technical Basis of 10,000KL Industrial Brewery
.jpg)
Automation Level of 10,000KL Industrial Brewery
To realize maximum automation level
Valves automation: pneumatic butterfly, pneumatic angle seat valve, pneumatic ratio angle seat valve
One click brewing to save manual operation and reducing error rates
Auto water mixing station for mashing or sparging
Auto wort cooling station to reach needed fermentation temperature
Auto brewing process, includes mashing, lautering, boiling and whirlpool
Auto discharge of spent grain
Auto mashing in before official brew day to save time and help streamline your mashing process
Auto vessel pre-heating to save time and improve brewing consistency.
Auto vessel flushing to maintain high level cleanliness and efficiency in brewing
Recipe storage for different types beer
Auto alarm protection
Auto security protection
Auto log archiving
The Fully Automatic 10,000KL Annual Beer Production Brewery is a modern, high-efficiency facility engineered for consistent, large-scale beer production. Designed for breweries aiming to combine volume with precision, this advanced system integrates cutting-edge automation across the entire brewing process — from raw material handling to final packaging.
At the heart of the system is a fully automated 4 or 5-vessel brewhouse, capable of producing multiple batches per day with minimal operator intervention. All key processes — mashing, lautering, boiling, whirlpooling, fermentation, CIP, temperature control, and data logging — are managed through a centralized PLC system with touchscreen or SCADA interface. This ensures precise control, real-time monitoring, and complete traceability for every batch.
Fermentation and storage are supported by glycol-jacketed, insulated tanks with automatic temperature and pressure control. Automated yeast management, dry hopping, and filtration systems further improve quality, efficiency, and flexibility. Optional high-speed canning, bottling, and kegging lines complete the turnkey solution, enabling seamless end-to-end production.
Built to meet global food-grade and safety standards, this brewery is ideal for commercial beer brands looking to scale with confidence, consistency, and cost efficiency.
About Tiantai Brewing Equipment
Tiantai Brewing Equipment is a professional manufacturer of brewery systems with over 20 years of experience in design, production, and turnkey solutions. We specialize in equipment for craft and industrial breweries, including brewhouses, fermenters, bright beer tanks, distillation systems, and auxiliary equipment.
In addition to our standard models, Tiantai offers fully customized brewing solutions tailored to your production needs, site layout, and local requirements. Whether you’re launching a new brewery or upgrading an existing facility, our engineering team works closely with you to deliver efficient, high-quality, and reliable systems.
If you have any specific requirements or need a personalized proposal, please don’t hesitate to contact us. We are always ready to support your brewing journey.
Derrick
Sales Manager
[email protected]
Tiantai Beer Equipment
The 10,000KL Annual Beer Production Brewery is a medium to large-scale brewing facility designed to deliver consistent, high-quality beer with industrial efficiency and flexibility. With an annual output capacity of 10 million liters, this brewery is ideal for regional beer brands and commercial brewers aiming to scale up their market presence.
The complete brewing system includes advanced brewhouse technology (2-, 3-, or 4-vessel configuration), high-efficiency fermentation and conditioning tanks, automated CIP systems, and intelligent control systems for precise process management. The layout supports smooth material flow, energy savings, and optimized labor utilization. Optional packaging lines (bottle, can, and keg), filtration, pasteurization, and cold storage systems ensure an integrated turnkey solution from brewing to final product delivery.
Built to meet international sanitary and safety standards, this brewery can produce a wide range of beer styles while maintaining batch-to-batch consistency, offering flexibility for recipe innovation and contract brewing services.
Configuration of 10,000KL Annual Beer Production Brewery
| Malt Handling System | Malt Feed Hopper |
| Malt Elevator | |
| Malt Classifier | |
| De-stoner | |
| Plate Type Magnet | |
| Mill Feed Hopper | |
| Malt Mill | |
| Grist Case | |
| Grist Conveyor | |
| Dust Collection System | |
| Brewhouse and brewing water section | 2.5KL Cereal Cooker |
| 5KL Mash Tun | |
| 5KL Lauter Tun | |
| 5KL Kettle Tun | |
| 5KL Temporary Storage Tun | |
| 5KL Whirlpool Tun | |
| 15KL Hot Water Tun | |
| Valves, Pumps, Heat Exchanger, Various Sensors | |

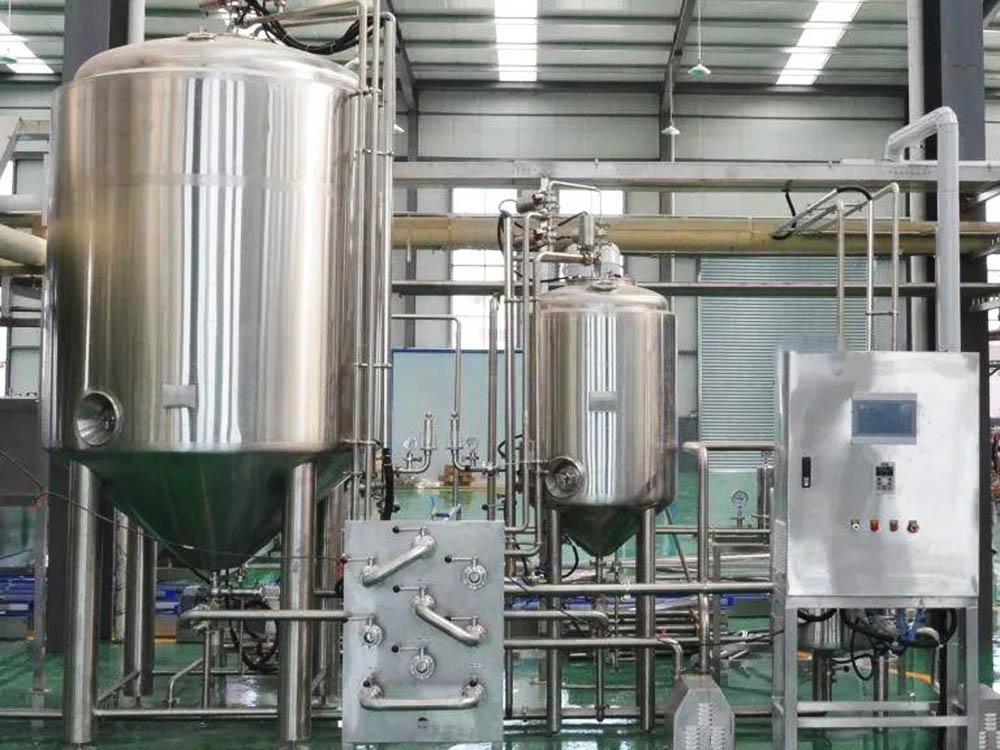

| Yeast propogation, storage and pitching | Carlsberg Flask |
| Yeast Propagator -1 | |
| Yeast Propagator -2 | |
| Yeast Storage Tanks | |
| Yeast Pitching and Cropping Pump | |
| Process&Utility Piping | |
| Field Instrument | |
| Fermentation and maturation section | 10 x 10KL Fermentation Unitank |
| 10 x 20KL Fermentation Unitank | |
| 10 x 30KL Fermentation Unitank | |
| Filtration section | DE Filter |
| Bright beer section | 2 x 10KL Bright Beer Tank |
| 2 x 20KL Bright Beer Tank | |
| CIP system for brewery | 1KL Caustic Tank |
| 1KL Hot Water Tank | |
| 1KL Acid Tank | |
| 1KL Sterile Tank | |
| Pumps, Valves, and Various Sensors | |
| Field instruments, control system, and automation | Full Automation |
| Electrical for brewery | Cables, Signal Wire |
| All other necessary auxiliary equipment | Cable Bridges, Support, and others |
Technical Basis of 10,000KL Industrial Brewery
| Brew Length ( Cast Cold Out) | 5KL |
| Brew Batches per day | 6-8 batches |
| No. of working days | 330 |
| Cold wort collection per day | 10KL/20KL/30KL |
| Design based on brew plato | 15 |
| Maximum Output Plato | 19 |
| Minimum Output Plato | 12 |
| Malt spent grain thickness | 25cm - 38cm |
| Evaporation Rate: | 8% - 10% |
| Voltage Supply | 400V, 3 Phases,50HZ AC, 24V DC or customized |
| Water Supply Pressure | 2 - 6 bar |
| Steam Working Pressure | 2 bar |
| Air Source Pressure | 2 - 8 bar |
| Brewery Expanding | Available |
Automation Level of 10,000KL Industrial Brewery
To realize maximum automation level
Valves automation: pneumatic butterfly, pneumatic angle seat valve, pneumatic ratio angle seat valve
One click brewing to save manual operation and reducing error rates
Auto water mixing station for mashing or sparging
Auto wort cooling station to reach needed fermentation temperature
Auto brewing process, includes mashing, lautering, boiling and whirlpool
Auto discharge of spent grain
Auto mashing in before official brew day to save time and help streamline your mashing process
Auto vessel pre-heating to save time and improve brewing consistency.
Auto vessel flushing to maintain high level cleanliness and efficiency in brewing
Recipe storage for different types beer
Auto alarm protection
Auto security protection
Auto log archiving
The Fully Automatic 10,000KL Annual Beer Production Brewery is a modern, high-efficiency facility engineered for consistent, large-scale beer production. Designed for breweries aiming to combine volume with precision, this advanced system integrates cutting-edge automation across the entire brewing process — from raw material handling to final packaging.
At the heart of the system is a fully automated 4 or 5-vessel brewhouse, capable of producing multiple batches per day with minimal operator intervention. All key processes — mashing, lautering, boiling, whirlpooling, fermentation, CIP, temperature control, and data logging — are managed through a centralized PLC system with touchscreen or SCADA interface. This ensures precise control, real-time monitoring, and complete traceability for every batch.
Fermentation and storage are supported by glycol-jacketed, insulated tanks with automatic temperature and pressure control. Automated yeast management, dry hopping, and filtration systems further improve quality, efficiency, and flexibility. Optional high-speed canning, bottling, and kegging lines complete the turnkey solution, enabling seamless end-to-end production.
Built to meet global food-grade and safety standards, this brewery is ideal for commercial beer brands looking to scale with confidence, consistency, and cost efficiency.
About Tiantai Brewing Equipment
Tiantai Brewing Equipment is a professional manufacturer of brewery systems with over 20 years of experience in design, production, and turnkey solutions. We specialize in equipment for craft and industrial breweries, including brewhouses, fermenters, bright beer tanks, distillation systems, and auxiliary equipment.
In addition to our standard models, Tiantai offers fully customized brewing solutions tailored to your production needs, site layout, and local requirements. Whether you’re launching a new brewery or upgrading an existing facility, our engineering team works closely with you to deliver efficient, high-quality, and reliable systems.
If you have any specific requirements or need a personalized proposal, please don’t hesitate to contact us. We are always ready to support your brewing journey.
