3 bbl Two Vessel Brewhouse Equipment
- Mar 30, 2023
- 159
- beer
3 bbl Two Vessel Brewhouse Equipment
Brief introduction
Brewhouse equipment is designed to produce high quality wort efficiently. With the malt quality improving, the brewmaster does not need to mash with strict and complex method. So, infusion have been able to help the brewmaster to get expected wort for fermenting to get various beers like stout, IPA, porter, Pilsner etc.. In this case, two vessel stainless steel brewhouse equipment is very common used in microbrewery below 2000L. The brewmaster can brew 1-2 batches within 12 hours by two brewing vessel.
Besides, if desired, the brewhouse can be customized to copper, brass or mirror exterior finish, then placed behind a glass partition that allows visitors to observe the process of making wort.

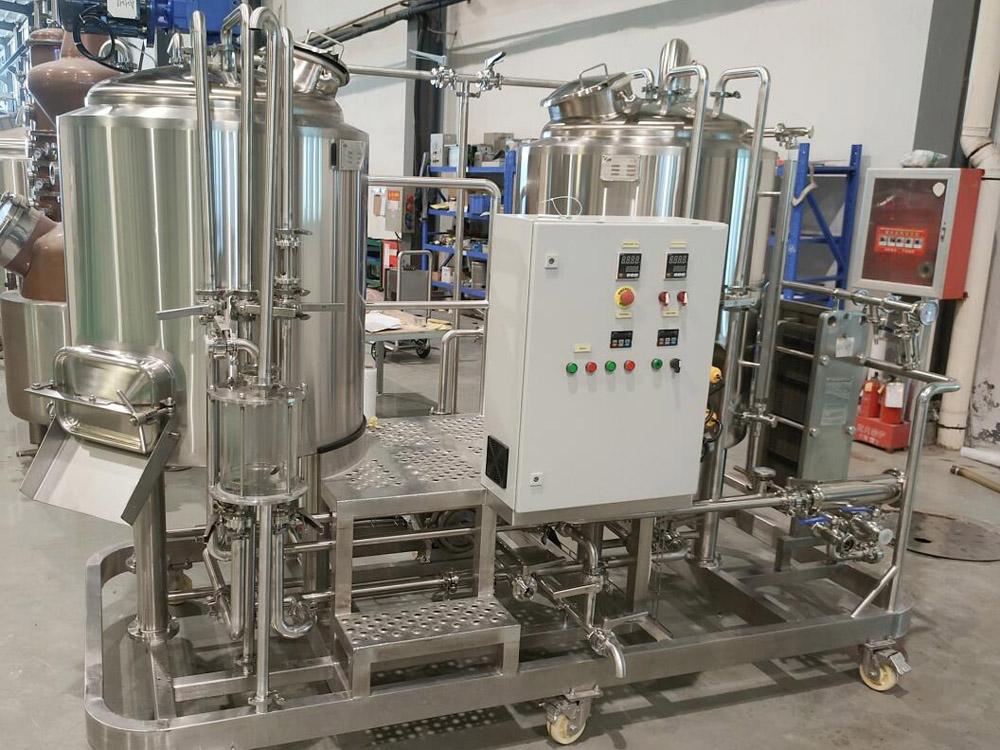

Quick overview of 3 bbl two vessel brewhouse
Main configuration of 3 bbl two vessel brewhouse
A. 3 bbl mash/lauter tun
-3mm Interior Shell and 2mm exterior Shell
-Acid washing&passivating the Interior Finish to 0.2~0.4 μm
-80mm rock wool for insulation
-Stainless steel/glass manway
-CIP spraying ball and sparging ring
-Side mounted grain outdoor with grain chute
-Grain rake and scraper blade with VFD controlled motor& turbine reducer
-False Bottom/Filter
B. 3 bbl kettle/whirlpool tun
-3mm Interior Shell and 2mm exterior Shell
-Acid washing&passivating the Interior Finish to 0.2~0.4 μm
-80mm rock wool for insulation
-Stainless steel/glass manway
-CIP spraying ball
-Tangential whirlpool inlet
C. Other auxiliary equipment
-50L Glass Grant
-3T Sanitary wort and hot liquor pump
-Manifold for liquid flow easily controlling
-Completely stainless steel work platform
-4m2 Two stages or single stage plate heat exchanger
-Sanitary wort aeration mounted with stone
- 10L Sanitary yeast feeder
-PID control panel
Contact us immediately to get latest specification and price of 3 bbl stainless steel, copper, brass or mirror two vessel brewhouse.
Brief introduction
Brewhouse equipment is designed to produce high quality wort efficiently. With the malt quality improving, the brewmaster does not need to mash with strict and complex method. So, infusion have been able to help the brewmaster to get expected wort for fermenting to get various beers like stout, IPA, porter, Pilsner etc.. In this case, two vessel stainless steel brewhouse equipment is very common used in microbrewery below 2000L. The brewmaster can brew 1-2 batches within 12 hours by two brewing vessel.
Besides, if desired, the brewhouse can be customized to copper, brass or mirror exterior finish, then placed behind a glass partition that allows visitors to observe the process of making wort.
Quick overview of 3 bbl two vessel brewhouse
| Structure: | 3 bbl mash/lauter tun+3 bbl kettle/whirlpool tun+3 bbl/6 bbl hot liquor tun |
| Tank Capacity: | 3 bbl (+25% Headspace minimum) |
| Tank size: | Φ860x2100mm |
| Material: | Stainless steel, copper or brass |
| Batches/Day: | 1-2 batches per day |
| Heating Way: | Steam, electric or direct fire |
| Electric Power: | 3phase/380(220,415,440...)v/50(60)Hz |
| Note: | Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter; |
Main configuration of 3 bbl two vessel brewhouse
A. 3 bbl mash/lauter tun
-3mm Interior Shell and 2mm exterior Shell
-Acid washing&passivating the Interior Finish to 0.2~0.4 μm
-80mm rock wool for insulation
-Stainless steel/glass manway
-CIP spraying ball and sparging ring
-Side mounted grain outdoor with grain chute
-Grain rake and scraper blade with VFD controlled motor& turbine reducer
-False Bottom/Filter
B. 3 bbl kettle/whirlpool tun
-3mm Interior Shell and 2mm exterior Shell
-Acid washing&passivating the Interior Finish to 0.2~0.4 μm
-80mm rock wool for insulation
-Stainless steel/glass manway
-CIP spraying ball
-Tangential whirlpool inlet
C. Other auxiliary equipment
-50L Glass Grant
-3T Sanitary wort and hot liquor pump
-Manifold for liquid flow easily controlling
-Completely stainless steel work platform
-4m2 Two stages or single stage plate heat exchanger
-Sanitary wort aeration mounted with stone
- 10L Sanitary yeast feeder
-PID control panel
Contact us immediately to get latest specification and price of 3 bbl stainless steel, copper, brass or mirror two vessel brewhouse.
