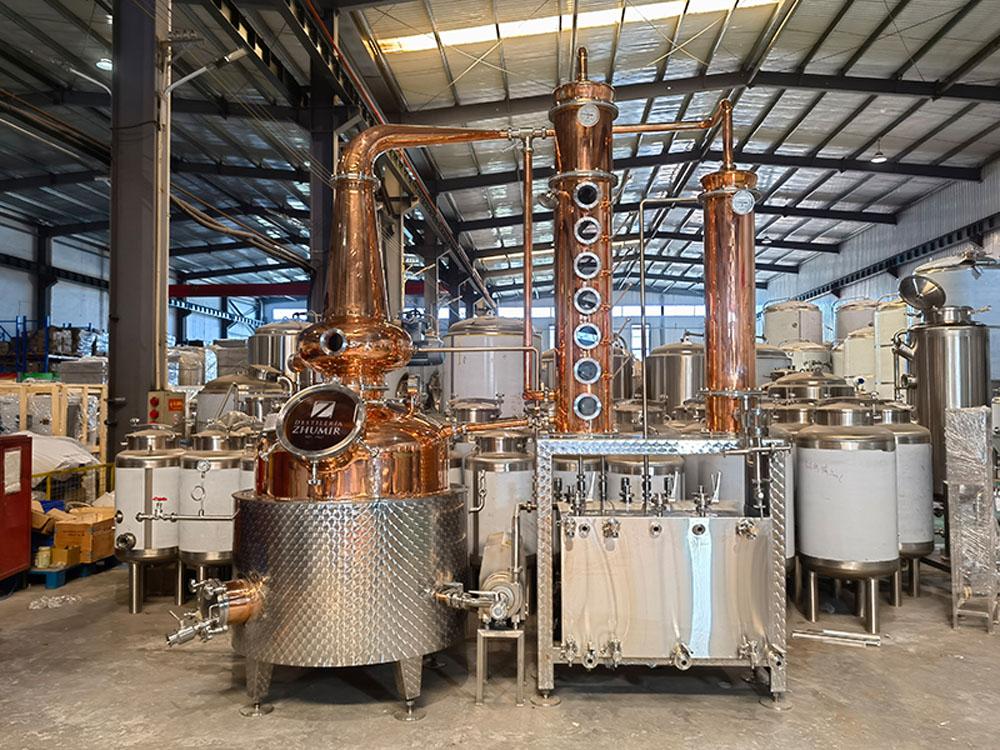

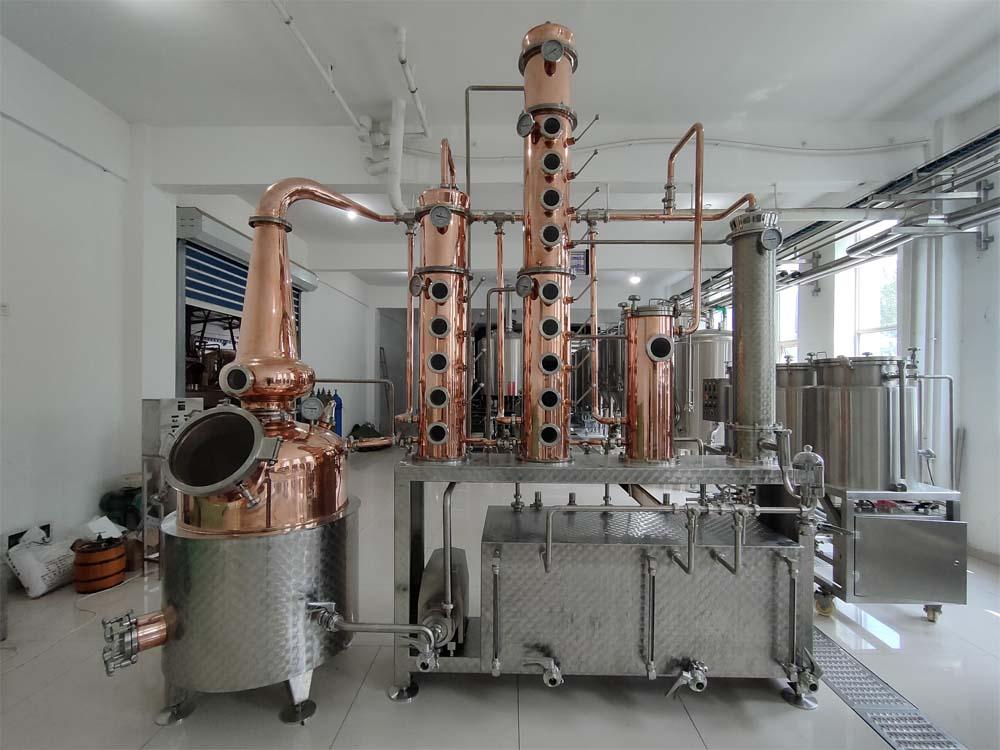

500L Copper Multi-Purpose Distiller
- Jul 22, 2025
- 128
- tiantai
Brief Introduction of 500L Copper Multi-Purpose Distiller
Tiantai 500L Hybrid Distiller combines the versatility of a pot still with the efficiency of a column still, making it ideal for craft distilleries producing a wide range of spirits — from whiskey and rum to gin and vodka. Designed with both tradition and innovation in mind, this system features a copper pot for rich flavor development and a stainless steel column for enhanced purification. It ensures precise temperature control, high yield, and easy operation, all within a compact, elegant design. Perfect for small-batch, high-quality spirit production.
General Configuration of 500L Copper Multi-Purpose Distiller
Why choose Tiantai distiller
1. Turnkey Expertise
Tiantai provides complete distillation solutions, from design and fabrication to installation and training. Whether you're producing gin, whiskey, vodka, or rum — we deliver tailor-made systems to meet your exact needs.
2. Premium Materials & Craftsmanship
We use food-grade stainless steel and top-quality copper, combined with precise welding and polishing, to ensure both durability and product purity.
3. Flexible & Efficient Design
Our hybrid stills are built for versatility and performance — allowing you to produce multiple spirit types with one system. Modular columns, integrated dephlegmators, and user-friendly controls ensure smooth operation and product consistency.
4. Customization for Your Brand
From logo engraving to column configuration, we customize every detail to support your branding and production goals.
5. Reliable Global Support
With successful projects in over 80 countries, our engineering and after-sales team offers dependable support, including remote guidance, video training, and on-site service when needed.
6. Competitive Pricing Without Compromise
Tiantai offers factory-direct pricing with strict quality control — giving you excellent value for high-performance distilling equipment.
We also supply turnkey solutions for beer brewery equipment, winery equipment, kombucha equipment, cider equipment, fermentation tanks, bright beer tank, filling machine.
Tiantai 500L Hybrid Distiller combines the versatility of a pot still with the efficiency of a column still, making it ideal for craft distilleries producing a wide range of spirits — from whiskey and rum to gin and vodka. Designed with both tradition and innovation in mind, this system features a copper pot for rich flavor development and a stainless steel column for enhanced purification. It ensures precise temperature control, high yield, and easy operation, all within a compact, elegant design. Perfect for small-batch, high-quality spirit production.
General Configuration of 500L Copper Multi-Purpose Distiller
| Components | Specification |
| 500L Copper Still Pot |

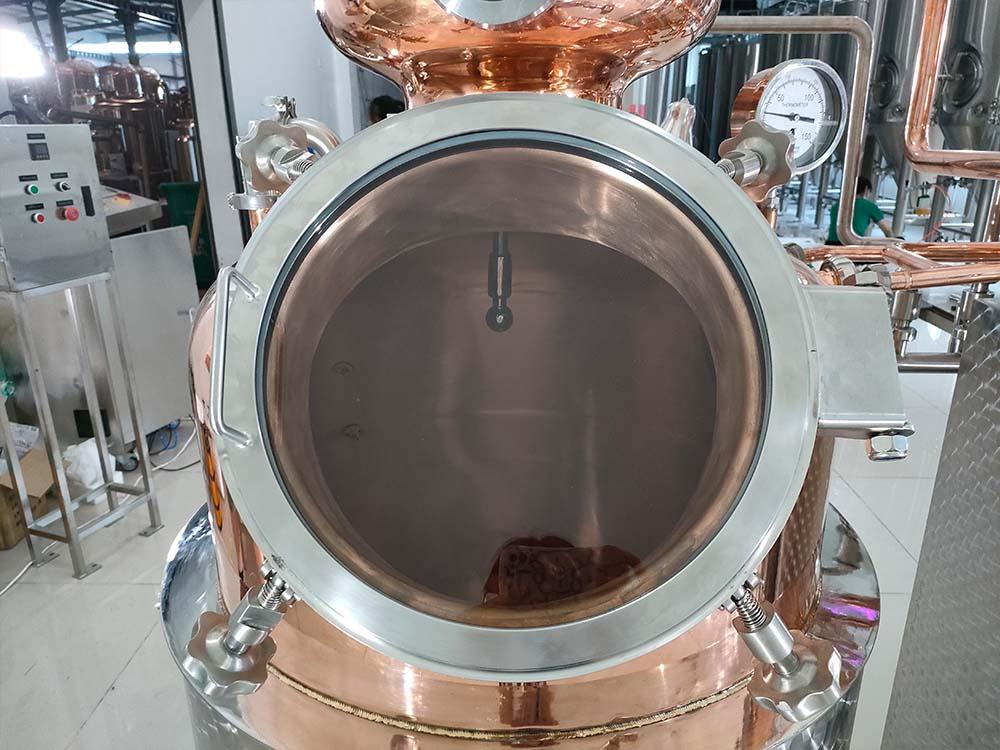

- Working Volume: 500L (>25% Headspace avoiding overflow) - Interior Shell: TP2 Red Copper; Dia.=φ1000mm, TH=4mm - Exterior Shell: SUS304 stainless steel, fully welded; TH=2mm - Insulation: Eco-friendly rockwool, TH=60mm - Heating: Electric or Steam - Top-mounted explosion-proof motor, CE certified (Other certifications, like UL/CSA/ATEX/IECEx, are available upon special request) - Full 304 stainless steel motorized agitator inside - PT100 Temperature sensor on the side wall - Top mounted glass manhole (Logo printing available) |
| Copper Helmet |
- TP2 Red copper; TH=3mm - Spherical as standard (Plain or lantern available for option) - Sight glass on the side wall for easy observation - CIP inlet with a spray ball |
| Copper Swan Neck and Lyne Arm |
- Regulate the balance of spirit and flavor substances through angle changes - TP2 Red copper; TH=3mm - Lyne Arm Style: Horizontal as standard (Raise or Drop available for option) |
| Dephlegmator |
- Alcohol vapor cooling reflux maintains vapor-liquid phase exchange equilibrium and improves alcohol purity - Shell-and-Tube condensor with a crown-shaped top - 304 Stainless steel shell with tube or copper - Cooling water inlet and outlet - CIP inlet with a spray ball - Side mounted bimetal thermometer |
| Copper Distill Column [4 Trays] |
- Exchange of vapor phase and liquid phase to improve alcohol content - Distill Column Material: TP2 Red copper, TH=3mm - Bubble tray Numbers: 4 trays - Bubble Cap: TP2 Red copper with slit - Adjustable liquid level bar for each bubble cap tray - Sight glass for each tray chamber - CIP spray ball for each tray chamber |
| Gin Basket |
- Adding flavor substances to alcohol vapor - 304Stainless steel or copper - Quick open top lid - Sight glass on the side wall for easy observation - CIP inlet with a spray ball - Removable stainless steel filter plate basket (Copper available for special request) |
| Stainless Steel Condensor |
- Cooling spirit Style: Shell-and-Tube condensor - 304 Stainless steel tube shell or copper - Cooling water inlet and outlet - CIP inlet with a spray ball - Side mounted bimetal thermometer |
| Parrot Outlet |
- Spirit output and alcohol content test - 304 Stainless steel - With glass cover |
| Stainless Steel Alcohol Vapor Pipeline & Valves |
- Stainless steel pipe from still pot to column/gin/condensor - Stainless steel pipe from column to gin basket/condensor - Stainless steel pipe from gin basket to condensor - Stainless steel pipe from condensor to spirit receiver tanks -Stainless steel pipe from column/gin basket to still pot |
| Stainless Steel CIP Pipeline & Valves |
- Stainless steel CIP pipe for still pot with ball valve - Stainless steel CIP pipe for swan neck with ball valve - Stainless steel CIP pipe for each column bubble trays with a check valve - Stainless steel CIP pipe for gin basket with ball valve - Stainless steel CIP pipe for condensor with ball valve - CIP pump |
| Stainless Steel Spirit Receiver Tanks |
- 304 Stainless steel - 100L Foreshots head spirit receiver tank - 150L Middle cut spirit receiver tank - 200L Feints receiver tank - CIP Spray ball inside each receiver tank - Sight glass level tube of each receiver tank - Exhaust valve of each receiver tank on top - Bottom drain valve of each receiver tank |
| Stainless Steel Supporting Frame |
- 304 Stainless steel platform - Perlage finish as standard or Oil brushed finish - Four stainless steel supporting foot pads |
| Stainless Steel Control Cabinet |
- Distilling control - 304 Stainless steel cover - Non-explosion-proof type as standard (Explosion-proof type or any certification required available for special request) - Instrumental panel - Wall or bracket mounting - Temperature display of still pot - Agitator on/off control - CIP pump on/off control |
Why choose Tiantai distiller
1. Turnkey Expertise
Tiantai provides complete distillation solutions, from design and fabrication to installation and training. Whether you're producing gin, whiskey, vodka, or rum — we deliver tailor-made systems to meet your exact needs.
2. Premium Materials & Craftsmanship
We use food-grade stainless steel and top-quality copper, combined with precise welding and polishing, to ensure both durability and product purity.
3. Flexible & Efficient Design
Our hybrid stills are built for versatility and performance — allowing you to produce multiple spirit types with one system. Modular columns, integrated dephlegmators, and user-friendly controls ensure smooth operation and product consistency.
4. Customization for Your Brand
From logo engraving to column configuration, we customize every detail to support your branding and production goals.
5. Reliable Global Support
With successful projects in over 80 countries, our engineering and after-sales team offers dependable support, including remote guidance, video training, and on-site service when needed.
6. Competitive Pricing Without Compromise
Tiantai offers factory-direct pricing with strict quality control — giving you excellent value for high-performance distilling equipment.
We also supply turnkey solutions for beer brewery equipment, winery equipment, kombucha equipment, cider equipment, fermentation tanks, bright beer tank, filling machine.
