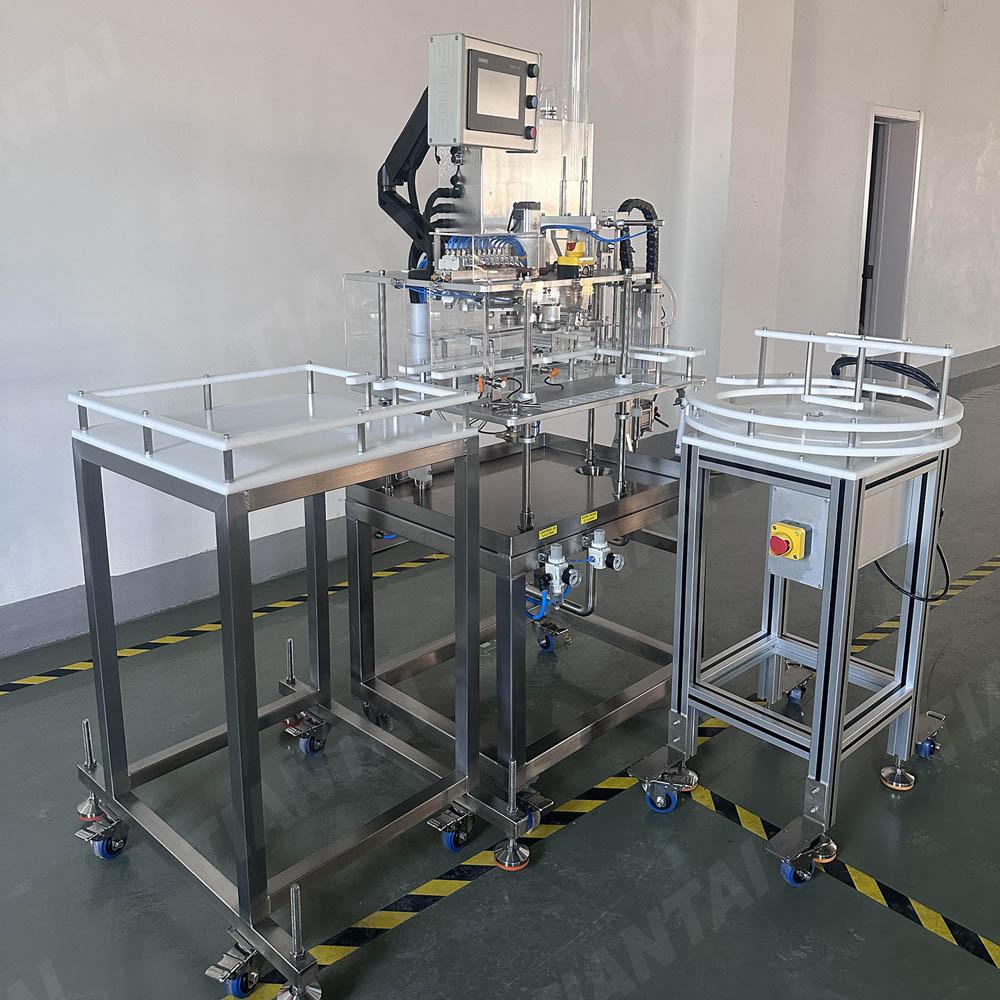

1-Station Automatic Beer Can Rinser Filler and Seamer
♦ Rotary Infeed Table+Flip-Rinse Part+Can Filling System with seamer
♦ Capacity: 500PCS/STATION|1 STATION
♦ Can type: It can be configured for nearly all standard can sizes.
♦ Working procedure: Put can→constantly convey→ Santizing flip-rinse→CO2 purge→ Beer Filling→Cover lips→Seamer→Exit rinse
♦ Power: Singel Phase 110V-240VAC 50/60Hz is default
♦ Power consumption: 500W
♦ Main Material: AISI304, Aluminum Alloy and POM
♦ Beer Source Requirement:
Temperature: 30.2 - 32F (-1 to 0C)
Carbonation value: 2.4 to 2.7
CO2 (4.6 to 5.2 g/L CO2)
Pressure：22psi（0.15MPa）
Connection: 1.5"" Tri-clamp"
♦ CO2 Regulator: 58-65 psi（0.4MPa-0.45Mpa） from plant system connected to canning system with 3/8“OD barbed fitting
♦ Air Regulator: 87-102 psi（0.6MPa-0.7Mpa） from plant system connected to canning system with 3/8“OD barbed fitting
♦ Time setting : Siemens PLC 200 smart and IEV3 Touch Screen
♦ Seamer: Cemented Carbide;Panasonic Motor
♦ Dissolved Oxygen: ≤30ppb
♦ Rinse function: 3S/pc（unadjustable）
♦ Spray function: 2S/pc（adjustable）
♦ Cans feeding platform
In addition to 1-Station canning line, 2-Station canning line and 4-Station canning line are optional.
Edited by Vicky
Email: [email protected]
