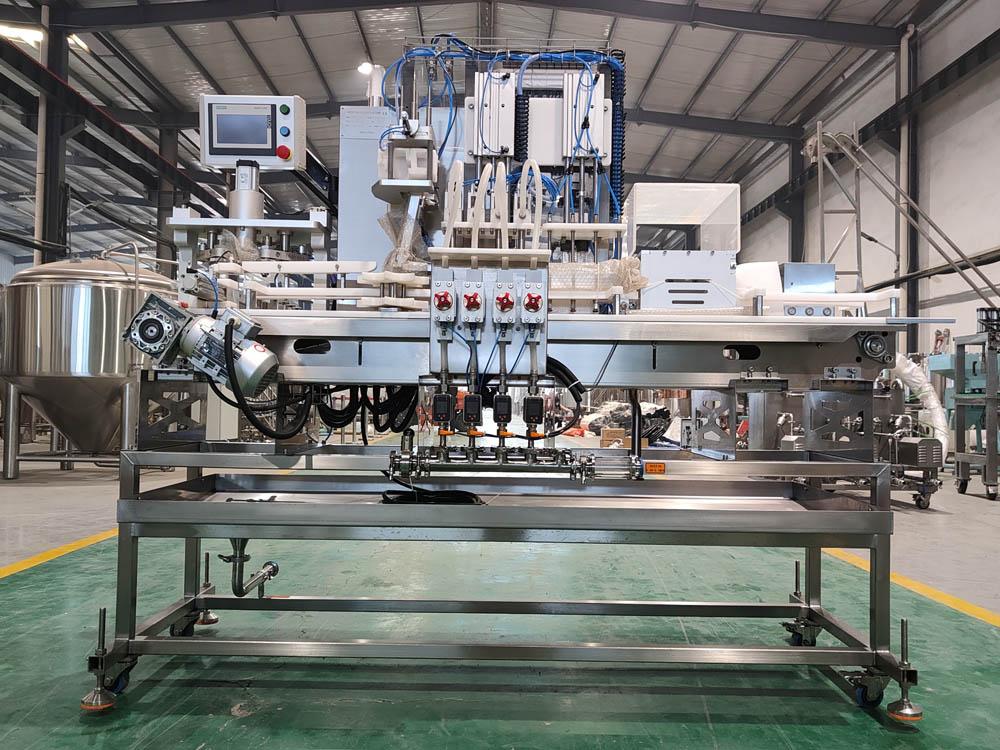

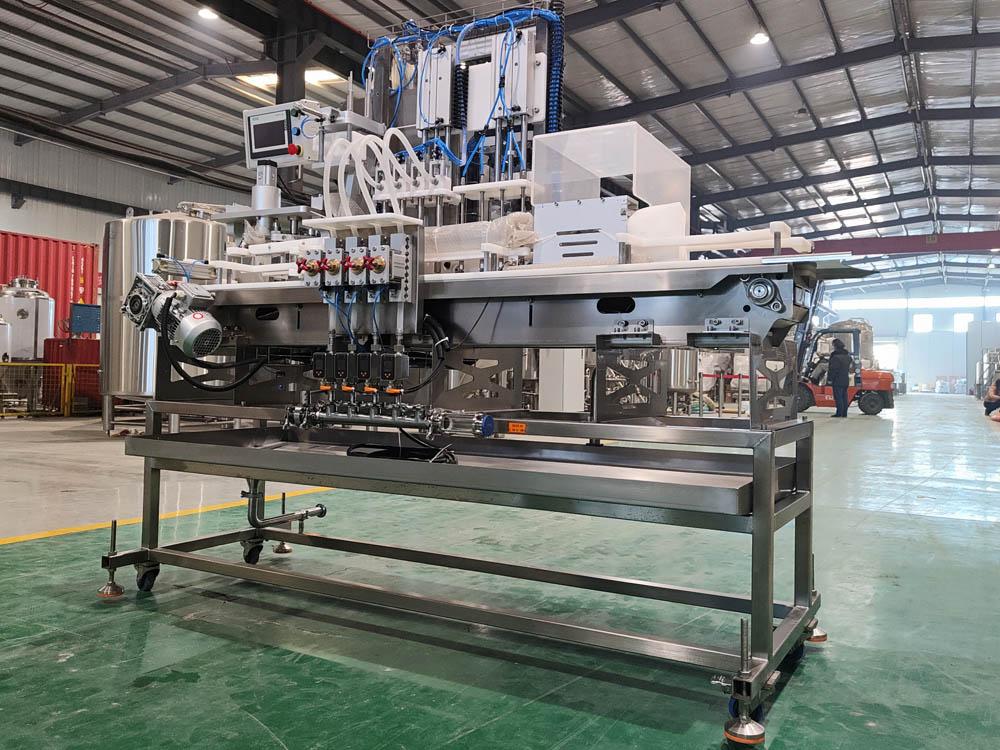

4-Station Beer Can Rinser, Filler and Seamer
- Jul 08, 2025
- 172
- tiantai
♦ Rotary Infeed Table+Flip-Rinse Part+Can Filling System with seamer+Outfeed Table
♦ Capacity: 1500-1800pcs/H(330ml) 495-594L/H; 1200-1500pcs/H(500ml) 600-750L/H
♦ Can type: It can be configured for nearly all standard can sizes.
♦ Working procedure: Put can→constantly convey→ Santizing flip-rinse→CO2 purge→ Beer Filling→Cover lips→Seamer→Exit rinse
♦ Power: Singel Phase 110V-240VAC 50/60Hz is default
♦ Power consumption: 2.0-3.5KW
♦ Main Material: AISI304, Aluminum Alloy and POM
♦ Beer Source Pressure:0.15-0.2Mpa (22-30PSI) 1.5" Tir-clamp
♦ Compressed Air: 0.50-0.70Mpa (75.0-105PSI) OD:Ф10mm
♦ Jacking Cylinder Regulator: 0.20-0.30Mpa (30-45PSI)
♦ CO2 Regulator:0.15-0.2Mpa (22-30PSI) OD:Ф10mm
♦ Flip-Rinse Sanitizer: 0.15-0.20Mpa(22-30PSI) 1.5" Tir-clamp
♦ Exit-Rinse Water: 0.15-0.20Mpa(22-30PSI) 1.5" Tir-clamp
♦ Time setting way: Siemens PLC 200 smart

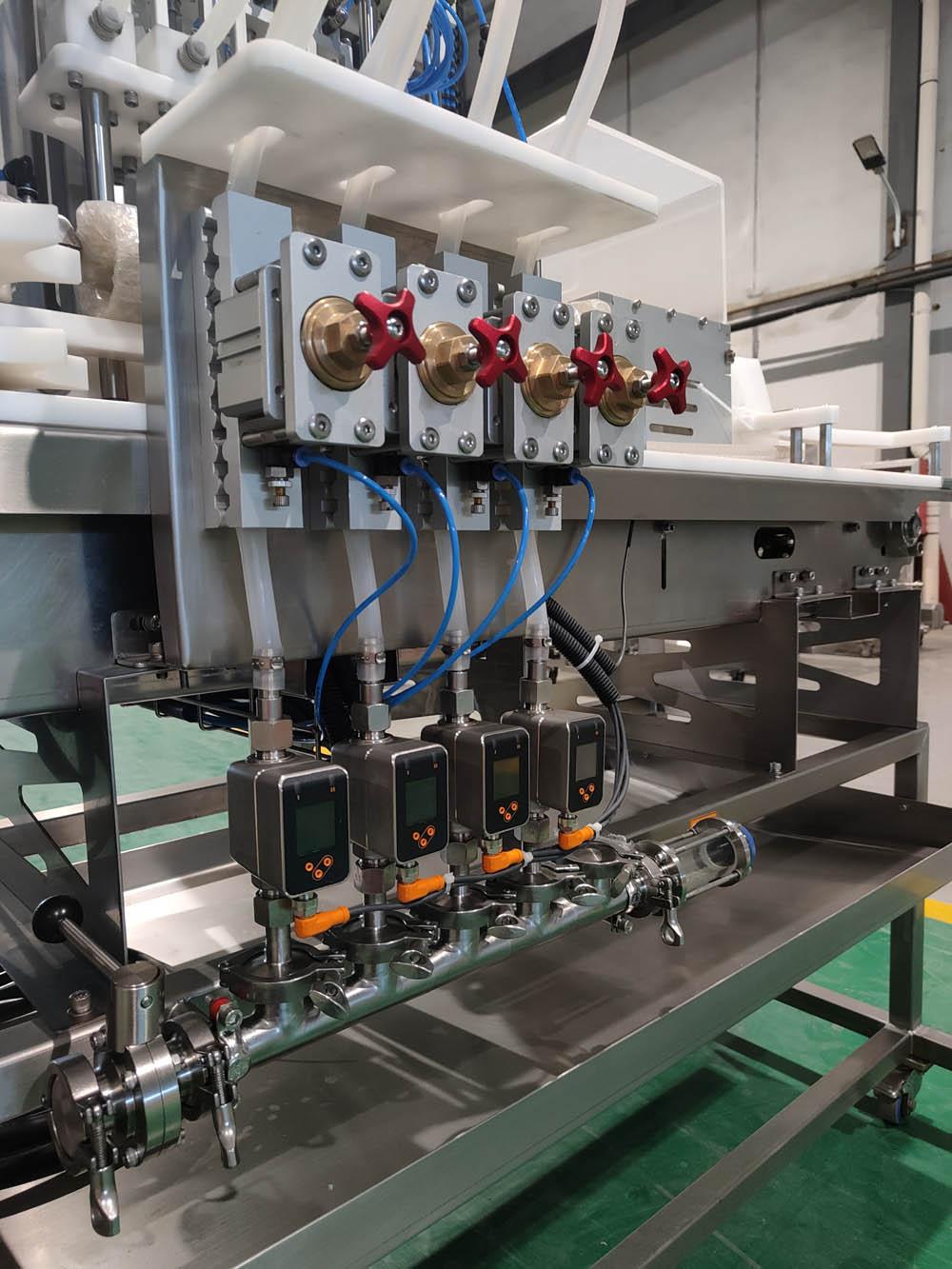

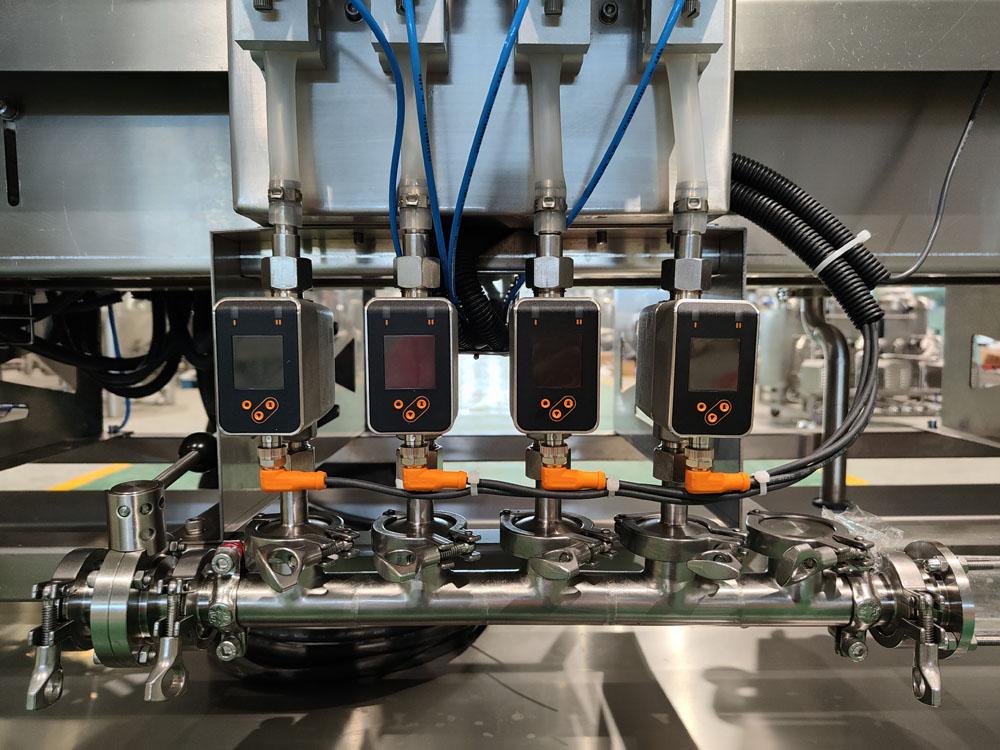

♦ Flow meter: 4 pcs IFM flow meter
♦ With wheels
♦ Total Size:W*L*H: 2.9×0.91×1.85M
♦ Total Weight:W*L*H: 340KG
In addition to 4-Station canning line, 2-Station canning line and 1-Station canning line are optional.
