Tiantai Brewtech 1000L Round Wine Fermentation Tank is designed for efficient and hygienic wine fermentation and storage. Made from high-quality stainless steel, the wine fermentation tank features a smooth sanitary interior, reliable temperature control, and a practical round-body design for easy cleaning and operation. With a 1000L working capacity, it is an ideal solution for wineries, craft wine producers, and small-to-medium-scale wine production. The wine fermentation tank is also fitted with cooling jackets, manholes, valves, sampling ports, and other fittings according to different winemaking requirements.
II. Key Features of 1000L Round Wine Fermentation Tank
1.) Cooling Jacket Options

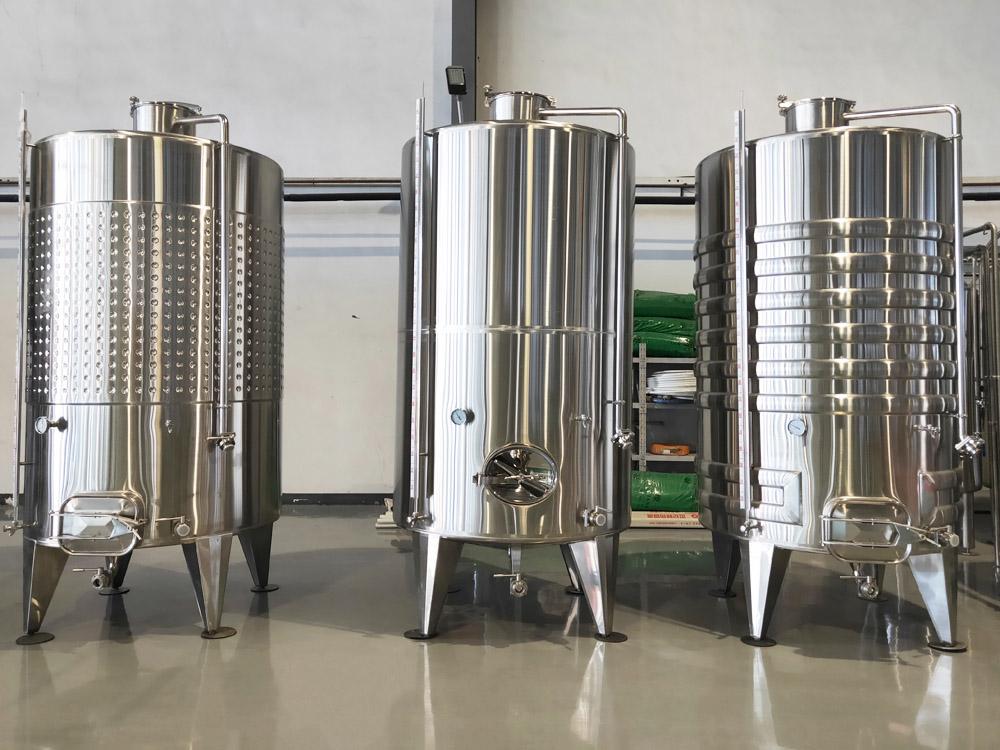

Available with different cooling designs, such as dimple jackets or cooling coils, to achieve efficient heat transfer and maintain stable fermentation temperatures.
2.) Conical or Flat Bottom Design
Available in different bottom configurations to meet various fermentation, yeast collection, and discharge requirements.
3.) Professional Fermentation Accessories
Can be equipped with features such as manway doors, sampling valves, pressure gauges, CIP spray balls, and temperature sensors for convenient operation.
4.) Flexible Installation Options
Designed for different winery layouts with customizable connections, dimensions, and configurations according to customer requirements.
5.) Food-Grade Manufacturing Standards
Manufactured with sanitary welding and smooth internal surfaces to meet beverage production requirements.
6.) Scalable Capacity Range
Available from small pilot-scale tanks to large commercial fermentation vessels for wineries of different production sizes.
III. Technical Specifications of 1000L Round Wine Fermentation Tank
| Specification | Detail |
| Working Volume | 1000L |
| Total Volume | 1250L |
| Material | SUS 304/316L Food-Grade Stainless Steel |
| Structure | Single-wall tank with glycol cooling jacket |
| Design Pressure | 0.5 bar |
| Manhole | Top mounted manway (for discharge) |
| Cleaning System | CIP spray ball |
| Temperature Sensor | PT100 |
IV. Application Scenarios of 1000L Wine Fermentation tank
**Red Wine Production
Designed for red wine fermentation with effective temperature management to support color extraction, aroma development, and consistent wine quality.
**White Wine Production
Suitable for controlled-temperature fermentation to help preserve delicate aromas and fresh flavors.
**Fruit Wine Fermentation
Ideal for fermenting fruit-based wines such as grape wine, berry wine, and other specialty fruit beverages.
**Craft and Small-Batch Wine Making
Available in various capacities to meet the needs of boutique wineries, experimental production, and commercial expansion.
**Other Fermented Beverages
Can also be used for fermentation of other beverage products that require hygienic stainless steel tanks and precise process control.
