5BBL Turnkey Beer Brewing Equipment

Home Brewery Equipment Microbrewery Equipment

The 5BBL turnkey beer brewing system is designed for small and medium craft breweries and brewpubs.

It includes a complete brewhouse, fermentation unit, cooling system, and control panel — all made from food-grade stainless steel.

The system supports multiple heating methods (steam, electric, or direct fire) and can be customized for different beer styles.

With precise temperature control, sanitary design, and flexible layout, it’s ideal for both professional brewers and startup breweries.

Features

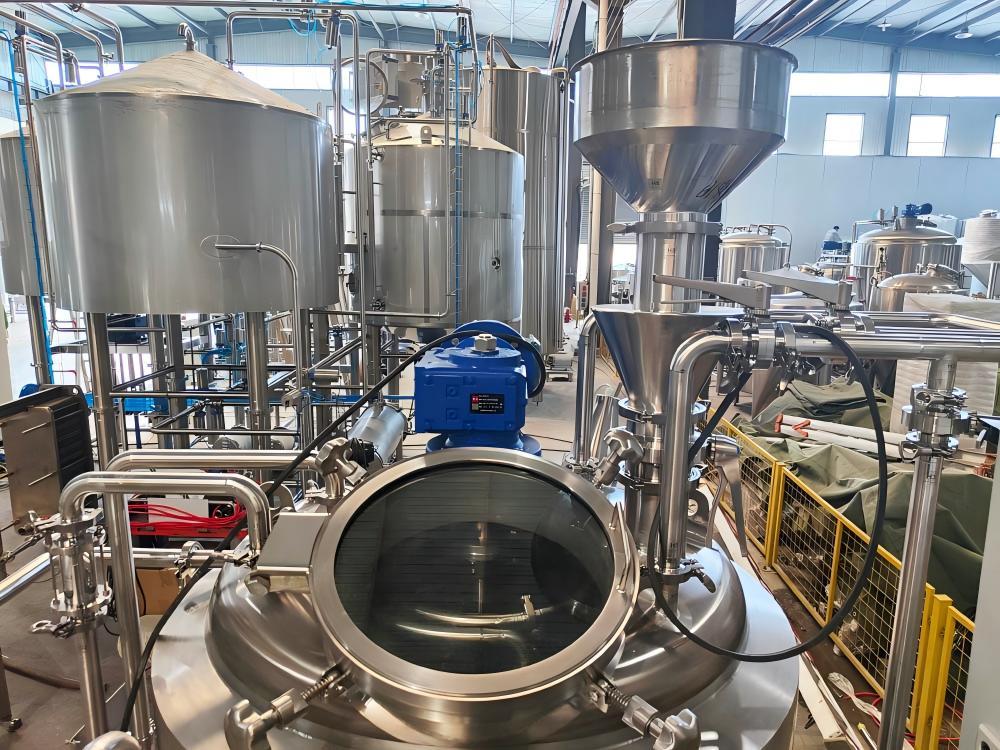

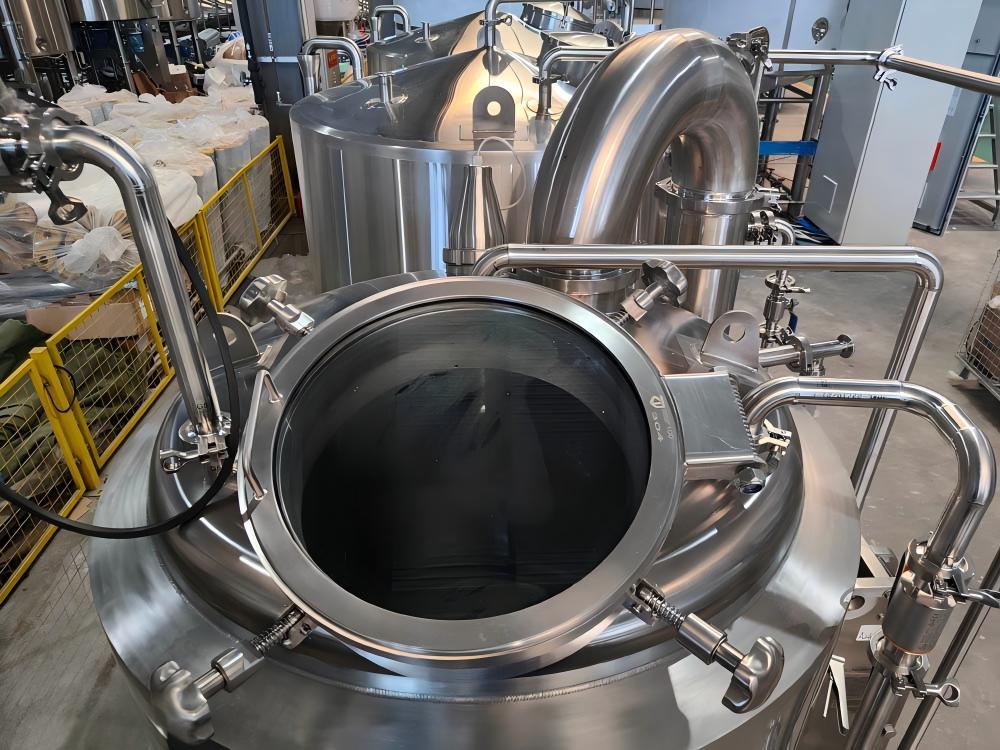

-2-vessel or 3-vessel brewhouse design (Mash/Lauter tun + Kettle/Whirlpool)

-SUS304 stainless steel construction, 100% TIG welded

-Interior polished to 0.4 μm for easy cleaning and hygiene

-PLC or PID control system for accurate process control

-Glycol cooling system with insulated PPR pipelines

-Fermentation and bright beer tanks with cooling jackets

-Top-quality valves, fittings, and sight glass included

-Optional electric, steam, or direct fire heating

-Compact footprint with easy installation

-CE-certified components and 3-year warranty on tanks

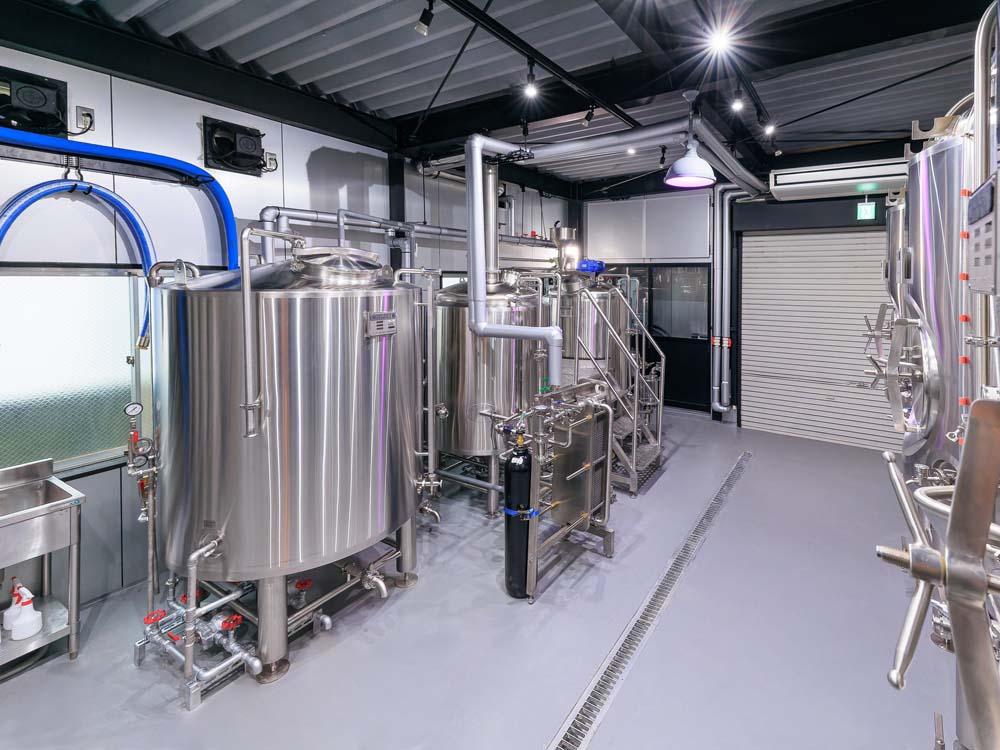

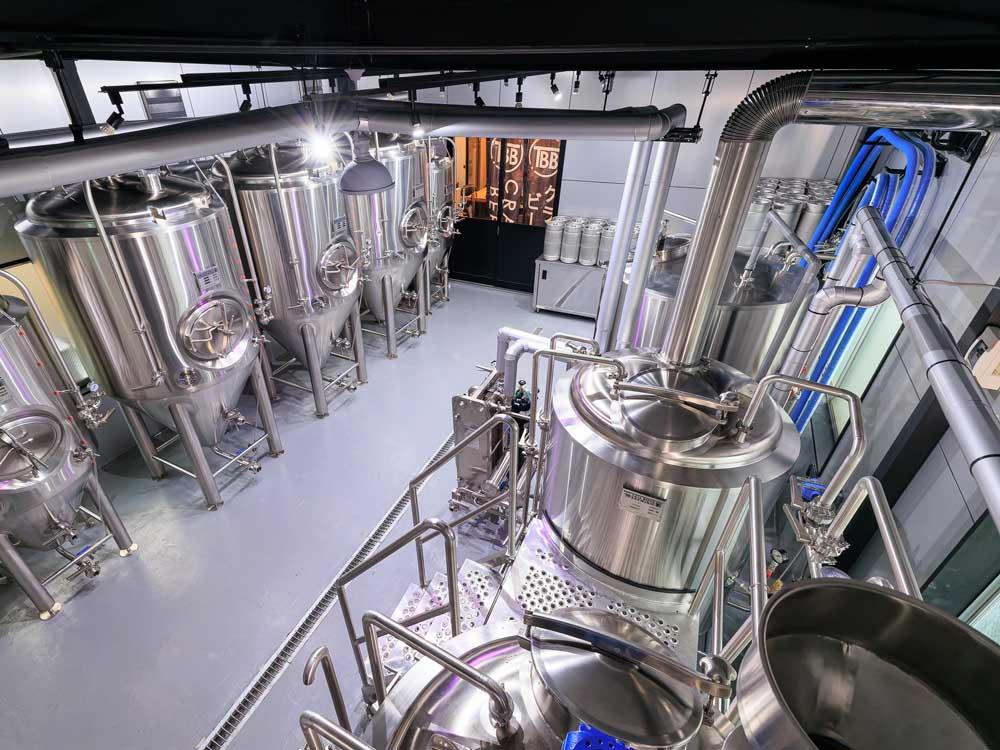

5BBL beer equipment

Specifications

Item	Specification
Brewhouse Capacity	5BBL (≈ 600L)
Configuration	2-vessel / 3-vessel optional
Heating Method	Steam / Electric
Material	SUS304 Stainless Steel
Fermentation Tank	5BBL × customized quantity
Cooling System	Glycol chiller + PPR insulated piping
Control System	PID / PLC touch screen
Working Pressure	≤ 2 bar (30 psi)
Interior Finish	0.2–0.4 μm sanitary polish
Warranty	3 years on main vessels
