7BBL Turnkey Beer Brewing Equipment
- Nov 29, 2025
- 101
- tiantai
This turnkey setup includes a 2-vessel brewhouse, fermentation cellar, cooling system, and CIP unit, providing everything needed for consistent, high-quality brewing.
All tanks are made from food-grade SUS304 stainless steel, using TIG welding with argon protection for hygienic, smooth welds and long service life.
The system operates efficiently under steam heating, offering precise control over mashing and boiling temperatures.
The system operates efficiently under steam heating, offering precise control over mashing and boiling temperatures.

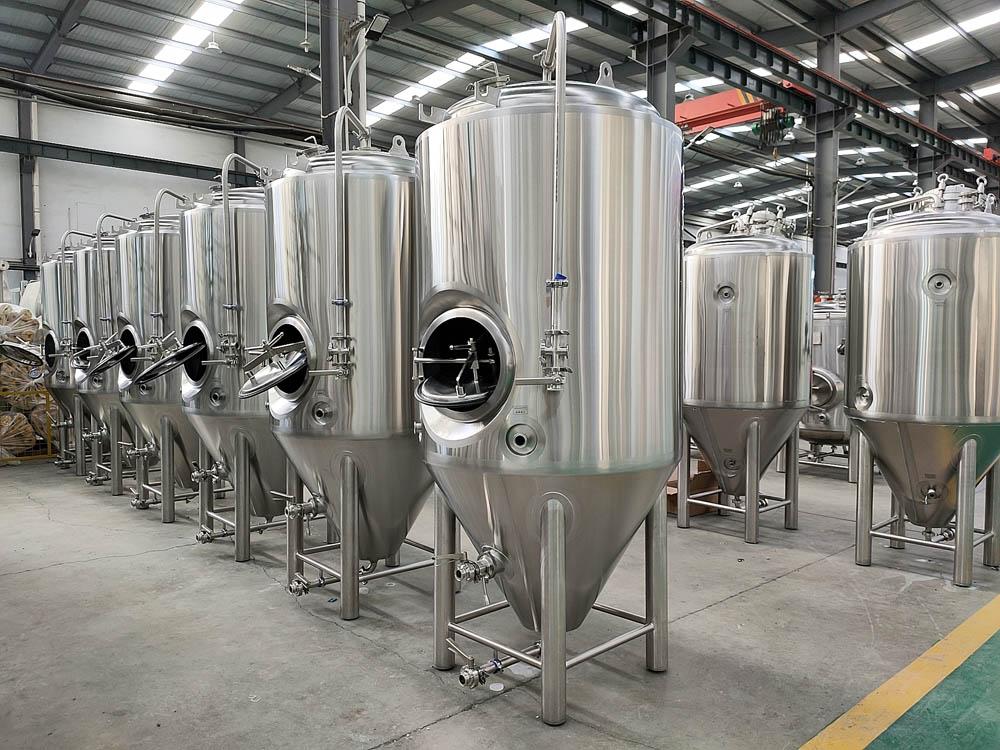

Fermentation and conditioning tanks feature cooling jackets with PU insulation, ensuring stable temperature control during fermentation and maturation.
The control panel integrates temperature and pump management, allowing brewers to monitor and adjust all key parameters easily.
The control panel integrates temperature and pump management, allowing brewers to monitor and adjust all key parameters easily.
This 7BBL brewery is ideal for start-up breweries, restaurants, or pilot brewing facilities, and can be customized according to your space, brewing process, or automation requirements.
Features
-Compact 2-vessel design for efficient brewing in limited spaces. (Other structures are optional)
-Steam heating provides stable temperature control and energy efficiency. (Electric heating optional)
-Sanitary stainless steel construction (SUS304), fully TIG welded.
-Glass manway and LED light for easy wort observation.
-Precise temperature panel.
Specifications
-Fermenters equipped with cooling jackets and PU insulation (60–80mm).
-CIP spray ball and sample valve for easy cleaning and sampling.

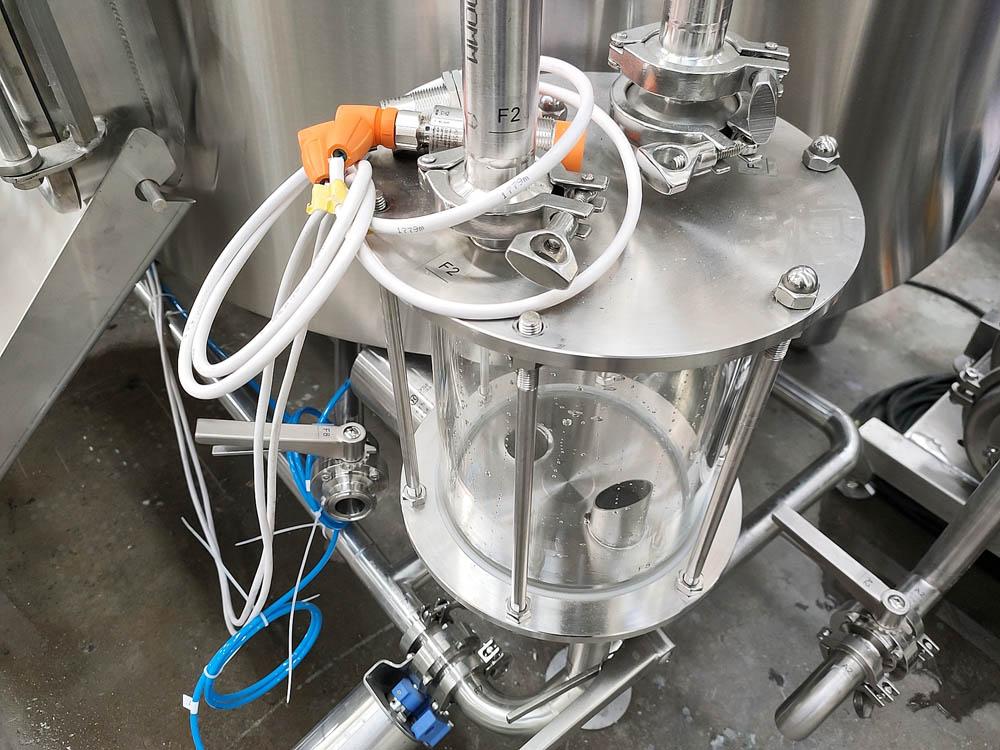

-The glass wort grant is equipped with high and low-level sensors, allowing automatic pump control to prevent overflow or running dry during lautering.
-The glass wort grant is equipped with high and low-level sensors, allowing automatic pump control to prevent overflow or running dry during lautering.
-All tanks with 100% internal mirror polishing (Ra≤0.4μm).
-Modular design — easy installation, expansion, and maintenance.
-Ideal for producing all styles of craft beer: lager, ale, stout, IPA, etc.
Specifications
| Item | Specification |
| Brewhouse | 2-Vessel (Mash/Lauter + Kettle/Whirlpool) (Adjustable) |
| Capacity | 7BBL / 820L per batch |
| Heating | Steam heating system (Adjustable) |
| Material | SUS304 stainless steel |
| Fermenters | 4 × 7BBL with cooling jacket |
| Bright Beer Tank | 1 × 7BBL |
| Cooling Unit | Glycol chiller + pumps + insulated pipes |
| CIP Unit | Portable with caustic & acid tanks |
| Control | PLC + touchscreen or PID panel |
| Power Supply | 380V / 50Hz (customizable) |
Are you planning to start a brewery?
Contact us for:
-A Detailed Project Quotation
-Factory Layout Planning Support
-Technical Specifications Sheet
Sales Manager: Amanda
Email: [email protected]
