10000L Turnkey Multi-functional Distillery Project
- Aug 08, 2025
- 158
- tiantai
Brief Introduction of 8000L Turnkey Multi-functional Distillery Project
Tiantai’s 10000L Turnkey Multi-functional Distiller Brewery is an advanced, high-capacity solution designed for professional-scale alcohol production. This system integrates both brewing and distillation capabilities, making it ideal for producing a wide variety of beverages including beer, whisky, vodka, gin, and other spirits. With intelligent automation, durable construction, and user-friendly operation, it ensures high efficiency, consistency, and product quality.
Key Features:
- Capacity: 10,000 liters per batch, suitable for medium to large-scale commercial operations.
- Multi-functional Design: Enables both brewing (beer) and distillation (spirits) processes in one integrated setup.
- Complete Turnkey Solution: Includes brewhouse, fermentation tanks, distillation columns, condensers, CIP system, piping, control systems, and optional packaging equipment.
- High-quality Materials: All vessels are made from premium food-grade stainless steel (304/316) with sanitary finishes.
- Heating Methods: Supports steam, electric, or direct fire heating, adaptable to user requirements.
- Advanced Control System: PLC or semi-automatic control with touchscreen interface for easy monitoring and recipe control.
- Modular Layout: Customizable layout options to fit different space constraints and production workflows.
- Safety and Compliance: Designed in accordance with international safety and hygiene standards (CE, UL, ASME).
Applications:
Craft distilleries
Brewery-distillery hybrid facilities
Beverage R&D centers
Contract alcohol production services
General Configuration of 10000L Turnkey Multi-functional Distillery Project
Why choose Tiantai distiller
- High-Capacity, Scalable Production
Designed for medium to large-scale distilleries, the 10000L capacity ensures efficient, large-batch spirit production with consistent quality.
- Multi-Functional Design
Suitable for producing a wide range of spirits—whiskey, vodka, gin, rum, and brandy—with optional pot or column still configurations.
- Turnkey Convenience
Delivered as a complete, ready-to-operate system including mash tun, fermenters, distillation unit, CIP system, and control panel—saving time and simplifying setup.
- Premium Materials & Craftsmanship
Built with food-grade stainless steel and optional copper components for durability, heat efficiency, and optimal flavor extraction.
- Advanced Automation & Control
Equipped with intelligent PLC/PID control systems for precise monitoring of temperatures, pressures, and production stages—ensuring consistent results.
- Flexible Heating Options
Available with steam, electric, or direct fire heating to suit your energy setup and production preferences.
- Global Standards Compliance
Designed to meet international hygiene, safety, and distillation regulations—ideal for export-oriented or regulated markets.
- Expert Support & Service
Tiantai offers full technical support, remote guidance, training, and lifetime after-sales service—ensuring peace of mind from installation to operation.
- Competitive Pricing
Factory-direct pricing with no compromise on quality—maximizing your investment and operational efficiency.
About Tiantai brewtech
Tiantai is a leading manufacturer offering complete turnkey solutions for a wide range of beverage processing industries, including beer breweries, wineries, cider houses, kombucha production facilities, and fermentation systems. With years of global experience and in-house engineering expertise, Tiantai delivers customized, efficient, and scalable solutions tailored to each client’s specific production needs.
Our turnkey systems include everything from brewhouses, fermenters, bright tanks, control systems, CIP units, filtration, and packaging lines—all manufactured using high-grade stainless steel and built to meet international standards of quality, hygiene, and safety.
Whether you’re launching a craft brewery, expanding a kombucha operation, or setting up a winery or cider facility, Tiantai offers comprehensive project support—from design and fabrication to installation, commissioning, and after-sales service. Our flexible designs, automation options, and energy-efficient systems make Tiantai the preferred partner for beverage producers around the world.
Choose Tiantai to streamline your production, enhance product quality, and bring your beverage vision to life with reliability and precision.
Tiantai’s 10000L Turnkey Multi-functional Distiller Brewery is an advanced, high-capacity solution designed for professional-scale alcohol production. This system integrates both brewing and distillation capabilities, making it ideal for producing a wide variety of beverages including beer, whisky, vodka, gin, and other spirits. With intelligent automation, durable construction, and user-friendly operation, it ensures high efficiency, consistency, and product quality.
Key Features:
- Capacity: 10,000 liters per batch, suitable for medium to large-scale commercial operations.
- Multi-functional Design: Enables both brewing (beer) and distillation (spirits) processes in one integrated setup.
- Complete Turnkey Solution: Includes brewhouse, fermentation tanks, distillation columns, condensers, CIP system, piping, control systems, and optional packaging equipment.
- High-quality Materials: All vessels are made from premium food-grade stainless steel (304/316) with sanitary finishes.
- Heating Methods: Supports steam, electric, or direct fire heating, adaptable to user requirements.
- Advanced Control System: PLC or semi-automatic control with touchscreen interface for easy monitoring and recipe control.
- Modular Layout: Customizable layout options to fit different space constraints and production workflows.
- Safety and Compliance: Designed in accordance with international safety and hygiene standards (CE, UL, ASME).
Applications:
Craft distilleries
Brewery-distillery hybrid facilities
Beverage R&D centers
Contract alcohol production services
General Configuration of 10000L Turnkey Multi-functional Distillery Project
| Components | Specification |
| 10000L Copper Still Pot |
- Working Volume: 10000L (>25% Headspace avoiding overflow) - Interior Shell: TP2 Red Copper; - Exterior Shell: SUS304 stainless steel, fully welded; - Insulation: Eco-friendly rockwool, TH=60mm - Heating: Electric or Steam - Top-mounted explosion-proof motor, CE certified (Other certifications, like UL/CSA/ATEX/IECEx, are available upon special request) - Full 304 stainless steel motorized agitator inside - PT100 Temperature sensor on the side wall - Top mounted glass manhole (Logo printing available) |

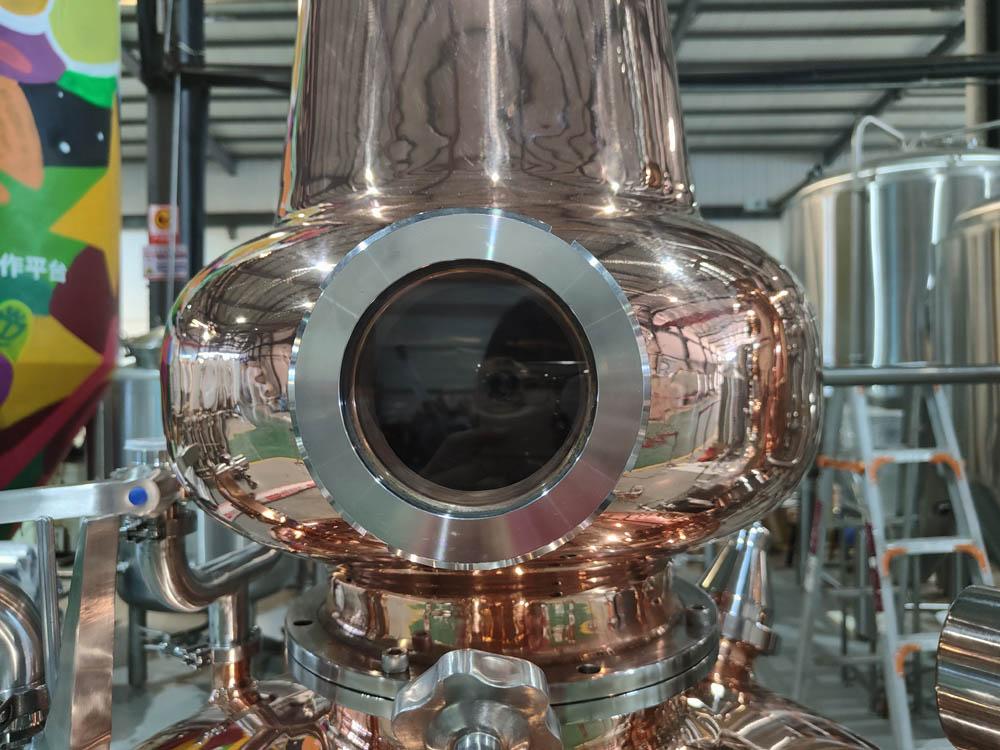

| Copper Helmet |
- TP2 Red copper; - Spherical as standard (Plain or lantern available for option) - Sight glass on the side wall for easy observation - CIP inlet with a spray ball |
| Copper Swan Neck and Lyne Arm |
- Regulate the balance of spirit and flavor substances through angle changes - TP2 Red copper; - Lyne Arm Style: Horizontal as standard (Raise or Drop available for option) |
| Dephlegmator |
- Alcohol vapor cooling reflux maintains vapor-liquid phase exchange equilibrium and improves alcohol purity - Shell-and-Tube condensor with a crown-shaped top - 304 Stainless steel shell with tube or copper - Cooling water inlet and outlet - CIP inlet with a spray ball - Side mounted bimetal thermometer |

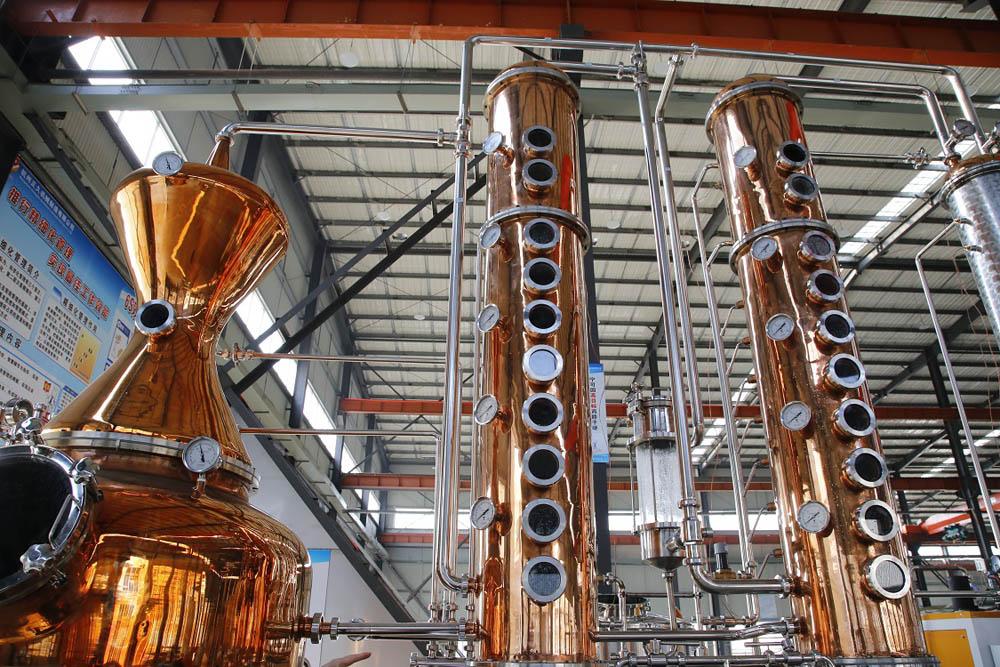

| Copper Distill Column [8 Trays] |
- Exchange of vapor phase and liquid phase to improve alcohol content - Distill Column Material: TP2 Red copper, TH=3mm - Bubble tray Numbers: 8 trays - Bubble Cap: TP2 Red copper with slit - Adjustable liquid level bar for each bubble cap tray - Sight glass for each tray chamber - CIP spray ball for each tray chamber |
| Gin Basket |
- Adding flavor substances to alcohol vapor - 304Stainless steel or copper - Quick open top lid - Sight glass on the side wall for easy observation - CIP inlet with a spray ball - Removable stainless steel filter plate basket (Copper available for special request) |
| Stainless Steel Condensor |
- Cooling spirit Style: Shell-and-Tube condensor - 304 Stainless steel tube shell or copper - Cooling water inlet and outlet - CIP inlet with a spray ball - Side mounted bimetal thermometer |
| Parrot Outlet |
- Spirit output and alcohol content test - 304 Stainless steel - With glass cover |
| Stainless Steel Alcohol Vapor Pipeline & Valves |
- Stainless steel pipe from still pot to column/gin/condensor - Stainless steel pipe from column to gin basket/condensor - Stainless steel pipe from gin basket to condensor - Stainless steel pipe from condensor to spirit receiver tanks -Stainless steel pipe from column/gin basket to still pot |
| Stainless Steel CIP Pipeline & Valves |
- Stainless steel CIP pipe for still pot with ball valve - Stainless steel CIP pipe for swan neck with ball valve - Stainless steel CIP pipe for each column bubble trays with a check valve - Stainless steel CIP pipe for gin basket with ball valve - Stainless steel CIP pipe for condensor with ball valve - CIP pump |
| Stainless Steel Spirit Receiver Tanks |
- 304 Stainless steel - Foreshots head spirit receiver tank - Middle cut spirit receiver tank - Feints receiver tank - CIP Spray ball inside each receiver tank - Sight glass level tube of each receiver tank - Exhaust valve of each receiver tank on top - Bottom drain valve of each receiver tank |
| Stainless Steel Supporting Frame |
- 304 Stainless steel platform - Perlage finish as standard or Oil brushed finish - Four stainless steel supporting foot pads |
| Stainless Steel Control Cabinet |
- Distilling control - 304 Stainless steel cover - Non-explosion-proof type as standard (Explosion-proof type or any certification required available for special request) - Instrumental panel - Wall or bracket mounting - Temperature display of still pot - Agitator on/off control - CIP pump on/off control |
Why choose Tiantai distiller
- High-Capacity, Scalable Production
Designed for medium to large-scale distilleries, the 10000L capacity ensures efficient, large-batch spirit production with consistent quality.
- Multi-Functional Design
Suitable for producing a wide range of spirits—whiskey, vodka, gin, rum, and brandy—with optional pot or column still configurations.
- Turnkey Convenience
Delivered as a complete, ready-to-operate system including mash tun, fermenters, distillation unit, CIP system, and control panel—saving time and simplifying setup.
- Premium Materials & Craftsmanship
Built with food-grade stainless steel and optional copper components for durability, heat efficiency, and optimal flavor extraction.
- Advanced Automation & Control
Equipped with intelligent PLC/PID control systems for precise monitoring of temperatures, pressures, and production stages—ensuring consistent results.
- Flexible Heating Options
Available with steam, electric, or direct fire heating to suit your energy setup and production preferences.
- Global Standards Compliance
Designed to meet international hygiene, safety, and distillation regulations—ideal for export-oriented or regulated markets.
- Expert Support & Service
Tiantai offers full technical support, remote guidance, training, and lifetime after-sales service—ensuring peace of mind from installation to operation.
- Competitive Pricing
Factory-direct pricing with no compromise on quality—maximizing your investment and operational efficiency.
About Tiantai brewtech
Tiantai is a leading manufacturer offering complete turnkey solutions for a wide range of beverage processing industries, including beer breweries, wineries, cider houses, kombucha production facilities, and fermentation systems. With years of global experience and in-house engineering expertise, Tiantai delivers customized, efficient, and scalable solutions tailored to each client’s specific production needs.
Our turnkey systems include everything from brewhouses, fermenters, bright tanks, control systems, CIP units, filtration, and packaging lines—all manufactured using high-grade stainless steel and built to meet international standards of quality, hygiene, and safety.
Whether you’re launching a craft brewery, expanding a kombucha operation, or setting up a winery or cider facility, Tiantai offers comprehensive project support—from design and fabrication to installation, commissioning, and after-sales service. Our flexible designs, automation options, and energy-efficient systems make Tiantai the preferred partner for beverage producers around the world.
Choose Tiantai to streamline your production, enhance product quality, and bring your beverage vision to life with reliability and precision.
