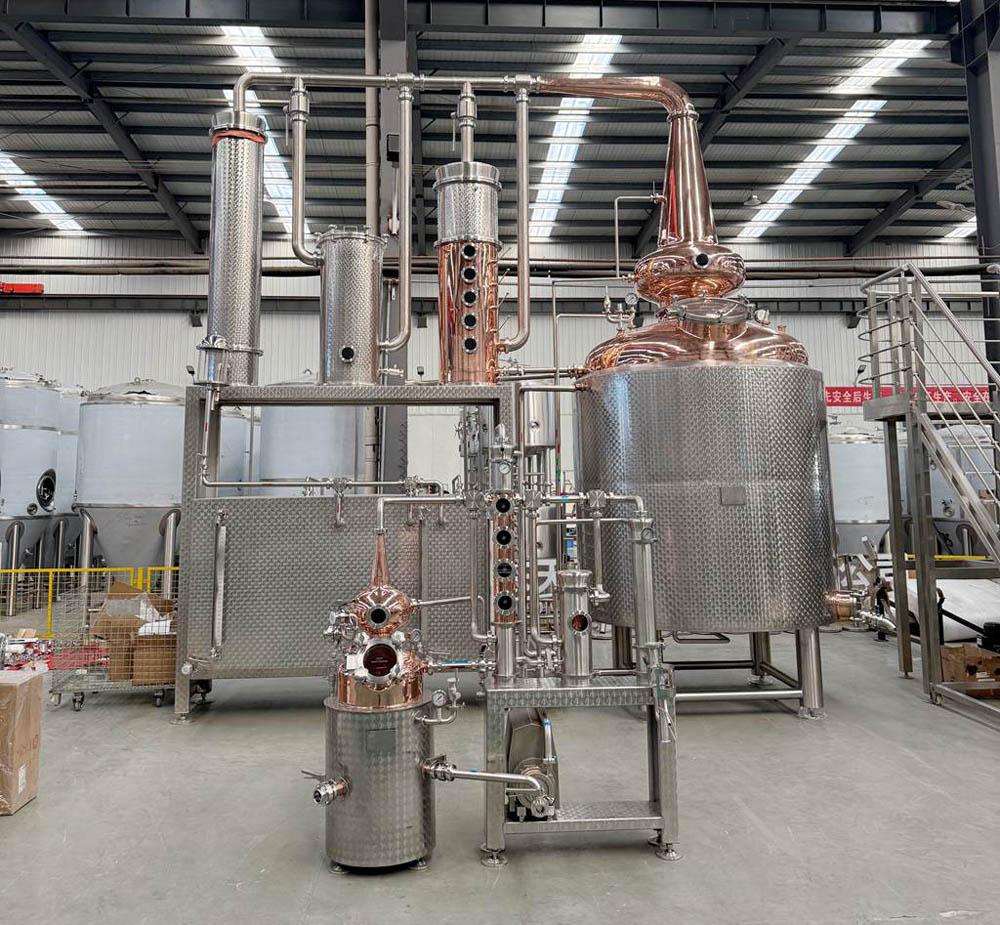

5000L Complete Grain Whisky Distillery Equipment
- May 25, 2026
- 122
- tiantai
The complete grain whisky distillery equipment is designed for the manufacture of high-quality whisky. The distillation system integrates mashing, fermentation, distillation, cooling, and control into a turnkey solution, suitable for both craft and industrial-scale production. Standard capacities range from 50L to 5000L per batch, with customised design available on request.
1. Mashing System
* Capacity: 5000 L per batch
* Material: SUS304 / SUS316 stainless steel (food-grade, polished interior)
* Heating method: Steam jacket / Electric heating / Direct fire (optional)
* Agitation: Top-mounted motor with variable speed drive
* Insulation: 80mm polyurethane for energy efficiency
* Function: Starch gelatinisation, enzymatic conversion, and wort preparation
2. Fermentation System
* Fermentation Tank volume: 5000 L each
* Configuration: Cylindroconical fermentation tanks (CCT)
* Cooling: Dimple jackets with glycol circulation
* Pressure rating: 0.2–0.3 MPa
* Standard fittings: Manway, CIP spray ball, sampling valve, pressure relief valve
* Function: Controlled fermentation for consistent alcohol yield and flavour

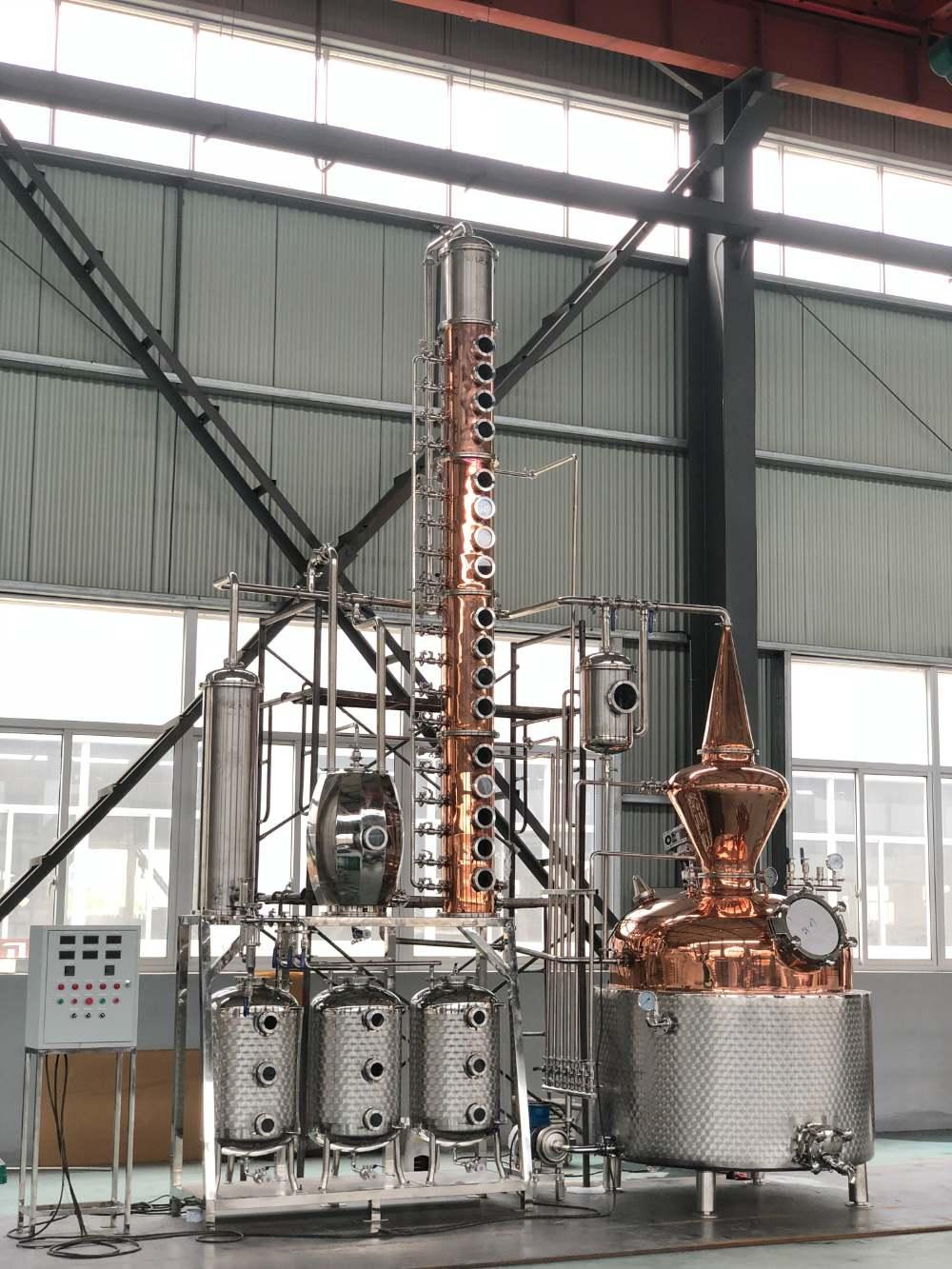

3. Distillation System
* Pot still: 5000 L copper or stainless steel
* Distillation column: Copper with bubble plates or sieve plates
* Dephlegmator: Stainless steel with reflux regulation
* Condenser: Shell-and-tube or coil type
* Spirit receivers: Dedicated tanks for heads, hearts, and tails
* Function: High-quality separation of spirit fractions with precise reflux control
4. Cooling System
* Chiller capacity: 40HP
* Medium: Food-grade glycol-water mixture
* Temperature range: -5°C to +25°C
* Function: Provides stable cooling for fermentation and condensation processes
5. Control System
* Control type: PLC touch screen / Semi-automatic / Manual (optional)
* Key functions:
- Temperature monitoring and regulation
- Distillation reflux ratio adjustment
- Pump and agitator control
- Process data recording (optional)
Main Features
* Integrated turnkey solution covering the full production cycle
* Customisable capacity from small-scale to commercial production
* Constructed from premium stainless steel and copper
* Energy-efficient with advanced insulation and heat exchange design
* Easy maintenance with CIP cleaning system
* Designed and manufactured in compliance with CE / ISO standards
Example Configuration – 5000L Distillery
* 5000L mashing & lautering unit
* 4 × 5000L fermenters
* 5000L copper pot still with 4-plate column
* 40HP glycol chiller
* Semi-automatic control system
Note: Technical specifications can be customised according to specific production requirements.
