500L Hybrid Distillation Equipment for Craft Spirits
- Dec 12, 2025
- 186
- tiantai

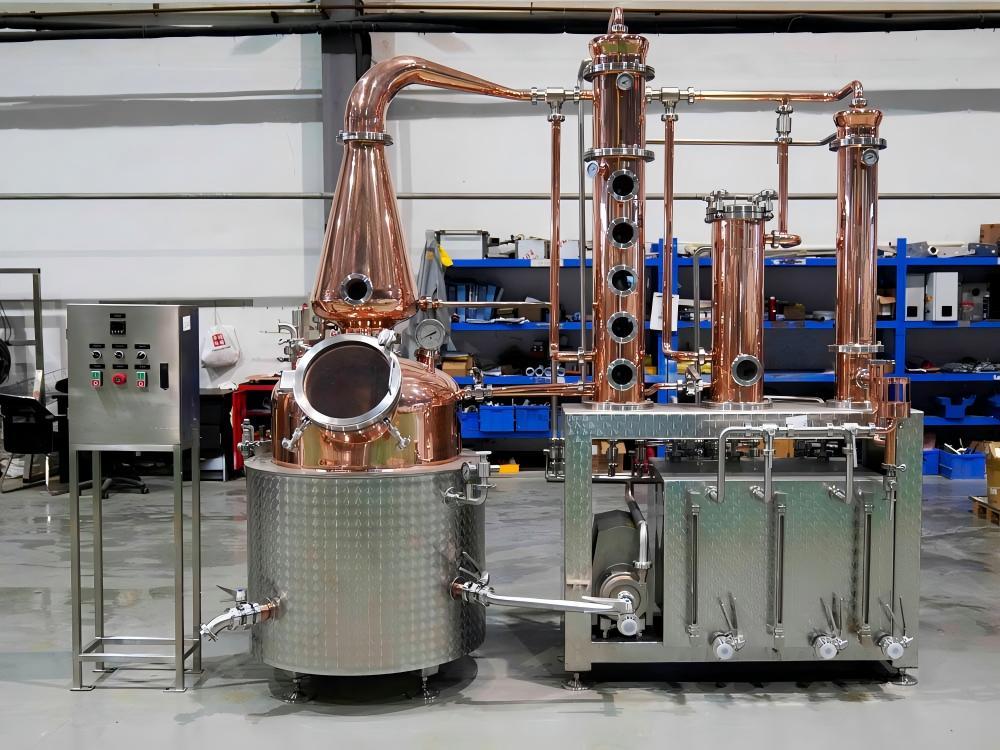

The 500L hybrid distillation system is designed for craft spirit producers who require flexibility and premium distillation performance.

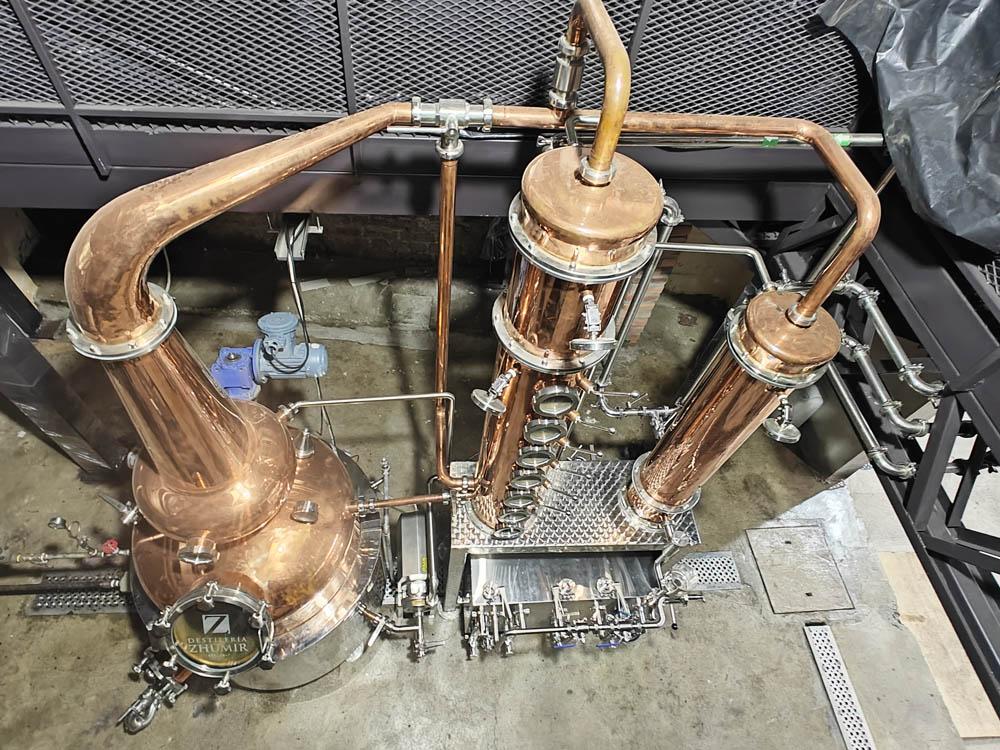

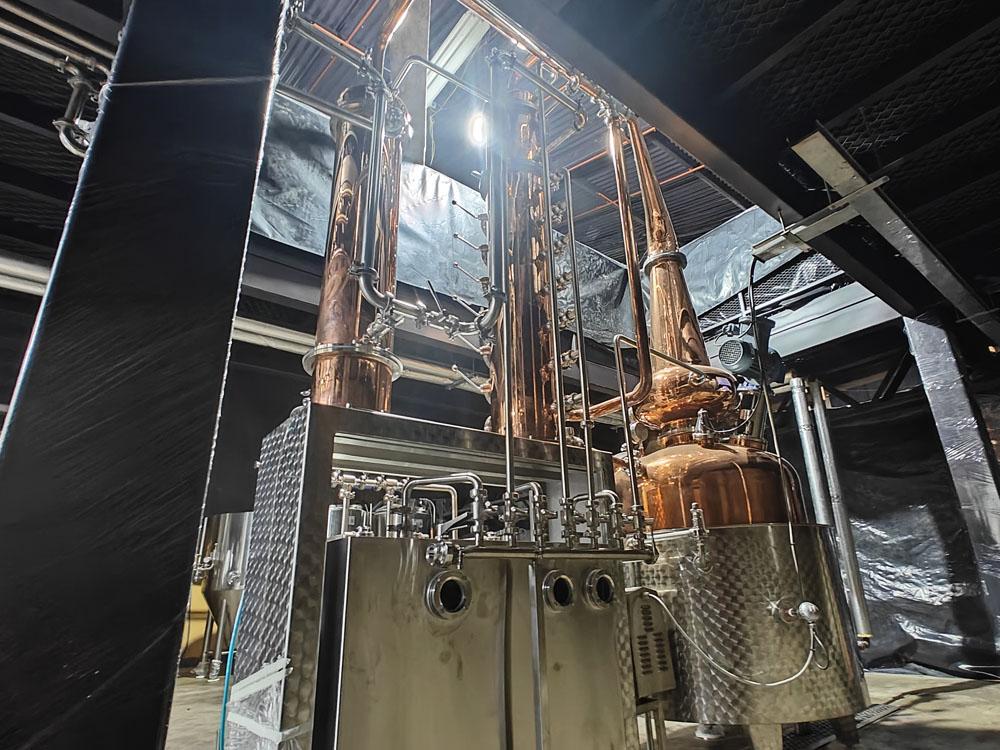

This equipment combines a copper pot still with a column section, allowing both traditional rich-flavor distillation and high-purity rectification in one system.
The copper pot still helps remove sulfur compounds and enhances aroma, making it ideal for producing spirits with deep character.
When higher purity alcohol is required, the column section provides efficient multi-plate rectification.
For producing flavor-forward spirits — such as whisky, rum, brandy, tequila or agave spirits — the column can be bypassed,
allowing the vapor to go directly from the pot to the condenser, preserving full body and natural congeners.
allowing the vapor to go directly from the pot to the condenser, preserving full body and natural congeners.
For neutral or light-flavor spirits like vodka or gin, the rectification column can be engaged to achieve a cleaner, smoother spirit.
Optional gin basket allows you to easily produce vapor-infused botanical spirits.
Built in food-grade stainless steel with copper contact surfaces, the system offers excellent durability, heat transfer, and spirit polishing performance.
Features
Specifications
Our service
We are committed to providing reliable solutions for your distillation project.

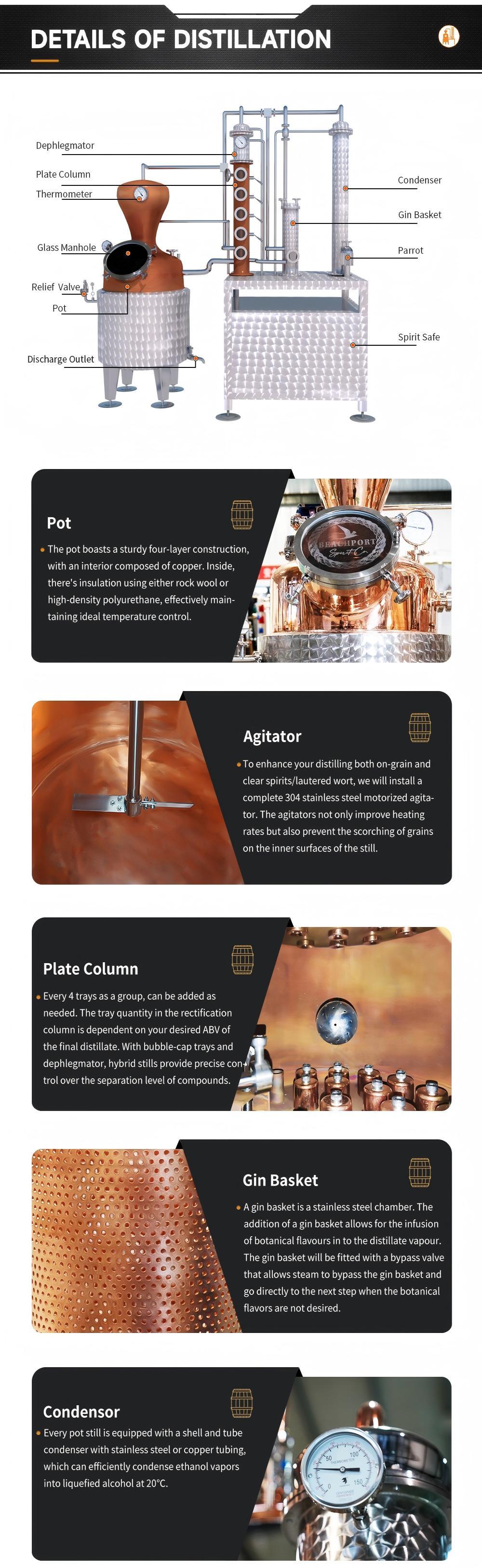

-500L copper pot still with stainless steel exterior
-Electric heating system (steam optional)
-Fully insulated body with TIG welding
-Copper helmet + swan neck + lyne arm
-Copper distillation column with 4 bubble trays
-Built-in dephlegmator for higher purity
-Gin basket for botanical infusion
-Shell-and-tube condenser for fast cooling
-Parrot outlet for alcohol reading
Full CIP cleaning pipeline
Stainless steel platform and control cabinet
Specifications
| Item | Key Specs |
| Still Pot | 500L working volume, copper inside / SS304 outside, electric 45kW heating |
| Helmet | Copper, spherical design, side sight glass |
| Swan Neck & Lyne Arm | Copper, horizontal type |
| Dephlegmator | Stainless steel shell, tube inside, Ø300mm |
| Distillation Column | Copper, 4 bubble trays with sight glasses |
| Gin Basket | SS304, Ø300mm, quick-open lid |
| Condenser | Shell-and-tube, Ø250mm |
| Parrot | Stainless steel, with alcohol meter |
| Pipelines | Vapor pipelines + CIP pipelines included |
| Control Cabinet | SS304, non-explosion-proof type, basic controls |
| Platform | Stainless steel frame with foot pads |
| Optional Tanks | 100L / 150L / 200L spirit receiver tanks |
Our service
Tiantai Brewtech, professional distillation equipment manufacturer and service provider.
We provide customized, one-stop service, project planning and design services, free consultation services before, during and after sale.
-Free consultation service before, during, and after sales.
-Project planning and design services.
-Management of equipments' long distance shipping from seller's factory to named port or station by buyer.
-Training of equipment maintenance and operating personally.
-Built-in advanced temperature control
-The tank body is well sealed
For more information, customization options, or technical support, please reach out to our team.
We are committed to providing reliable solutions for your distillation project.
Edited by Amanda
Sales manager of Tiantai brewtech
Email: [email protected]
