300L Hybrid Distillation Equipment for Craft Spirits
- Nov 28, 2025
- 137
- tiantai
The 300L hybrid distillation system is a versatile and efficient solution for small to medium-sized craft distilleries.
It combines the traditional copper pot still with a modern stainless steel rectification column, achieving both rich flavor retention and high alcohol purity.
This hybrid design allows distillers to produce a wide variety of spirits — including gin, whiskey, vodka, rum, brandy, and other fruit-based spirits — with precise control over the distillation process.
The copper pot helps remove sulfur compounds and enhances aroma, while the stainless steel column ensures durability, easy cleaning, and stable operation.
Equipped with sight glasses, CIP cleaning system, cooling condenser, and advanced temperature and pressure control, this setup offers both reliability and craft-level flexibility.
Features
Flexible capacity
suitable for small and medium scale production, to meet commercial needs, while taking into account the use of home brewing enthusiasts.
Features
Hybrid distillation technology
Combined with the advantages of pot distillation and column distillation, the distillation mode can be flexibly switched according to demand, which is suitable for a variety of alcohol and essential oil extraction.
Pot distillation mode: retain the original flavor of raw materials, suitable for whiskey, brandy and so on.
Column distillation mode: improve the purity of alcohol, suitable for vodka, liquor and so on.
Pot distillation mode: retain the original flavor of raw materials, suitable for whiskey, brandy and so on.
Column distillation mode: improve the purity of alcohol, suitable for vodka, liquor and so on.
High quality material
The main body is made of 304 food grade stainless steel, corrosion-resistant, easy to clean, in line with food safety standards.
Flexible capacity
suitable for small and medium scale production, to meet commercial needs, while taking into account the use of home brewing enthusiasts.
Hybrid distillation technology
Combined with the advantages of pot distillation and column distillation, the distillation mode can be flexibly switched according to demand, which is suitable for a variety of alcohol and essential oil extraction.
Pot distillation mode: retain the original flavor of raw materials, suitable for whiskey, brandy and so on.
Column distillation mode: improve the purity of alcohol, suitable for vodka, liquor and so on.
Pot distillation mode: retain the original flavor of raw materials, suitable for whiskey, brandy and so on.
Column distillation mode: improve the purity of alcohol, suitable for vodka, liquor and so on.
High quality material
The main body is made of 304 food grade stainless steel, corrosion-resistant, easy to clean, in line with food safety standards.
Contact us for:
Specifications
| Section | Specification |
| Capacity | 300L |
| Interior Shell | TP2 Red Copper, TH=3mm |
| Exterior Shell | SUS304 Stainless Steel, Fully Welded, TH=2mm |
| Insulation | Eco-friendly Rockwool, TH=60mm |
| CIP | CIP ball installed inside pot |
| Helmet | |
| Material | TP2 Red Copper |
| Thickness | 3mm |
| Shape | Spherical (Lantern optional) |

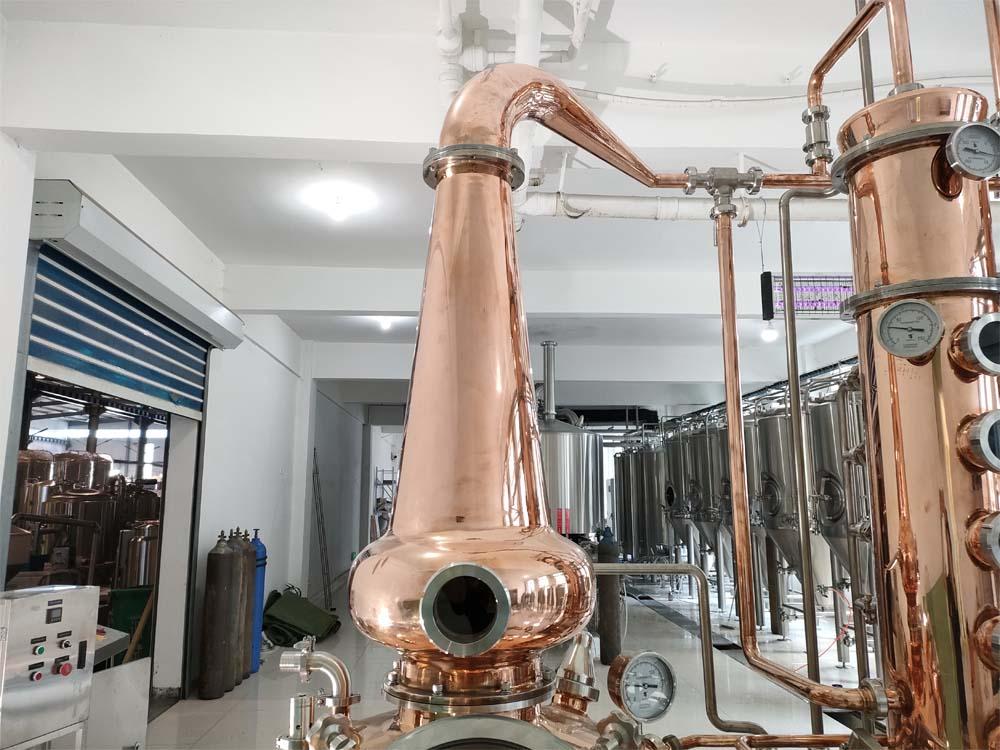

| Swan Neck & Lyne Arm | |
| Material | TP2 Red Copper |
| Thickness | 3mm |
| Design | Smooth curved lyne arm |
| Dephlegmator | |
| Diameter | Φ250mm |
| Thickness | 3mm |
| Material | SUS304 Stainless Steel Shell with Internal Tubes |
| Distillation Column | |
| Column Material | TP2 Red Copper |
| Thickness | 3mm |
| Column Diameter | Φ250mm |
| Bubble Trays | Copper trays, Φ250mm |
| Gin Basket | |
| Material | SUS304 Stainless Steel |
| Diameter | Φ250mm |
| Thickness | 3mm |
| Condenser | |
| Diameter | Φ203mm |
| Material | SUS304 Stainless Steel Tube Shell |
Contact us for:
-A Detailed Project Quotation
-Factory Layout Planning Support
-Technical Specifications Sheet
