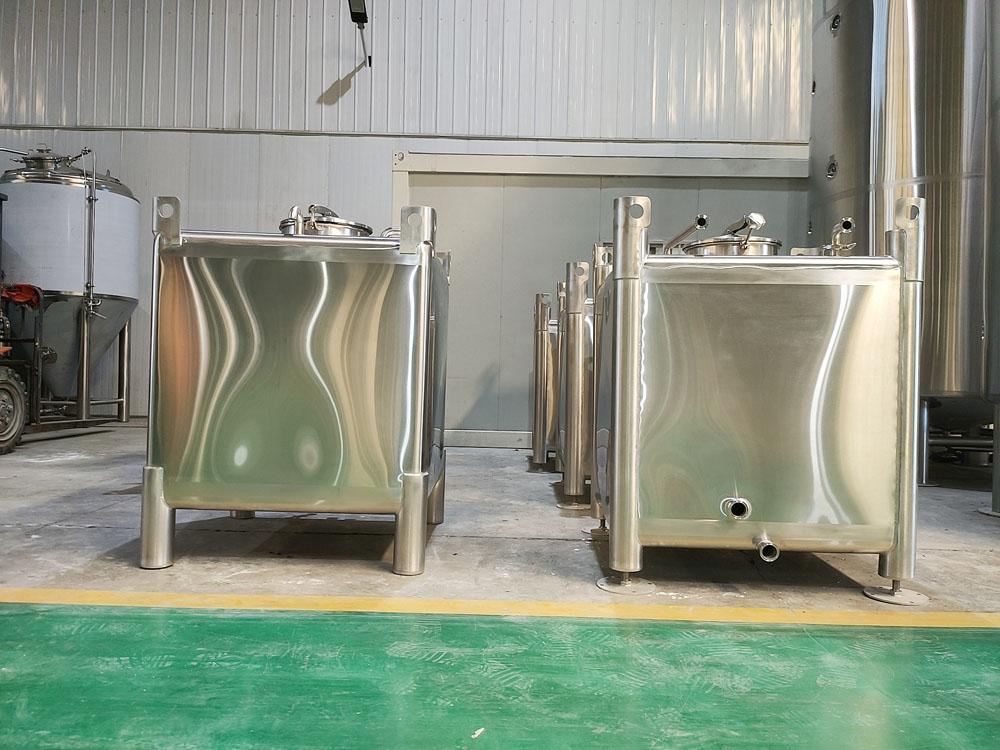

1000L Spirits Storage Tank
- Aug 16, 2024
- 64
- tiantai
♦ Tank Capacity: 1000L (+15% Headspace minimum)
♦ Tank Shell: SUS304 full welded; TH=1.5-2mm
♦ 100% TIG welding with pure argon gas shield
♦ Interior Finish: Sanitary 2B finish, Pickled and Passivated
♦ Exterior Finish: Oil brushed finish
♦ Interior full polished to 0.2~0.4 μm without dead corner
♦ Tank Working Pressure: atmospheric pressure
♦ Sanitary Top mounted manhole with door
♦ Top mounted double clamp 360° rotary CIP spraying ball and port
♦ With recirculation port on top via a TC fitting
♦ Sanitary level tube and valves
♦ Discharge arm with butterfly valve, Removable and easy to clean
♦ 4pcs completely SUS304 legs with braces
♦ 4 sets heavy duty foot pad
♦ Complete valves, fittings and all parts, Tri clamp/DIN Union available
