Glycol Chilling System
The glycol cooling system includes stainless steel insulated glycol water tank, chiller with freon as refrigerant and glycol water recycle piping. The glycol water tank is used to contain the liquid mixed with city water and glycol which freezing point will be as low as 5 to 7 degree below zero.

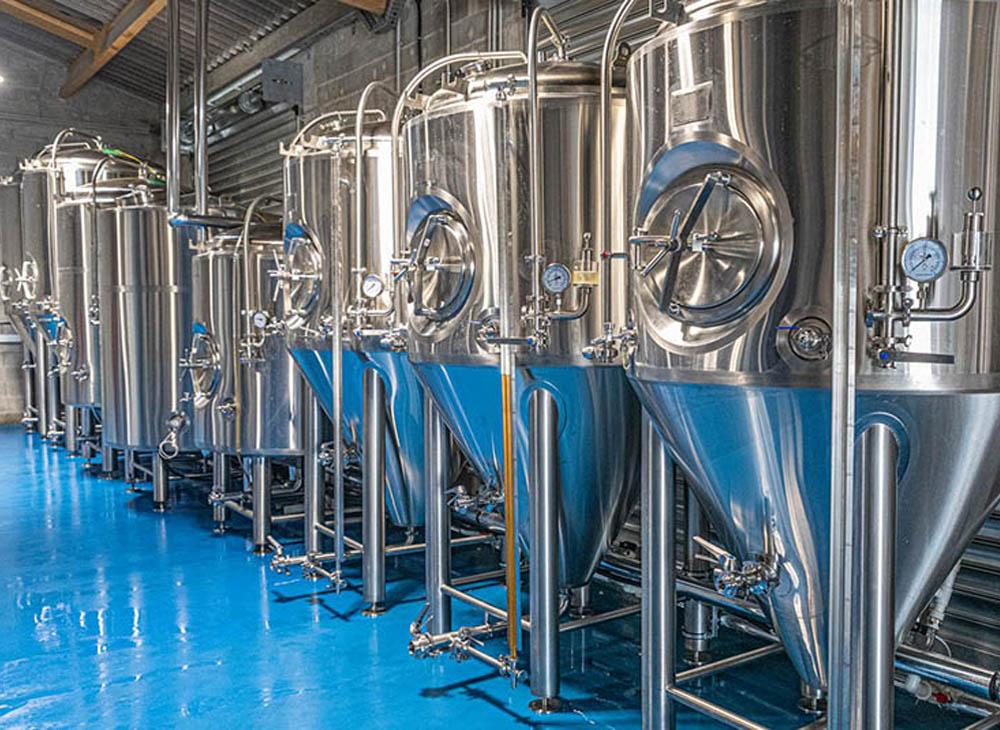

Flowing along with the glycol piping, cooled glycol liquid on one side will be supplied to cool the hot wort to fermentable temperature through the heat exchanger, and the other side will flow into the glycol jacket in fermentation tanks or bright tanks to keep a request temperature.
Brewery glycol cooling systems are various in size on base of the volume of batch wort, volume and quantity of fermentation tank and bright tanks etc.
Some of the brewery cooling systems may have a cold liquor/water tank specially for wort cooling.
.jpg)
.jpg)
.jpg)
The glycol cooling system includes stainless steel insulated glycol water tank, chiller with freon as refrigerant and glycol water recycle piping. The glycol water tank is used to contain the liquid mixed with city water and glycol which freezing point will be as low as 5 to 7 degree below zero.
Flowing along with the glycol piping, cooled glycol liquid on one side will be supplied to cool the hot wort to fermentable temperature through the heat exchanger, and the other side will flow into the glycol jacket in fermentation tanks or bright tanks to keep a request temperature.
Brewery glycol cooling systems are various in size on base of the volume of batch wort, volume and quantity of fermentation tank and bright tanks etc.
Some of the brewery cooling systems may have a cold liquor/water tank specially for wort cooling.
| 1hl-15hl brewery cooling plant | Glycol water tank |
| Chiller | |
| Pumps&fittings | |
| Plate heat exchanger | |
| 20hl-50hl brewery cooling plant | Glycol water tank |
| Chiller | |
| Cold liquor tank | |
| Pumps&fittngs | |
| Plate heat exchanger |
